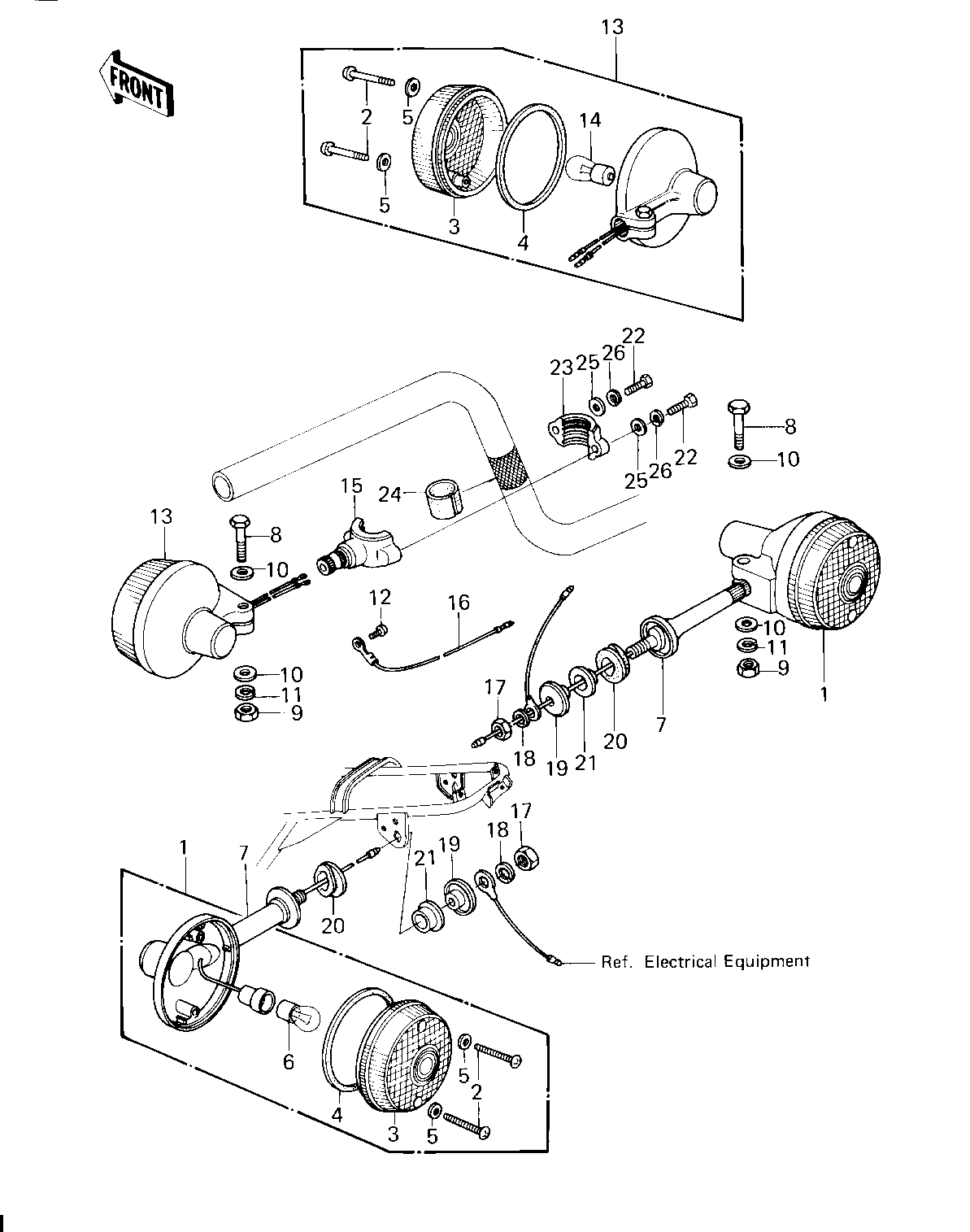

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP,TURN SIGNAL | 1 | 23040-054 | 2 | ||
SCREW-PAN HEAD,4X20 | 2 | 220E0420A | 8 | ||
LENS,TURN SIGNAL LAMP | 3 | 23048-1001 | 4 | ||
GASKET-SIG LAMP LENS | 4 | 23050-003 | 4 | ||
WASHER-PLAIN,4MM | 5 | 23058-002 | 8 | ||
BULB 12V 32CP | 6 | 92069-055 | 2 | ||
BRACKET,TURN SIGNAL.L | 7 | 23051-053 | 2 | ||
BOLT-UPSET | 8 | 112G0630 | 4 | ||
NUT 6MM | 9 | 311B0600 | 4 | ||
WASHER PLAIN 6MM | 10 | 411B0600 | 8 | ||
WASHER SPRING 6MM | 11 | 461F0600 | 4 | ||
SCREW PAN HEAD 3X5 | 12 | 220B0305A | 2 | ||
LAMP,FRNT,TURN SIGNAL | 13 | 23040-1004 | 2 | ||
BULB,12V 23/8W | 14 | 92069-060 | 2 | ||
BRACKET,FRNT TURN SIG | 15 | 23051-1004 | 2 | ||
WIRE-TURN SIGNAL LEAD | 16 | 26011-061 | 2 | ||
NUT 10MM | 17 | 315B1000 | 2 | ||
WASHER SPRING 10MM | 18 | 461F1000 | 2 | ||
COLLAR | 19 | 92027-147 | 2 | ||
DAMPER RUBBER | 20 | 92075-128 | 2 | ||
DAMPER RUBBER,SIG LM | 21 | 92075-158 | 2 | ||
BOLT | 22 | 110N0516 | 4 | ||
BRACKET,SIGNAL LAMP | 23 | 23051-1013 | 2 | ||
DAMPER RUBBER | 24 | 23066-003 | 2 | ||
WASHER-PLAIN,5MM | 25 | 410D0500 | 4 | ||
WASHER SPRING 5MM | 26 | 461F0500 | 4 |
LAMP,TURN SIGNAL | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN HEAD,4X20 | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
LENS,TURN SIGNAL LAMP | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET-SIG LAMP LENS | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,4MM | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BULB 12V 32CP | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,TURN SIGNAL.L | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 3X5 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP,FRNT,TURN SIGNAL | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 23/8W | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,FRNT TURN SIG | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WIRE-TURN SIGNAL LEAD | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT 10MM | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,SIG LM | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET,SIGNAL LAMP | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,5MM | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
