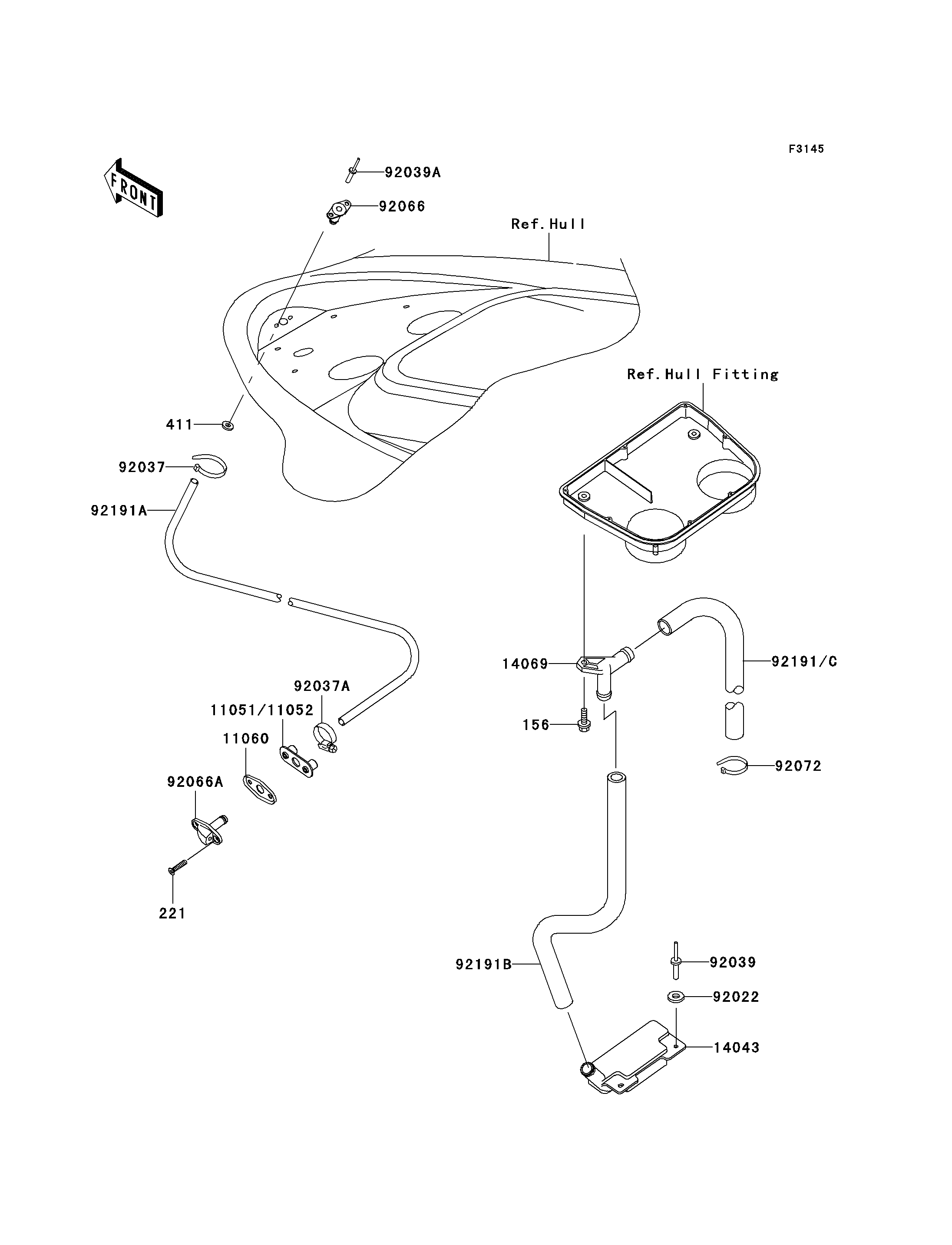

Parts Diagrams |
156
221
411
11051
11060
14043
14069
92022
92037
92037A
92039
92039A
92066
92066A
92072
92191A
92191B
92191C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WP,6X18 | 156 | 156R0618 | 1 | ||
| SCREW-CSK-CROSS,5X25 | 221 | 221R0525 | 2 | ||
| WASHER-PLAIN,5MM | 411 | 411S0500 | 2 | ||
| BRACKET | 11051 | 11051-3711 | 1 | ||
| GASKET | 11060 | 11060-3798 | 1 | ||
| FILTER | 14043 | 14043-3710 | 1 | ||
| BREATHER | 14069 | 14069-3708 | 1 | ||
| WASHER,5X16X1.5 | 92022 | 92022-3041 | 2 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| CLAMP | 92037A | 92037-3726 | 1 | ||
| RIVET | 92039 | 92039-3714 | 2 | ||
| RIVET | 92039A | 92039-3747 | 2 | ||
| PLUG | 92066 | 92066-3766 | 1 | ||
| PLUG | 92066A | 92066-3767 | 1 | ||
| BAND,L=201 | 92072 | 92072-3778 | 1 | ||
| TUBE,10X13X600 | 92191A | 92191-3862 | 1 | ||
| TUBE | 92191B | 92191-3883 | 1 | ||
| TUBE,15.88X22.24X570 | 92191C | 92191-3896 | 1 |
