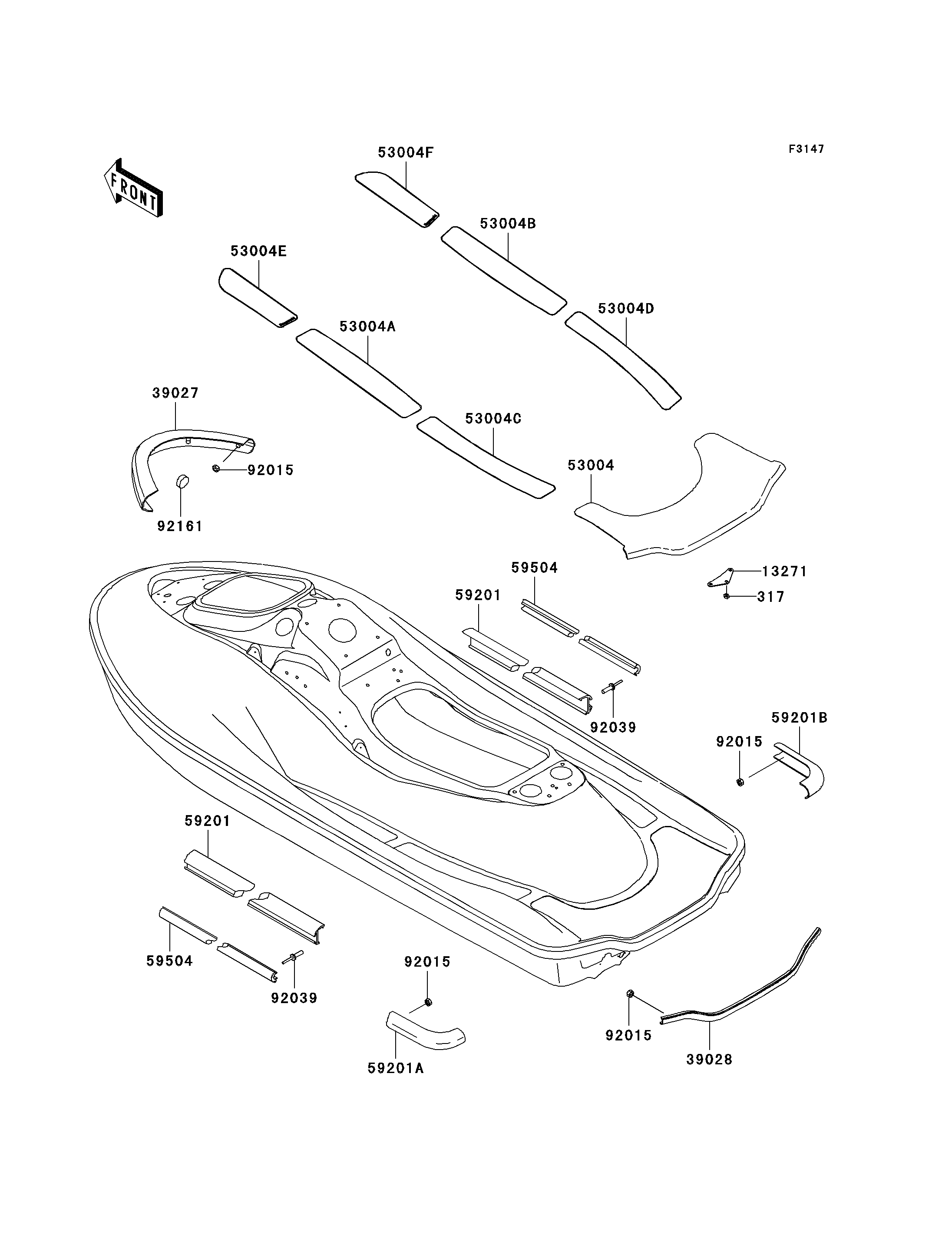

1999 Ultra 150 - Pads(JH1200-A1)

DOWNLOAD PDF
SELECT A NEW PART
317
13271
39027
39028
53004
53004A
53004B
53004C
53004D
53004E
53004F
59201
59201
59201A
59201B
59504
59504
92015
92015
92015
92015
92039
92039
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL 317 317R0800 3
PLATE 13271 13271-3729 1
BUMPER-FRONT,R.BLACK 39027 39027-3738-6S 1
BUMPER-REAR,R.BLACK 39028 39028-3743-6S 1
MAT,RR,R.BLACK 53004 53004-3792-6S 1
MAT,FR,LH,S.GRAY 53004A 53004-3793-RG 1
MAT,FR,RH,S.GRAY 53004B 53004-3794-RG 1
MAT,RR,LH,S.GRAY 53004C 53004-3795-RG 1
MAT,RR,RH,S.GRAY 53004D 53004-3796-RG 1
MAT,LH,S.GRAY 53004E 53004-3798-RG 1
MAT,RH,S.GRAY 53004F 53004-3799-RG 1
BUMPER,SIDE,R.BLACK 59201 59201-3773-6S 2
BUMPER,CORNER,LH,R.BLACK 59201A 59201-3774-6S 1
BUMPER,CORNER,RH,R.BLACK 59201B 59201-3775-6S 1
INSERT-BOAT FENDER,R.BLACK 59504 59504-3719-6S 2
NUT,LOCK,5MM 92015 92015-3798 16
RIVET 92039 92039-3771 24
DAMPER 92161 92161-3710 1
