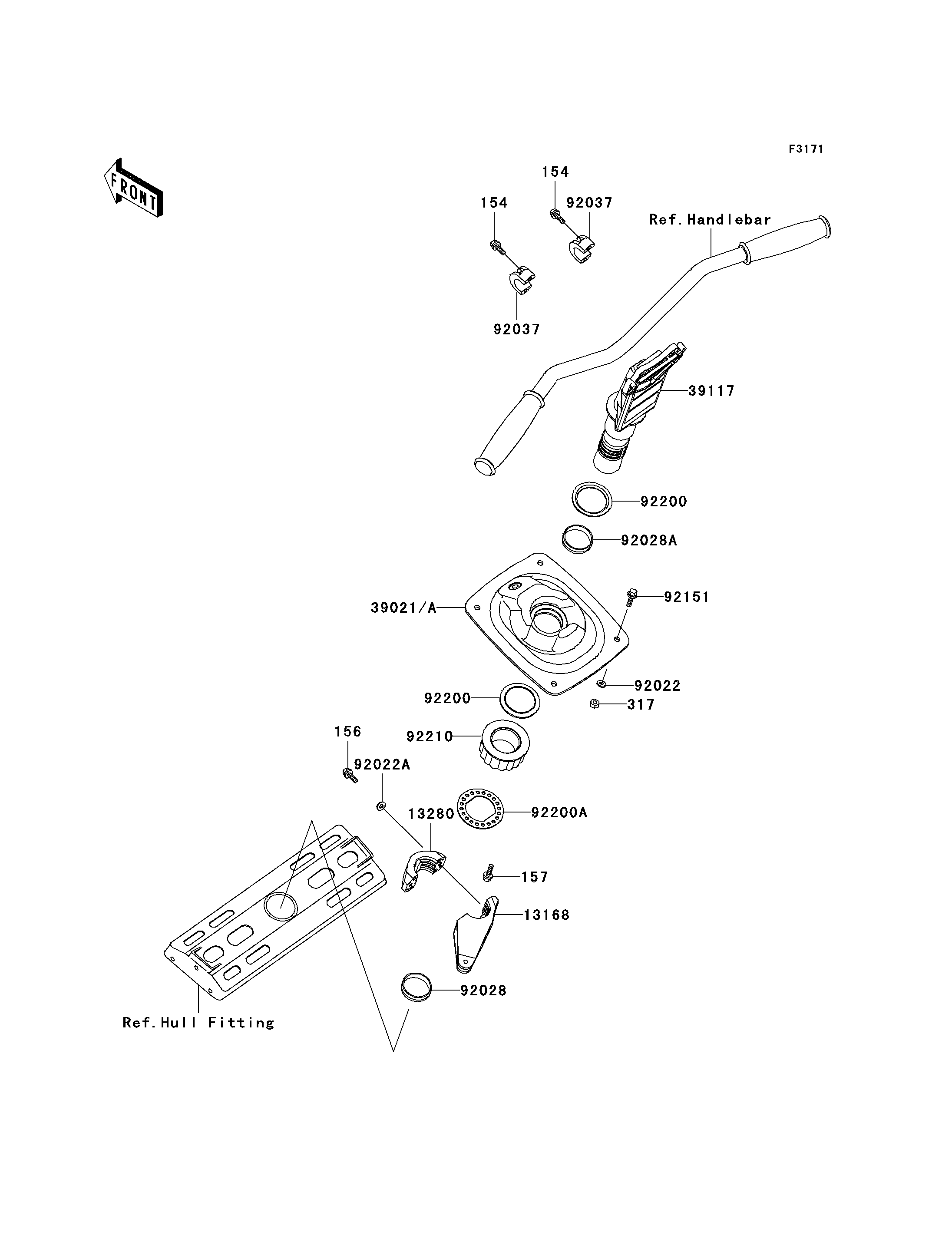

2000 Ultra 150 - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
154
154
156
157
317
13168
13280
39021
39117
92022
92022A
92028
92028A
92037
92037
92151
92200
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP-SMALL,8X30 154 154R0830 4
BOLT-WP,6X25 156 156R0625 2
BOLT-WSP,5X18 157 157R0518 2
NUT-HEX-SMALL 317 317R0800 4
LEVER 13168 13168-3741 1
HOLDER 13280 13280-3709 1
BRACKET-HANDLE POLE 39021 39021-3709 1
SHAFT-STRG 39117 39117-3712 1
WASHER,8.4X23X2.5 92022 92022-3744 4
WASHER 92022A 92022-567 2
BUSHING 92028 92028-3761 1
BUSHING 92028A 92028-3764 1
CLAMP,HANDLEBAR 92037 92037-503 2
BOLT,8X30 92151 92151-3771 4
WASHER 92200 92200-3756 2
WASHER 92200A 92200-3759 1
NUT 92210 92210-3732 1
