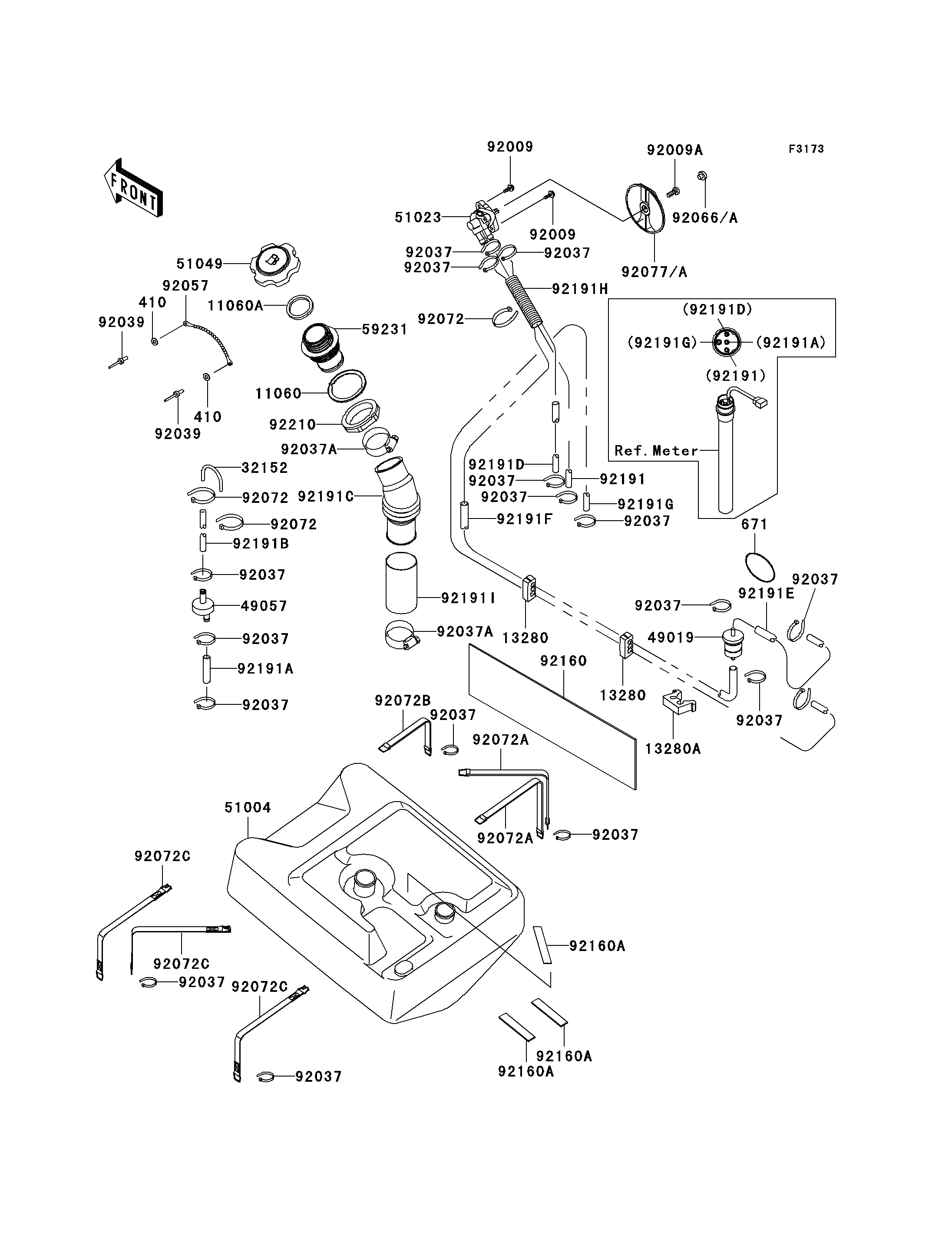

2000 Ultra 150 - Fuel Tank(JH1200-A1/A2/A3)
410
410
671
11060
11060A
13280
13280
13280A
32152
49019
49057
51004
51023
51049
59231
92009
92009
92009A
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92039
92039
92057
92066A
92072
92072
92072
92072A
92072A
92072B
92072C
92072C
92072C
92077A
92160
92160A
92160A
92160A
92191
92191A
92191B
92191C
92191D
92191E
92191F
92191G
92191H
92191I
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| W-PLAIN-S,3MM | 410 | 410S0300 | 2 | ||
| O RING,65MM | 671 | 671B2565 | 1 | ||
| GASKET,FUEL-FILLER | 11060 | 11060-3780 | 1 | ||
| GASKET,FUEL-CAP | 11060A | 11060-3790 | 1 | ||
| HOLDER | 13280 | 13280-3703 | 2 | ||
| HOLDER,FUEL FILTER | 13280A | 13280-3705 | 1 | ||
| PIPE | 32152 | 32152-3705 | 1 | ||
| FILTER-FUEL | 49019 | 49019-3712 | 1 | ||
| VALVE-RELIEF | 49057 | 49057-3001 | 1 | ||
| TANK-FUEL | 51004 | 51004-3729 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-3729 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-3722 | 1 | ||
| FILLER | 59231 | 59231-3723 | 1 | ||
| SCREW,5X16 | 92009 | 92009-3789 | 2 | ||
| SCREW,4X12 | 92009A | 92009-3838 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 17 | ||
| CLAMP | 92037A | 92037-3738 | 2 | ||
| RIVET,3.2X8 | 92039 | 92039-3763 | 2 | ||
| CHAIN,L=250 | 92057 | 92057-3708 | 1 | ||
| PLUG,FUEL&CHOKE KNOB,F.BLACK | 92066A | 92066-3755-6Z | 1 | ||
| BAND,L=201 | 92072 | 92072-3778 | 3 | ||
| BAND | 92072A | 92072-3845 | 2 | ||
| BAND | 92072B | 92072-3846 | 1 | ||
| BAND | 92072C | 92072-3847 | 3 | ||
| KNOB,FUEL&CHOKE,F.BLACK | 92077A | 92077-3730-6Z | 1 | ||
| DAMPER | 92160 | 92160-3839 | 1 | ||
| DAMPER | 92160A | 92160-3840 | 3 | ||
| TUBE,5.8X10.8X400 | 92191 | 92191-3825 | 1 | ||
| TUBE,5.8X10.8X100 | 92191A | 92191-3828 | 1 | ||
| TUBE,5.8X10.8X570 | 92191B | 92191-3829 | 1 | ||
| TUBE,FUEL TANK-FILLER | 92191C | 92191-3851 | 1 | ||
| TUBE,5.8X10.8X400 | 92191D | 92191-3853 | 1 | ||
| TUBE,FILTER-CAB | 92191E | 92191-3886 | 1 | ||
| TUBE,TAP-FILTER | 92191F | 92191-3887 | 1 | ||
| TUBE,CAB-TANK | 92191G | 92191-3888 | 1 | ||
| TUBE | 92191H | 92191-3889 | 1 | ||
| TUBE,86X89X150 | 92191I | 92191-3890 | 1 | ||
| NUT,FILLER | 92210 | 92210-3751 | 1 |
