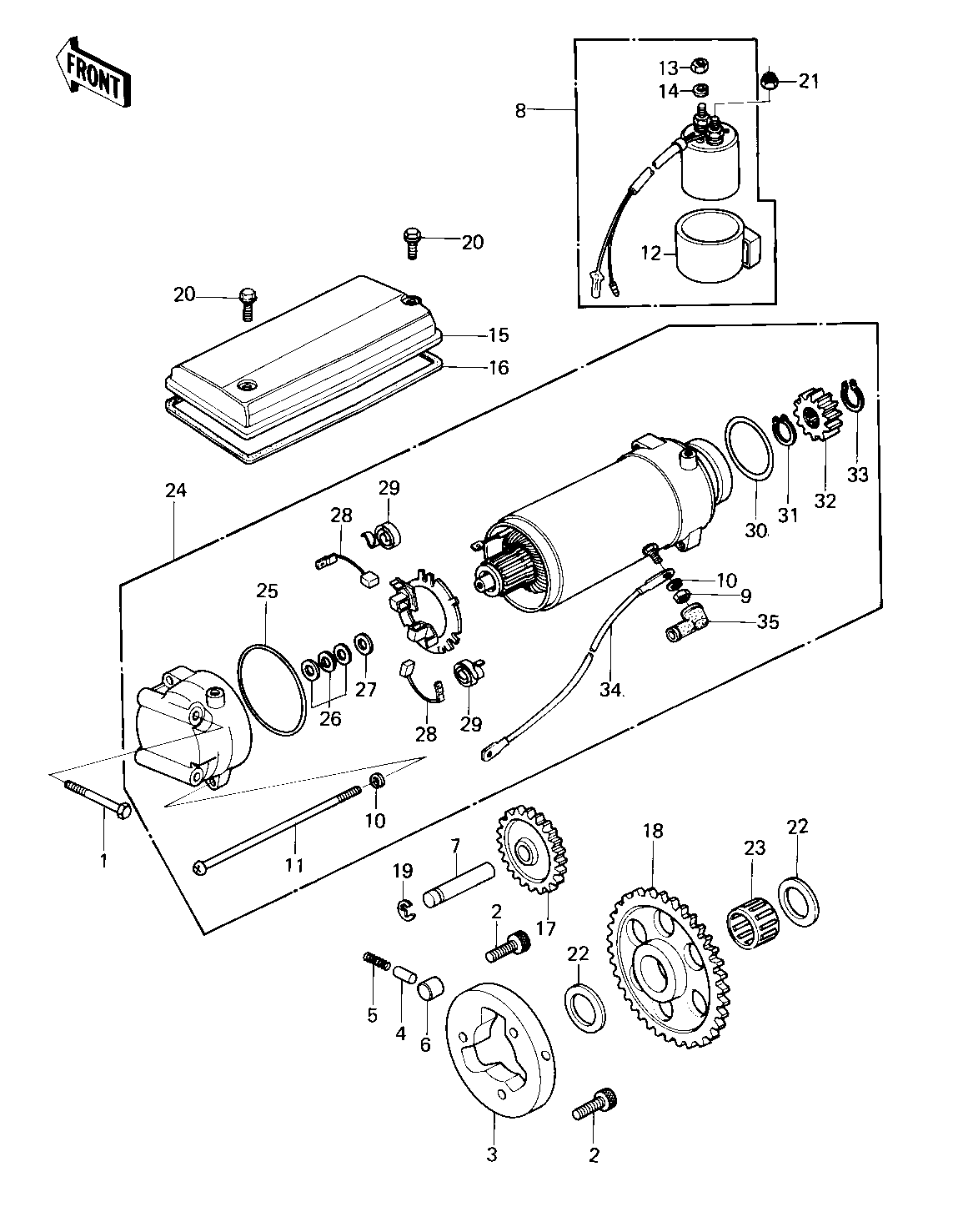

1980 KZ750-E1 - STARTER MOTOR/STARTER CLUTCH ('80 KZY 50
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET | 1 | 112G0660 | 2 | ||
BOLT,SOCKET,8X12 | 2 | 120P0812 | 3 | ||
CLUTCH-ASSY-ONEWAY | 3 | 13193-1012 | 1 | ||
PIN | 4 | 92043-087 | 3 | ||
SPRING | 5 | 92081-110 | 3 | ||
ROLLER | 6 | 92122-004 | 3 | ||
SHAFT,IDLE GEAR | 7 | 21143-003 | 1 | ||
SWITCH ASSY,MAGNETIC | 8 | 21164-005 | 1 | ||
NUT 6MM | 9 | 312B0600 | 2 | ||
WASHER SPRING 6MM | 10 | 461F0600 | 4 | ||
SCREW,PAN HEAD,6X130 | 11 | 21099-006 | 2 | ||
DAMPER MAG SWITCH SHK | 12 | 21064-002 | 1 | ||
NUT 6MM | 13 | 312B0600 | 1 | ||
WASHER SPRING 6MM | 14 | 461F0600 | 1 | ||
COVER,STARTER | 15 | 21165-003 | 1 | ||
GASKET,STARTER COVER | 16 | 21166-003 | 1 | ||
GEAR,IDLE,29T | 17 | 21167-004 | 1 | ||
SPROCKET,STARTER,58T | 18 | 12046-1032 | 1 | ||
CIRCLIP 12MM | 19 | 482K0200 | 1 | ||
BOLT,6X10 | 20 | 92001-1151 | 2 | ||
NUT,LOCK 6MM | 21 | 92017-014 | 1 | ||
SPACER,25X36X3.2 | 22 | 92026-1025 | 2 | ||
BRG,NEEDLE,K253017 | 23 | 92046-056 | 1 | ||
STARTER-ELECTRIC | 24 | 21163-1190 | 1 | ||
"0" RING,62MM | 25 | 21027-006 | 1 | ||
WASHER,THRUST,0.2T | 26 | 21025-011 | AR | ||
WASHER,THRUST,1.6T | 27 | 21025-010 | 1 | ||
CARBON BRUSH | 28 | 21039-003 | 2 | ||
SPRING,CARBON BRUSH | 29 | 21040-003 | 2 | ||
"0" RING,40M/M | 30 | 21027-008 | 1 | ||
CIRCLIP | 31 | 92033-034 | 1 | ||
PINION,STARTER | 32 | 21053-004 | 1 | ||
CIRCLIP,13M/M | 33 | 92033-037 | 1 | ||
WIRE,STARTER MOTOR | 34 | 26011-1081 | 1 | ||
GROMMET,CORD | 35 | 21017-017 | 1 |
