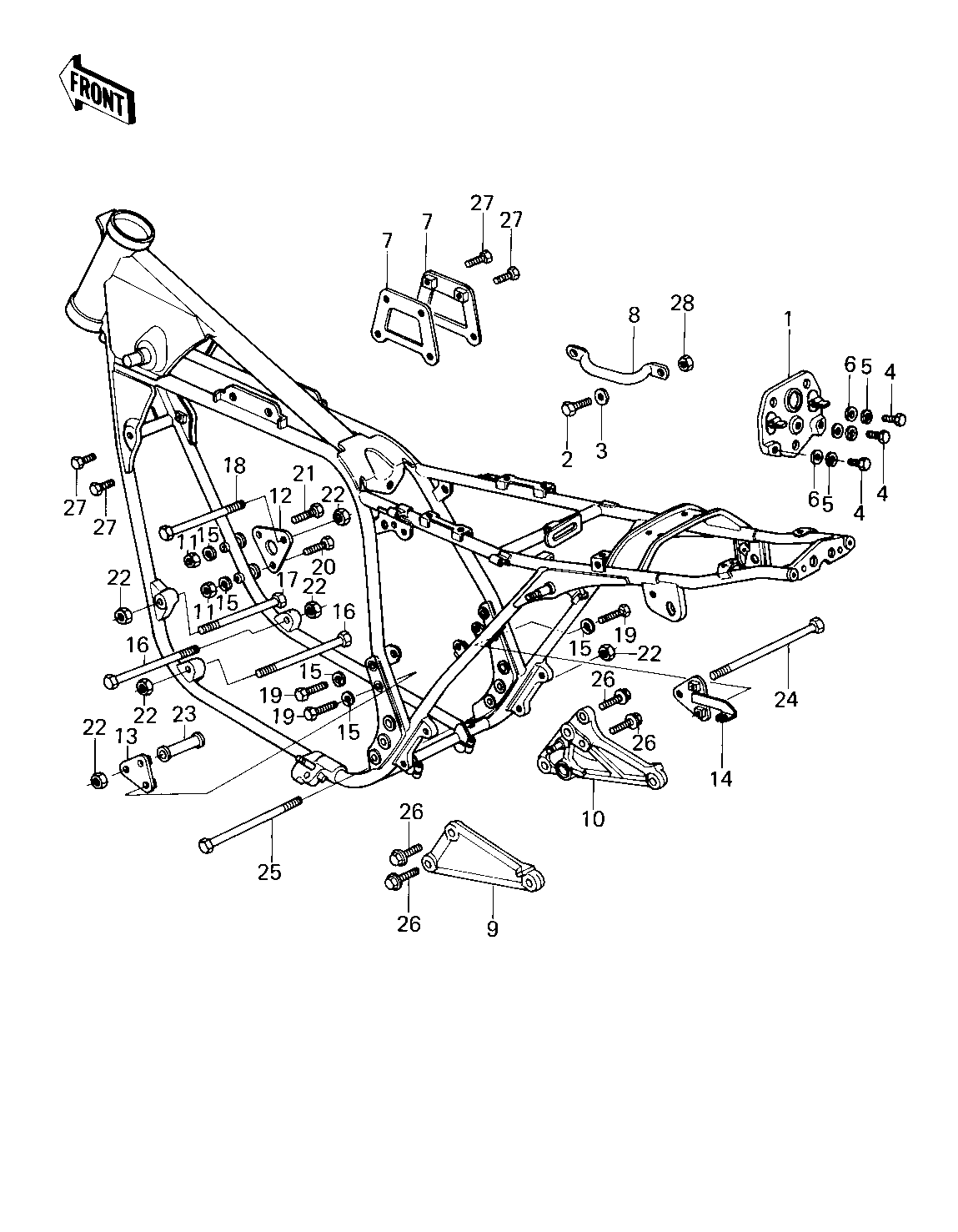

1980 KZ750-E1 - FRAME FITTINGS ('80 KZY 50-E1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,TAIL LAMP | 1 | 11034-1753 | 1 | ||
| BOLT-SMALL-UPSET,8X18 | 2 | 115G0818 | 1 | ||
| WASHER PLAIN 8MM | 3 | 410B0800 | 1 | ||
| BOLT-UPSET,6X12 | 4 | 112G0612 | 3 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 3 | ||
| WASHER PLAIN 6MM | 6 | 411B0600 | 3 | ||
| PLATE,IGNITION COIL | 7 | 21048-1001 | 2 | ||
| GRIP,FRAME | 8 | 32109-1013 | 1 | ||
| STAY,MUFFLER,LH | 9 | 35011-1080 | 1 | ||
| STAY,MUFFLER,RH | 10 | 35011-1081 | 1 | ||
| NUT,8MM | 11 | 311B0800 | 2 | ||
| PLATE,FRONT ENG.MOUNT | 12 | 32030-063 | 1 | ||
| PLATE,RR ENG MONT,L.H | 13 | 32030-064 | 1 | ||
| PLATE,ENG.MOUNT,R.H. | 14 | 32029-1129 | 1 | ||
| WASHER SPRING 8MM | 15 | 461F0800 | 6 | ||
| BOLT,HEX HEAD,10X84 | 16 | 92001-1048 | 2 | ||
| BOLT,HEX HEAD,10X72 | 17 | 92001-1049 | 1 | ||
| BOLT,HEX HEAD,10X46 | 18 | 92001-1050 | 1 | ||
| BOLT,HEX HEAD,8X40 | 19 | 92001-1230 | 4 | ||
| BOLT,FLANGED,8X60 | 20 | 92001-1581 | 1 | ||
| BOLT-8X63 | 21 | 92001-1397 | 1 | ||
| NUT,LOCK,10MM | 22 | 92019-021 | 6 | ||
| COLLAR,L=54MM. | 23 | 92027-275 | 1 | ||
| BOLT,ENGINE MOUNTING | 24 | 92091-023 | 1 | ||
| BOLT,HEX HEAD,10X219 | 25 | 92091-032 | 1 | ||
| BOLT,8X28 | 26 | 92001-1095 | 4 | ||
| BOLT,HEX HEAD,6X12 | 27 | 92001-1171 | 4 | ||
| NUT-8MM | 28 | 92015-1022 | 1 |
