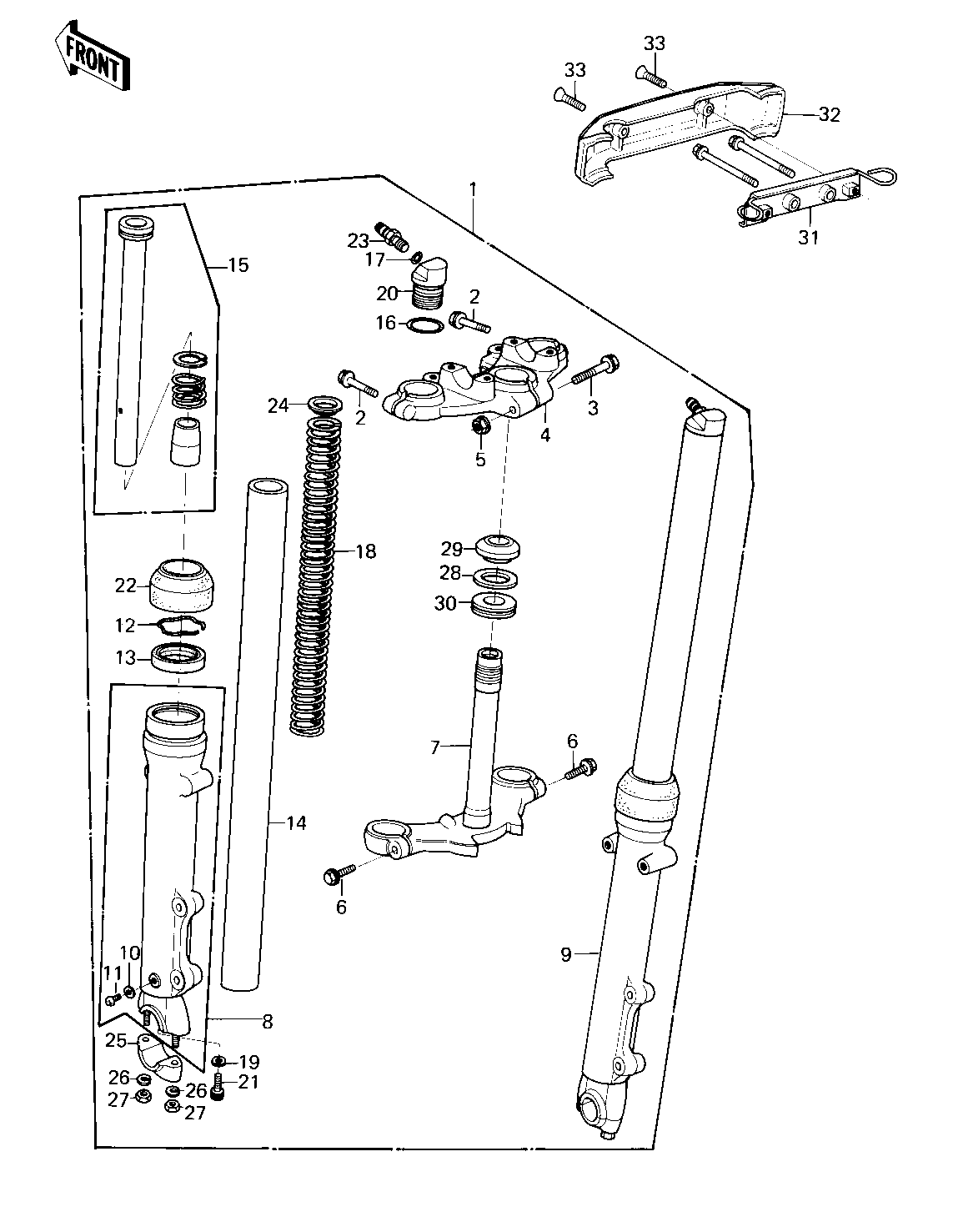

1980 KZ750-E1 - FRONT FORK ('80 KZY 50-E1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1123 1
BOLT,FLANGED,8X45 2 131G0845 2
BOLT,FLANGED,8X55 3 130G0855 1
HEAD,STEERING STEM 4 44039-1028 1
NUT-8MM 5 92015-1022 1
BOLT,FLANGED,12X35 6 131G1235 2
STEM,STEERING 7 44037-1039 1
TUBE,FORK OUTER,L.H. 8 39093-1001 1
TUBE,FORK OUTER,R.H. 9 39093-1003 1
GASKET FORK DRAIN PLG 10 44045-002 2
SCREW PAN HEAD 4X8 11 220B0408 2
RING-SNAP,FORK OIL 12 92033-1100 2
SEAL-OIL,FRONT FORK 13 92049-1101 2
PIPE-FORK INNER 14 39093-1067 2
CYLINDER-FORK 15 44023-1009 2
"O" RING,FORK TOP 16 92055-1012 2
"0" RING,AIR VALVE 17 92055-1018 2
SPRING,FORK 18 44026-1045 2
GASKET,FORK CYLINDER 19 44045-057 2
CAP,FORK TOP 20 44029-1005 2
BOLT-FORK CYLINDER 21 44041-040 2
DUST SHIELD,FORK 22 92093-1037 2
VALVE ASSY,AIR 23 16126-1003 2
GUIDE,FORK SPRING 24 44028-033 2
HOLDER,FRONT AXLE 25 44063-011 2
WASHER SPRING 8MM 26 461F0800 4
NUT,LOCK,8MM 27 92015-1124 4
WASHER,PLAIN 28 92022-231 1
CONE,STEERING STEM 29 92047-012 1
OIL SEAL,STEERING STM 30 92056-003 1
BRACKET,FR FORK COVER 31 11034-1765 1
COVER,FORK 32 44033-1053 1
SCREW-CSK-RD-CROS 33 222C0518 2
