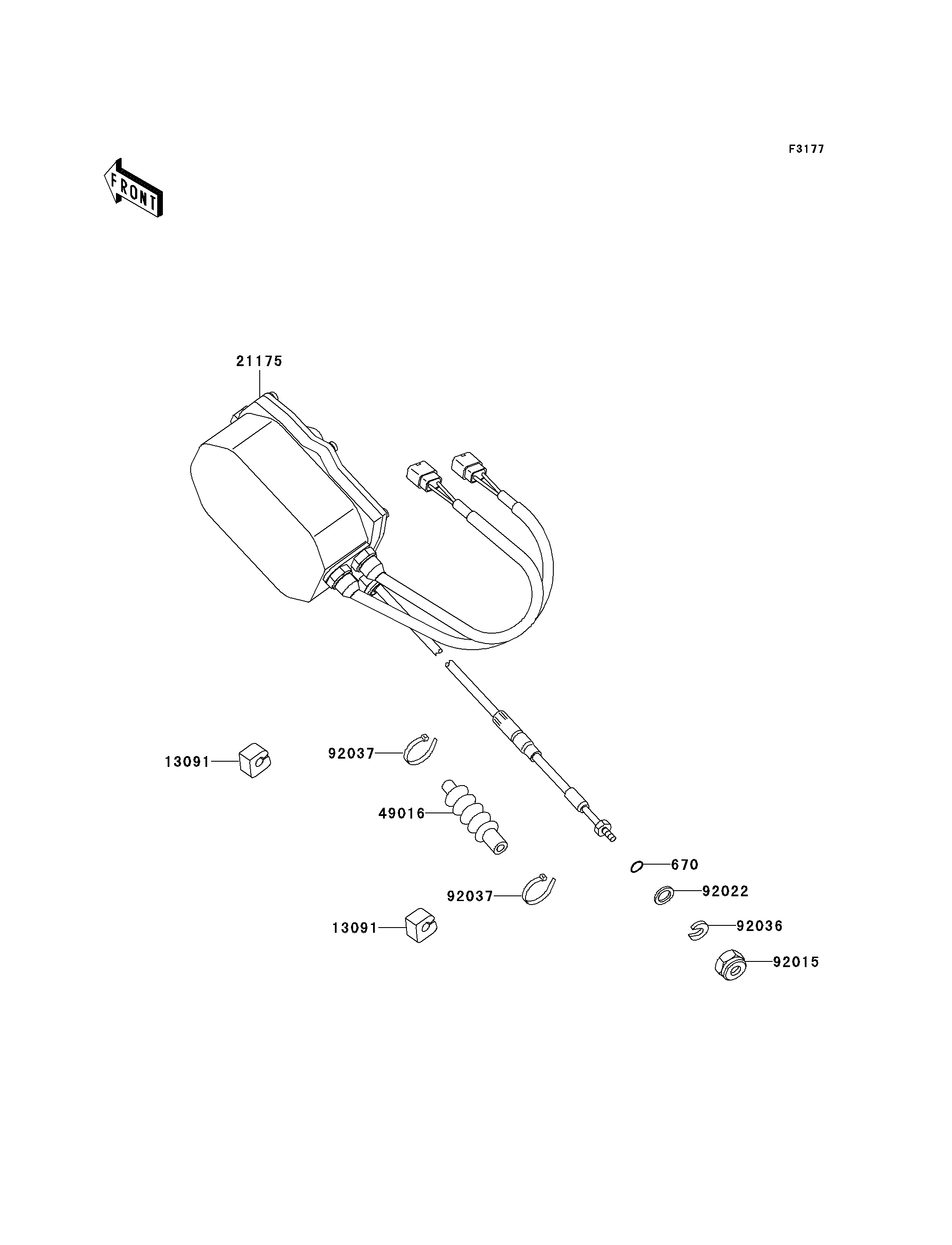

670
13091
13091
21175
49016
92015
92022
92036
92037
92037
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,11MM 670 670B2011 1
HOLDER 13091 13091-3712 2
CONTROL UNIT-ELECTRONIC 21175 21175-3712 1
COVER-SEAL,TILT CABLE 49016 49016-3702 1
NUT,20MM 92015 92015-526 1
WASHER 92022 92022-535 1
RING-SNAP 92036 92036-501 1
CLAMP 92037 92037-1173 2
