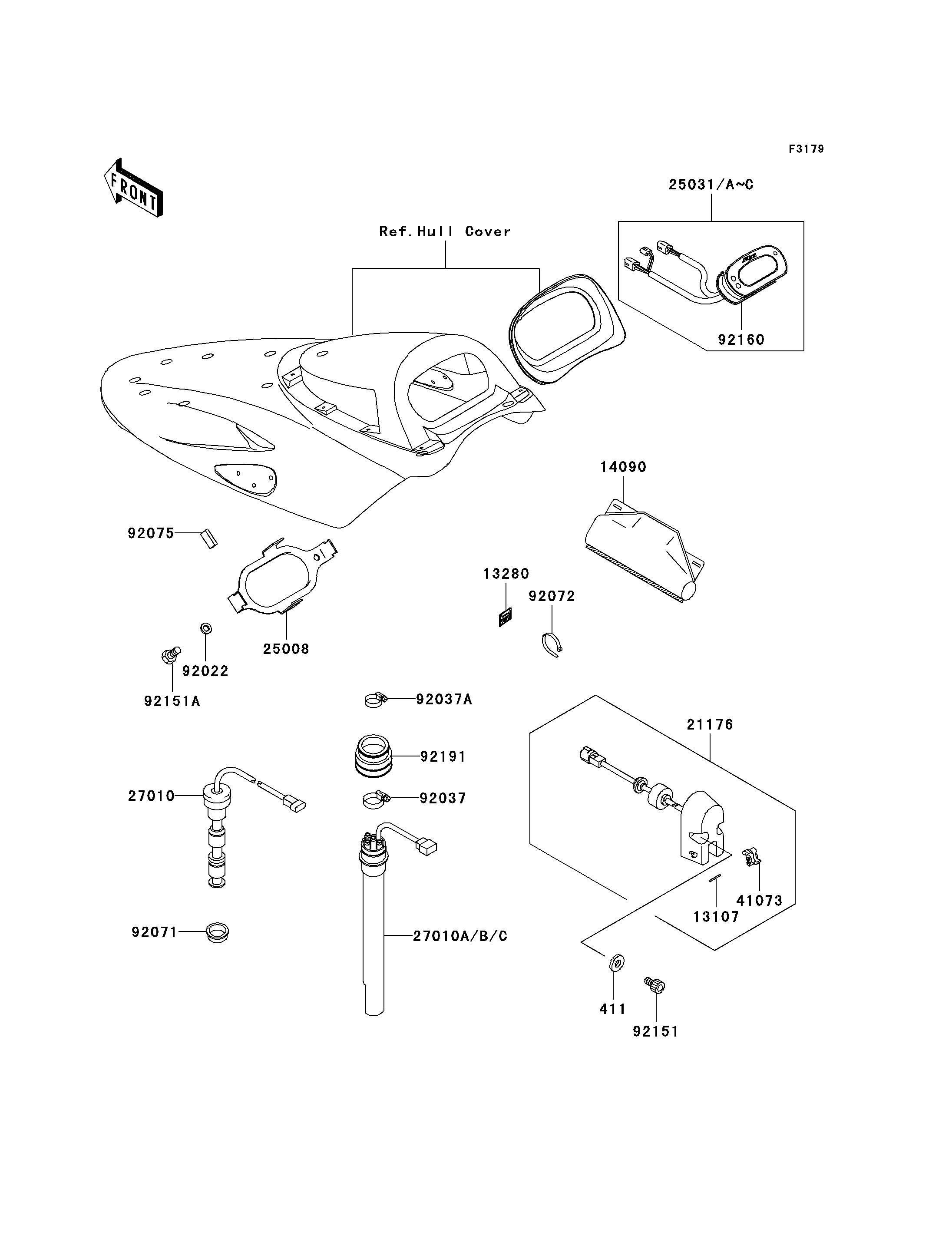

2000 Ultra 150 - Meters

DOWNLOAD PDF
SELECT A NEW PART
411
13107
14090
21176
25008
27010
27010B
41073
92022
92037
92037A
92071
92072
92075
92151
92151A
92160
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 411 411S0600 2
SHAFT 13107 13107-3754 1
COVER,COUPLER 14090 14090-1611 1
SENSOR,SPEEDOMETER,J.WHITE 21176 21176-3732-8U 1
BRACKET-METER 25008 25008-3709 1
SWITCH,OIL LEVEL 27010 27010-3765 1
SWITCH,FUEL LEVEL 27010B 27010-3769 1
WHEEL-ASSY,PADDLE 41073 41073-3701 1
WASHER,5X16X1.5 92022 92022-3041 2
CLAMP 92037 92037-3009 1
CLAMP 92037A 92037-3738 1
GROMMET 92071 92071-3824 1
BAND,L=201 92072 92072-3778 2
DAMPER 92075 92075-1446 4
BOLT,SOCKET,6X10 92151 92151-3704 2
BOLT,5X10 92151A 92151-3707 2
DAMPER,METER 92160 92160-3881 1
TUBE 92191 92191-3832 1
HOLDER 13280 13280-3706 1 CN
HOLDER 13280 13280-3706 2 US
METER-ASSY,MILE 25031B 25031-3718 1 US
METER-ASSY,KM 25031C 25031-3719 1 CN
