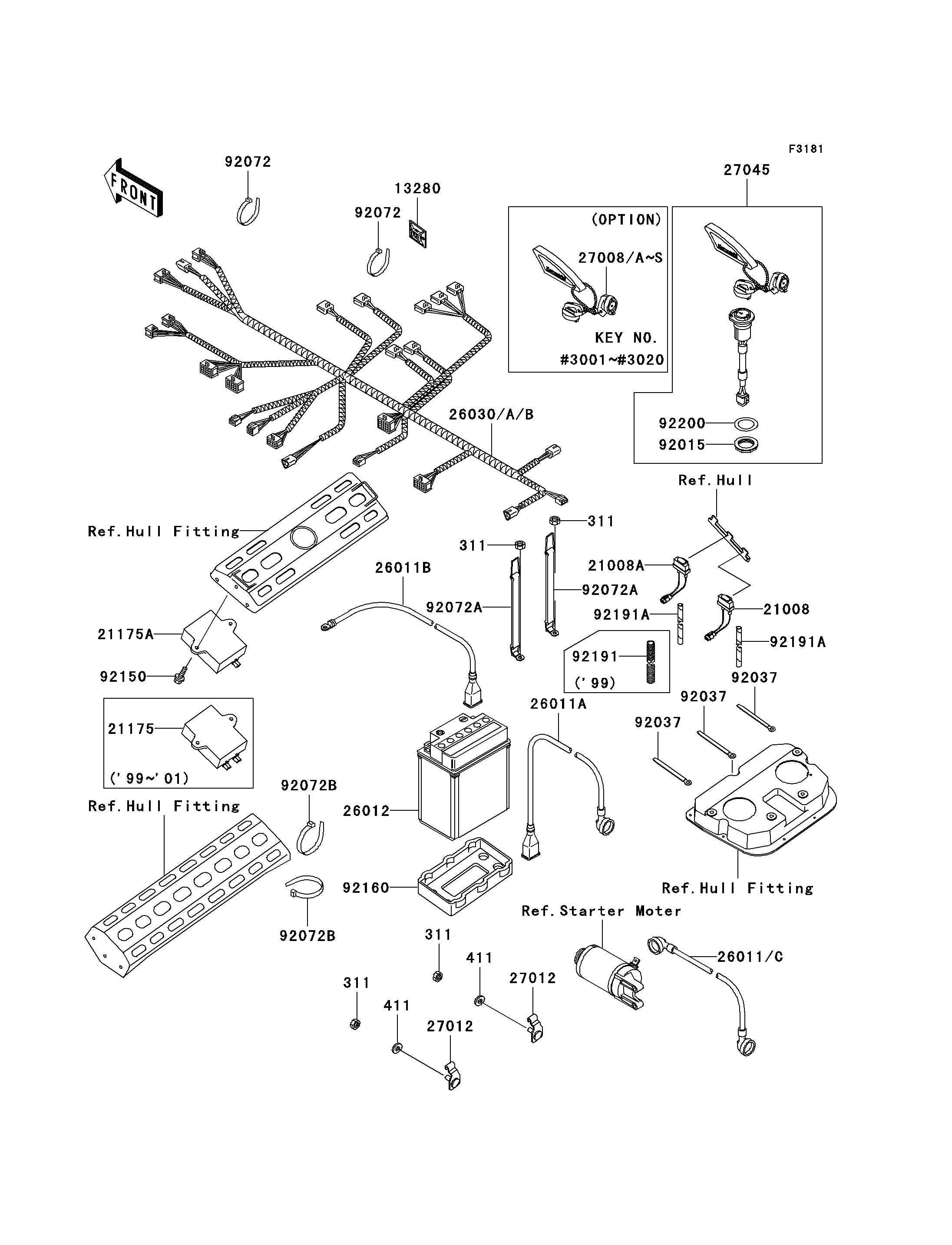

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER | 13280 | 13280-3706 | 6 | ||
BREAKER,10A,MAIN | 21008 | 21008-3701 | 1 | ||
BREAKER,20A,TRIM | 21008A | 21008-3702 | 1 | ||
CONTROL UNIT-ELECTRONIC,TRIM | 21175 | 21175-3710 | 1 | ||
WIRE-LEAD,RELAY-STARTER | 26011 | 26011-3852 | 1 | ||
WIRE-LEAD,BATTERY(+)-RELAY | 26011A | 26011-3853 | 1 | ||
WIRE-LEAD,BATTERY(-)-STARTER | 26011B | 26011-3876 | 1 | ||
BATTERY,YTX20L-BS,12V 18AH | 26012 | 26012-3728 | 1 | ||
HARNESS,MAIN | 26030A | 26030-3734 | 1 | ||
KEY-LOCK,MAGNETIC SW,#3001 | 27008 | 27008-3745 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3002 | 27008A | 27008-3746 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3003 | 27008B | 27008-3747 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3004 | 27008C | 27008-3748 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3005 | 27008D | 27008-3749 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3006 | 27008E | 27008-3750 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3007 | 27008F | 27008-3751 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3008 | 27008G | 27008-3752 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3009 | 27008H | 27008-3753 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3010 | 27008I | 27008-3754 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3011 | 27008J | 27008-3755 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3012 | 27008K | 27008-3756 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3013 | 27008L | 27008-3757 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3014 | 27008M | 27008-3758 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3015 | 27008N | 27008-3759 | 1 | (OPTION) | |
NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
WASHER-PLAIN,6MM | 411 | 411S0600 | 2 | ||
KEY-LOCK,MAGNETIC SW,#3016 | 27008O | 27008-3760 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3017 | 27008P | 27008-3761 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3018 | 27008Q | 27008-3762 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3019 | 27008R | 27008-3763 | 1 | (OPTION) | |
KEY-LOCK,MAGNETIC SW,#3020 | 27008S | 27008-3764 | 1 | (OPTION) | |
HOOK | 27012 | 27012-3818 | 2 | ||
SWITCH-ASSY,MAIN | 27045 | 27045-3723 | 1 | ||
NUT | 92015 | 92015-3848 | 1 | ||
CLAMP,L=100 | 92037 | 92037-3736 | 3 | ||
BAND,L=201 | 92072 | 92072-3778 | 10 | ||
BAND,WATER MUFFLER | 92072A | 92072-3781 | 2 | ||
BAND,L=368.3 | 92072B | 92072-3808 | 2 | ||
BOLT,6X20 | 92150 | 92150-3758 | 2 | ||
DAMPER | 92160 | 92160-3929 | 1 | ||
TUBE,CORRUGATE,200MM | 92191A | 92191-3907 | 2 | ||
WASHER | 92200 | 92200-3736 | 1 |
