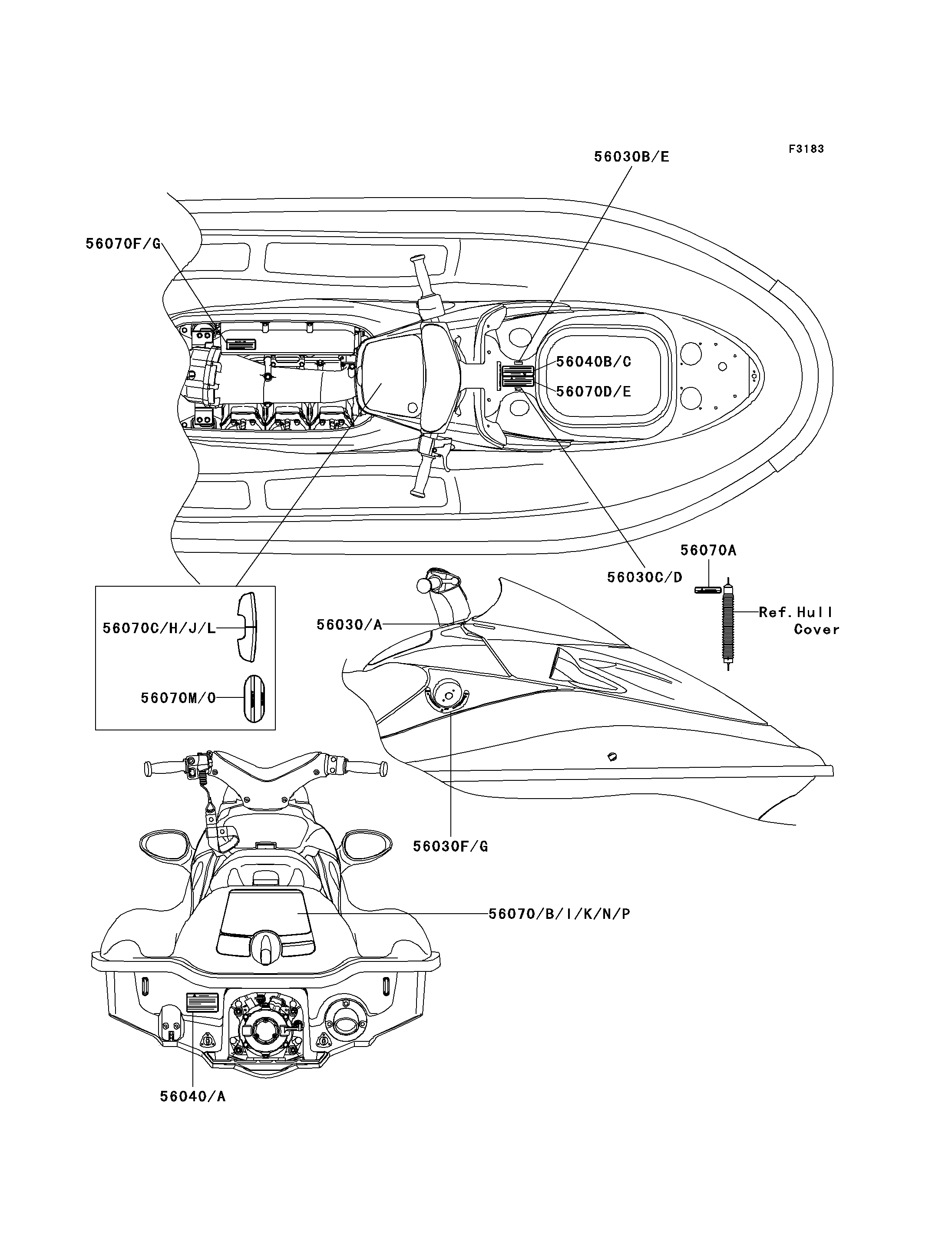

2000 Ultra 150 - Labels(JH1200-A1/A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56030B
56030B
56030C
56030C
56030F
56030F
56030G
56030G
56040
56040
56040B
56040B
56070A
56070A
56070D
56070D
56070K
56070K
56070L
56070L
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FIRE EXTINGUISHER 56030 56030-3769 2
LABEL,GASOLINE 56030B 56030-3827 1
LABEL,OIL 56030C 56030-3828 1
LABEL,FUEL 56030F 56030-3842 1
LABEL,CHOKE 56030G 56030-3843 1
LABEL-WARNING,NOZZLE 56040 56040-3898 1
LABEL-WARNING,GASOLINE 56040B 56040-3972 1
LABEL-WARNING,DAMPER 56070A 56070-3876 1
LABEL-WARNING,BREAK IN 56070D 56070-3884 1
LABEL-WARNING,IMPORTANT SAFETY 56070K 56070-3897 1
LABEL-WARNING,MAIN SWITCH 56070L 56070-3898 1
LABEL,FIRE EXTINGUISHER(FRENCH 56030A 56030-3770 2 CN
LABEL,OIL 56030D 56030-3829 1 CN
LABEL,GASOLINE 56030E 56030-3830 1 CN
LABEL-WARNING,NOZZLE(FRENCH) 56040A 56040-3916 1 CN
LABEL,GASOLINE(FRENCH) 56040C 56040-3978 1 CN
LABEL-WARNING,BREAK IN(FRENCH) 56070E 56070-3885 1 CN
LABEL-WARNING,IMPORTANT SAFETY 56070I 56070-3893 1 CN
LABEL-WARNING,MAIN SWITCH 56070J 56070-3894 1 CN
