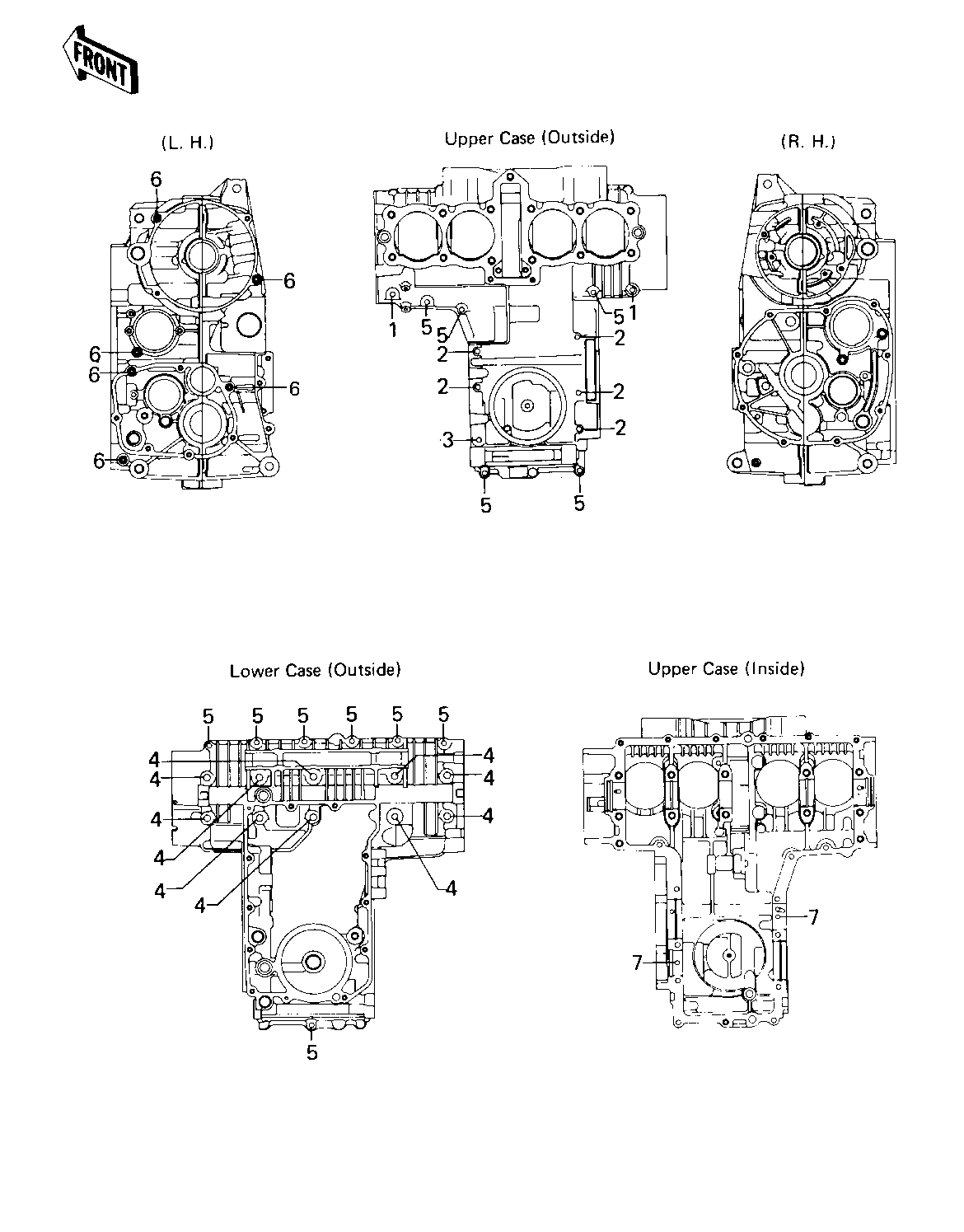

1981 KZ550-A2 - CRANKCASE BOLT & STUD PATTERN ('80-'81 A

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK ? ? ?
UNAVAILABLE IN PRICE BOOK ? ? ?
BOLT,6X105 3 92003-194 1
BOLT-FLANGED,8X95 4 130P0895 10
BOLT,HEX HEAD,6X41 5 92003-109 2
PIN-DOWEL 6 92042-007 6
PIN DOWEL 6MM 7 92042-016 12 REF. CRANKSHAFT
