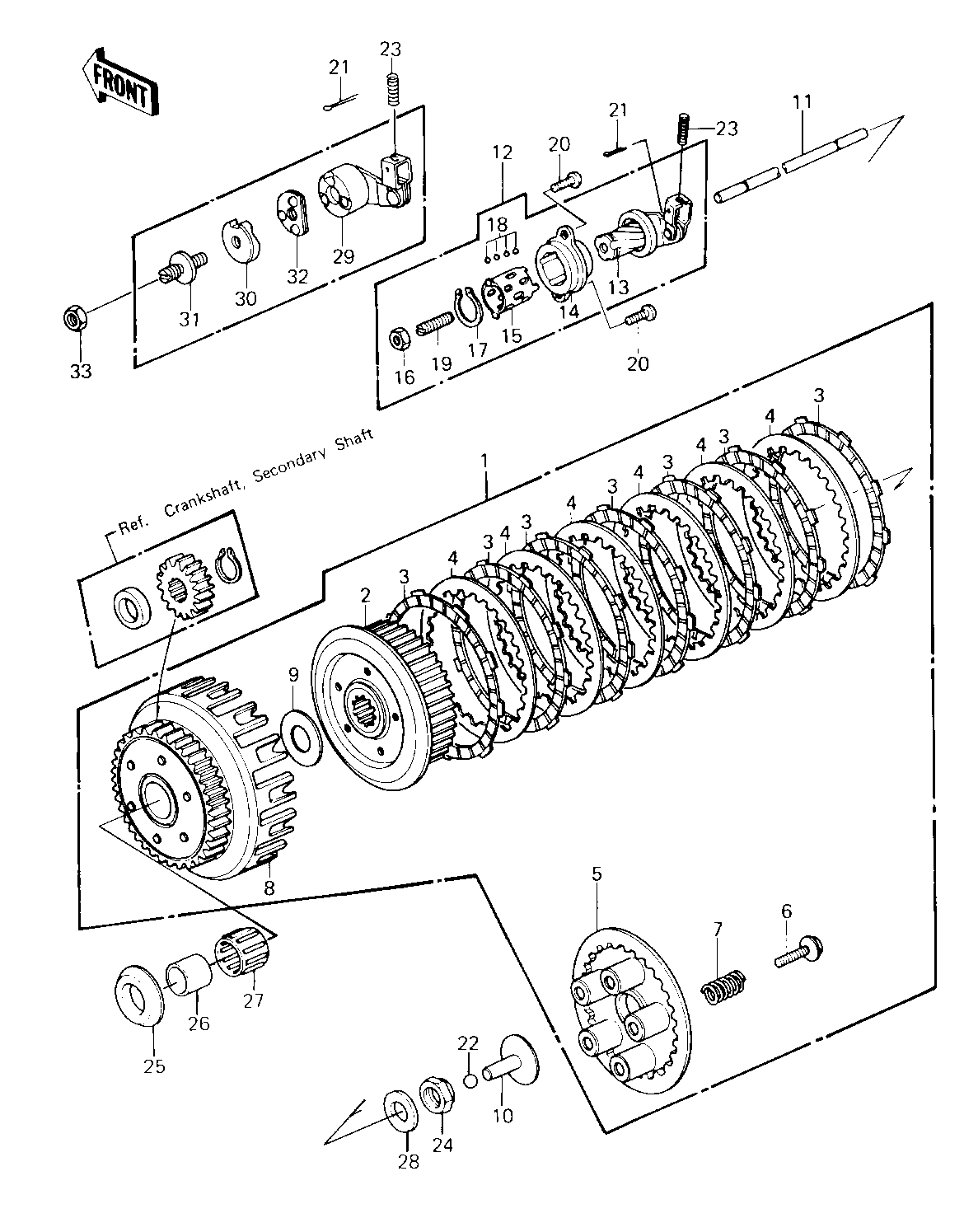

1981 KZ550-A2 - CLUTCH ('80-'81 A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 1 13081-1044 1
HUB-CLUTCH 2 13087-1052 1
PLATE,CLUTCH FRICTION 3 13088-040 2
PLATE,CLUTCH STEEL 4 13089-026 6
PLATE,CLUTCH SPRING 5 13187-008 1
BOLT,CLUTCH SPR FITT 6 92001-1066 5
SPRING,CLUTCH 7 92081-139 5
HOUSING,CLUTCH,65T 8 13095-1030 1
WASHER TH 25.5X47X2.5 9 92026-022 1
PUSHER,CLTCH SPRG PLT 10 13116-029 1
ROD,CLUTCH PUSH 11 13116-1007 1
RELEASE ASSY,CLUTCH 12 13231-020 1 USE WITH 14026-1015
INNER,CLUTCH RELEASE 13 13102-027 1 USE WITH 14026-1015
OUTER,CLUTCH RELEASE 14 13118-011 1 USE WITH 14026-1015
RETAINER 15 13197-004 1 USE WITH 14026-1015
NUT 8MM 16 318B0800 1 USE WITH 14026-1015
CIRCLIP 15MM 17 480J1500 1 USE WITH 14026-1015
BALL,STEEL,1/8" 18 600A0400 11 USE WITH 14026-1015
SCREW,SLOTTED,8X25 19 92014-014 1 USE WITH 14026-1015
SCREW PAN HEAD 6X16 20 220B0616 2 USE WITH 14026-1015
PIN COTTER 1.6X15 21 550D1615 1
BALL STEEL 3/8' 22 600A1200 1
SPRING-CLUTCH RELEASE 23 92081-069 1
NUT,20MM 24 92015-1555 1
SPACER,THRUST,T=5.5MM 25 92026-116 1
BUSHING,CLUTCH 26 92028-178 1
BEARING,KTV323723 27 92046-028 1
WASHER 28 92125-002 1
RELEASE,CLUTCH 29 13102-1008 1 USE WITH 14026-1041 92049-1003
CAM,RELEASE,CLUTCH 30 13119-1003 1 USE WITH 14026-1041 92049-1003
SCREW,SLOTTED,8M/M 31 92009-1009 1 USE WITH 14026-1041 92049-1003
BEARING,BALL,CLUTCH 32 92045-1001 1 USE WITH 14026-1041 92049-1003
NUT 8MM 33 318B0800 1 USE WITH 14026-1041 92049-1003
