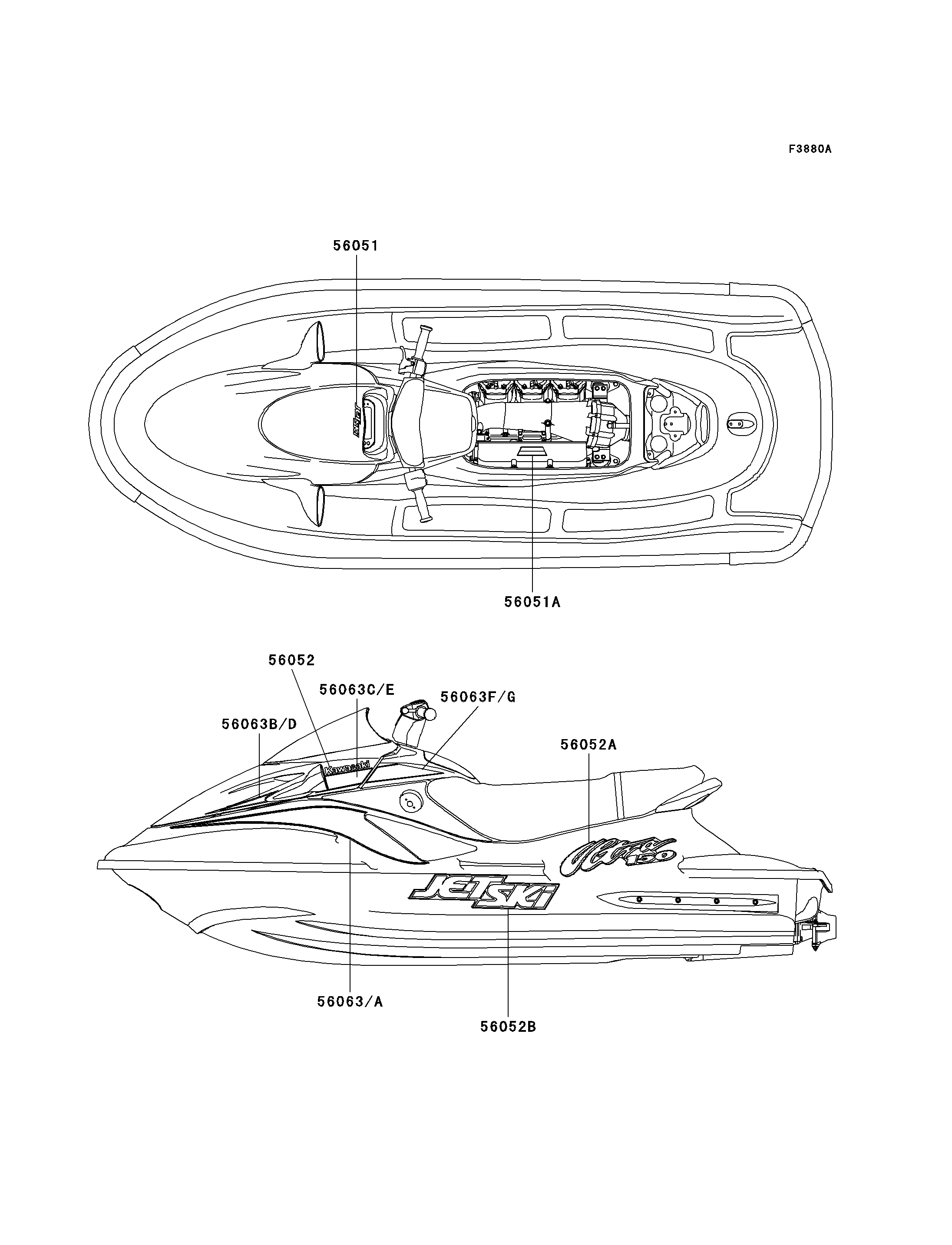

56051
56051A
56052
56052A
56052B
56063
56063A
56063B
56063C
56063D
56063E
56063F
56063G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,METER COVER,JET SKI 56051 56051-3816 1
MARK,1200 TRIPLE 56051A 56051-3821 1
MARK,KAWASAKI 56052 56052-3723 2
MARK,DECK,ULTRA 56052A 56052-3725 2
MARK,HULL,JET SKI 56052B 56052-3726 2
PATTERN,DECK,LH 56063 56063-3722 1
PATTERN,DECK,RH 56063A 56063-3723 1
PATTERN,HATCH COVER,FR,LH 56063B 56063-3724 1
PATTERN,HATCH COVER,RR,LH 56063C 56063-3725 1
PATTERN,HATCH COVER,FR,RH 56063D 56063-3726 1
PATTERN,HATCH COVER,RR,RH 56063E 56063-3727 1
PATTERN,METER COVER,LH 56063F 56063-3728 1
PATTERN,METER COVER,RH 56063G 56063-3729 1
