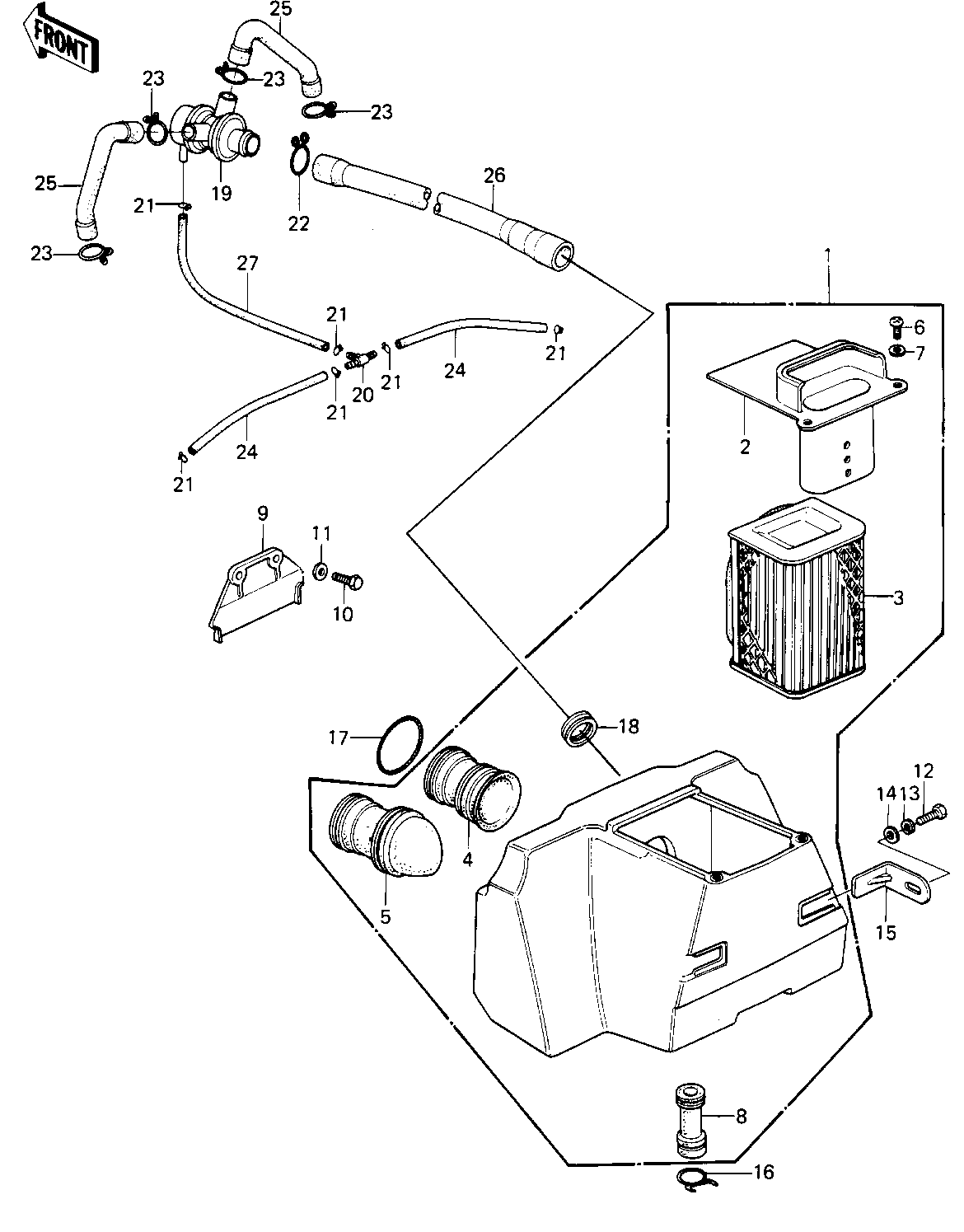

1981 KZ550-A2 - AIR CLEANER ('80-'81 A1/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 1 | 11010-1103 | 1 | ||
| 11010-1104 (Canada) | 1 | 11010-1054 | 1 | USE FOR CANADA MARKET | |
| CAP,AIR FILTER | 2 | 11012-1183 | 1 | ||
| ELEMENT,AIR CLNR | 3 | 11013-1013 | 1 | ||
| INLET DUCT,#2,3 | 4 | 11015-057 | 2 | ||
| INLET PIPE,#1.4 | 5 | 11015-063 | 2 | ||
| SCREW PAN HEAD 6X12 | 6 | 220B0612 | 2 | ||
| WASHER PLAIN 6MM | 7 | 410B0600 | 2 | ||
| TUBE,BREATHER,10X63L | 8 | 92059-1200 | 1 | ||
| BAFFLE PLT,AIR CLEANE | 9 | 11019-003 | 1 | ||
| BOLT-UPSET | 10 | 112G0618 | 2 | ||
| WASHER PLAIN 6MM | 11 | 411B0600 | 2 | ||
| BOLT-UPSET,6X12 | 12 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 13 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 14 | 411B0600 | 2 | ||
| BRACKET,AIR CLEANER | 15 | 32070-038 | 2 | ||
| CLAMP BREATHER PIPE | 16 | 92037-028 | 1 | ||
| SPRING COIL | 17 | 92081-047 | 4 | ||
| GROMMET,AIR CLEANER | 18 | 92071-1013 | 1 | USE FOR 11010-1022 | |
| VALVE ASSY,AIR SWITCH | 19 | 16126-1017 | 1 | ||
| FITTING,TUBE | 20 | 92005-1017 | 1 | ||
| CLAMP-PIPE | 21 | 92037-072 | 6 | ||
| CLAMP | 22 | 92037-1076 | 1 | ||
| CLAMP,BREATHER TUBE | 23 | 92037-213 | 4 | USE FOR U.S.A. MARKET | |
| TUBE,VACUUM,LONG | 24 | 92059-1162 | 2 | ||
| TUBE | 25 | 92059-1034 | 2 | ||
| TUBE,19X21X340L | 26 | 92059-1039 | 1 | ||
| TUBE,4X9X220L | 27 | 92059-1040 | 1 |
