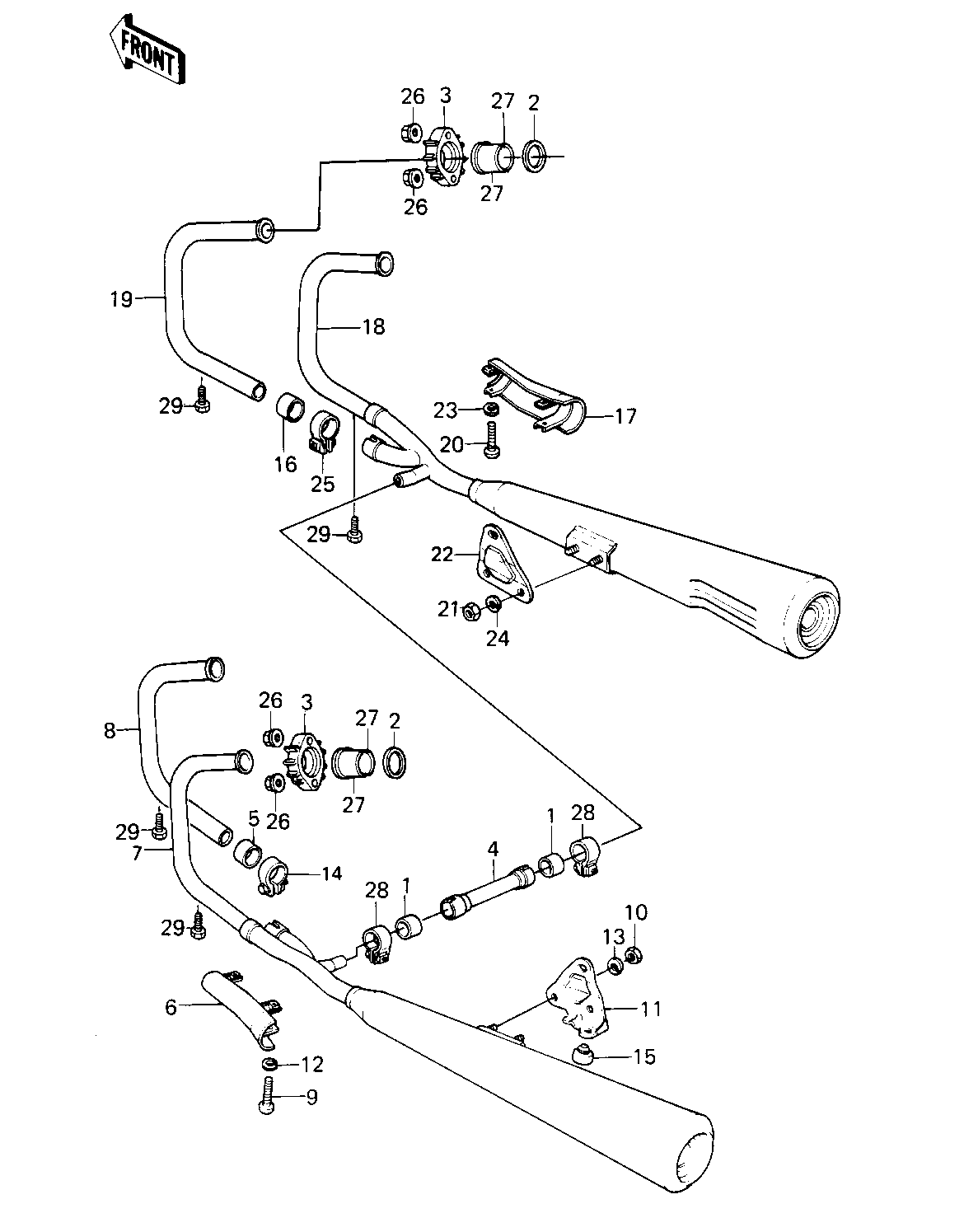

1981 KZ550-A2 - MUFFLERS ('80-'81 A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNEC 1 11060-1051 2
GASKET,EXHAUST PIPE H 2 11009-1866 4
HOLDER,EXHAUST PIPE 3 18069-1006 4
PIPE,MUFFLER CONNECT1 4 32032-1671 1
GASKET,EXHAUST PIPE C 5 11009-1667 1
COVER,MUFFLER,LH 6 14025-1531 1
MUFFLER,L.H. 7 18001-1128 1 CANADA
MUFFLER,L.H. 7 18001-1128 1 U.S.
PIPE,EXHAUST,#2 8 18049-1067 1 CANADA
PIPE,EXHAUST,#2 8 18049-1067 1 U.S.
SCREW PAN HEAD 6X40 9 220B0640 2
NUT,8M/M 10 317B0800 2
BRACKET,MUFFLER,L.H. 11 32069-1031 1
WASHER SPRING 6MM 12 461F0600 2
WASHER SPRING 8MM 13 461F0800 2
CLAMP,EXHAUST PIPE 14 92037-1089 1 KZ550-A1
CLAMP,42MM 14 92037-1349 1 KZ550-A2
DAMPER RUBB MAIN STAD 15 92075-015 1
GASKET,EXHAUST PIPE C 16 11009-1667 1
COVER,MUFFLER,RH 17 14025-1532 1
MUFFLER,R.H. 18 18001-1129 1 CANADA
MUFFLER,R.H. 18 18001-1129 1 U.S.
PIPE,EXHAUST,#3 19 18049-1068 1 CANADA
PIPE,EXHAUST,#3 19 18049-1068 1 U.S.
SCREW PAN HEAD 6X40 20 220B0640 2
NUT,8M/M 21 317B0800 2
BRACKET,MUFFLER,R.H. 22 32069-1032 1
WASHER SPRING 6MM 23 461F0600 2
WASHER SPRING 8MM 24 461F0800 2
CLAMP,EXHAUST PIPE 25 92037-1089 1 KZ550-A1
CLAMP,42MM 25 92037-1349 1 KZ550-A2
NUT-6MM 26 92015-1078 8
COLLAR,EXHAUST PIPE 27 92027-264 8
CLAMP,PIPE,35MM 28 92037-1223 2 KZ550-A1
CLAMP,PIPE,35MM 28 92037-1223 2 KZ550-A2
BOLT (6X10) 29 110R0610 4 USE FOR 18001-1
