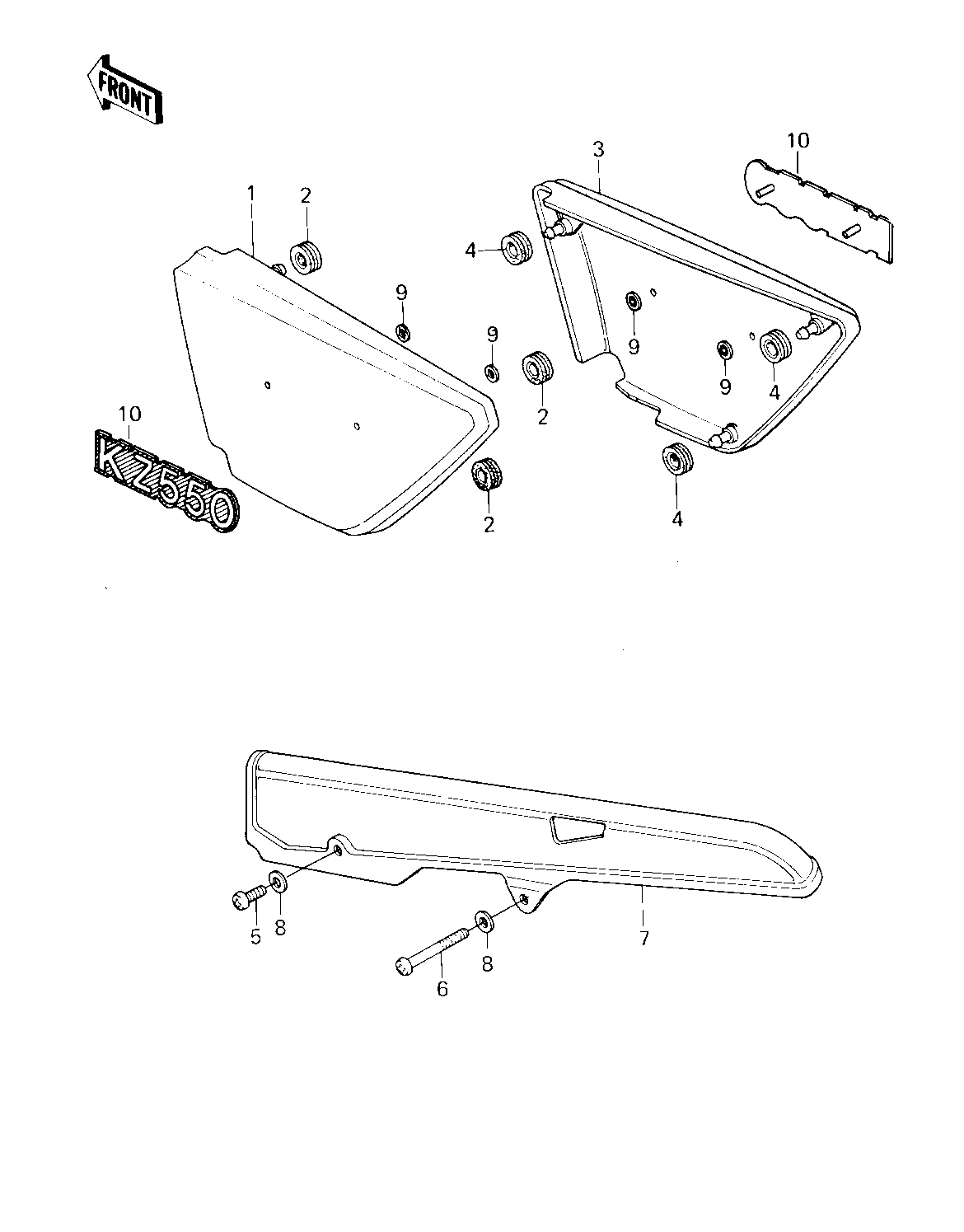

1981 KZ550-A2 - SIDE COVERS/CHAIN COVER ('80-'81 A1/A2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE,L.H,EBONY 1 36001-1027-8G 1 KZ550-A1
COVER-SIDE,LH,L.P.RED 1 36001-1027-D9 1 KZ550-A2
GROMMET 2 92071-056 3
COVER,SIDE,R.H,EBONY 3 36001-1028-8G 1 KZ550-A1
COVER-SIDE,RH,L.P.RED 3 36001-1028-D9 1 KZ550-A2
GROMMET 4 92071-056 3
SCREW PAN HEAD 6X14 5 220B0614 1
SCREW PAN HEAD 6X65 6 220B0665 1
CASE-CHAIN 7 36014-1005 1
WASHER 6.5X20X1.6T 8 92022-125 2
NUT,LOCK,3MM 9 92018-005 4
MARK,SIDE COVER,KZ550 10 56018-1147 2 KZ550-A1
MARK,SIDE COV,KZ550 10 56018-1183 2 KZ550-A2
