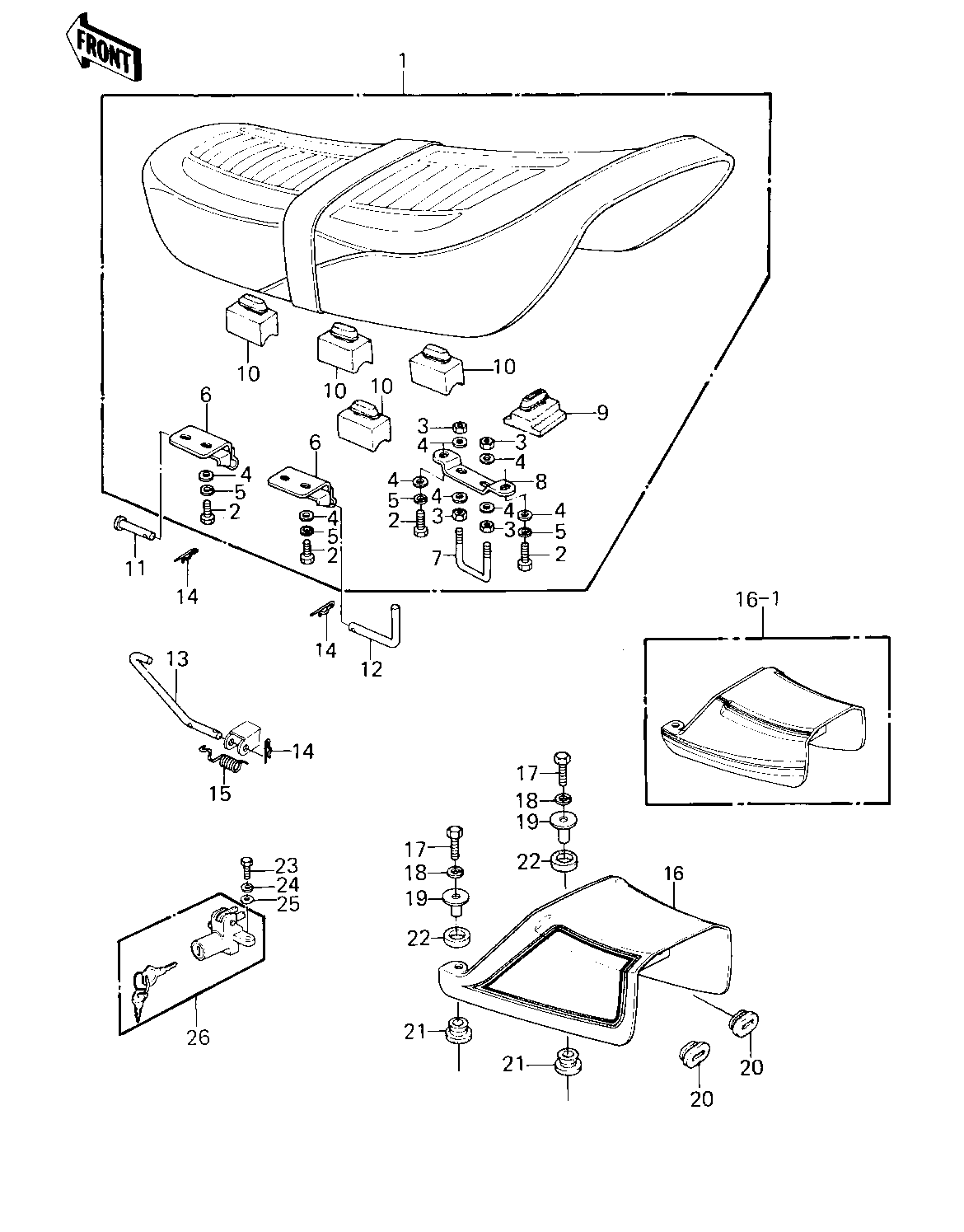

1981 KZ550-A2 - SEAT/SEAT COVERS ('80-'81 A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,DUAL 1 53001-1133 1 KZ550-A1
SEAT-ASSY,DUAL 1 53001-1133 1 KZ550-A2
BOLT-UPSET 6X14 2 112B0614 6
NUT 6MM 3 311B0600 4
WASHER PLAIN 6MM 4 411B0600 10
WASHER SPRING 6MM 5 461F0600 6
HINGE,SEAT,FRONT 6 53009-1010 2
CATCH, SEAT 7 53056-002 1
BRACKET, SEAT CATCH 8 53058-001 1
DAMPER RUBBER,SEAT 9 92075-1061 1
DAMPER RUBBER-SEAT 10 92075-156 4
PIN 11 53011-002 1
PIN,DUAL SEAT PIVOT 12 53011-008 1
HOOK SEAT 13 53054-001 1
PIN,SNAP 14 554A0600 3
SPRING,SEAT HOOK 15 92081-1053 1
COVER,SEAT,EBONY 16 14025-5023-8G 1 KZ550-A1
COVER-SEAT,L.P.RED 16-1 14025-1046-D9 1 KZ550-A2
BOLT 6X22 17 112B0622 2
WASHER SPRING 6MM 18 461F0600 2
COLLAR 19 92027-251 2
GROMMET,SIDE COVER 20 92071-072 2
RUBBER,FENDER COVER 21 92075-174 2
DAMPER RUBBER 22 92075-175 2
BOLT-UPSET 6X14 23 112B0614 1
WASHER SPRING 6MM 24 461F0600 1
WASHER PLAIN 6MM 25 411B0600 1
LOCK-ASSY,SEAT 26 27016-5010 1
