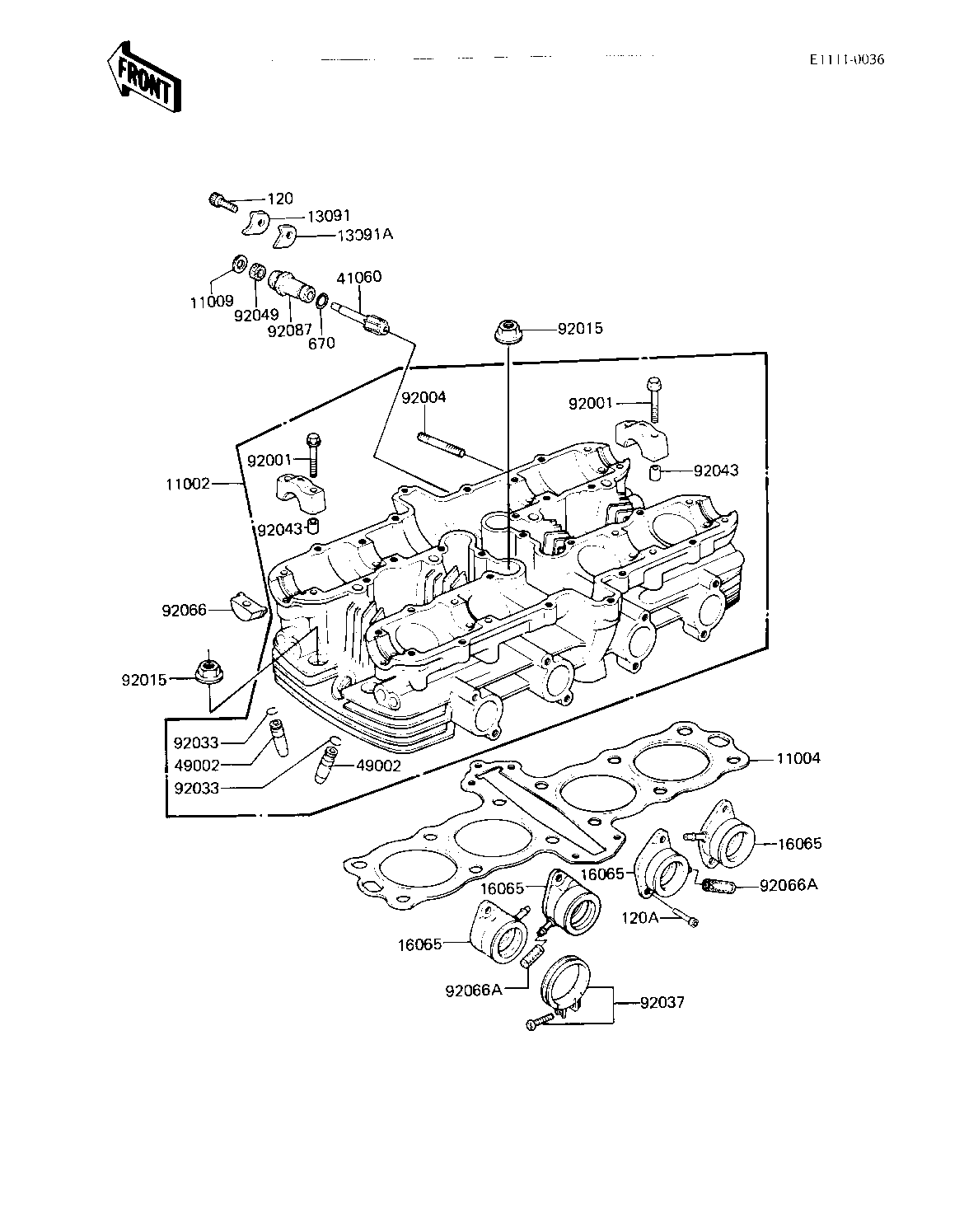

1982 KZ550-A3 - CYLINDER HEAD (KZ550-A3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HEAD-ASSY-CYL,F.BLACK | 11002 | 11002-1062 | 1 | ||
GASKET-HEAD | 11004 | 11004-1212 | 1 | ||
GASKET,TACHOMETER GER | 11009 | 92065-103 | 1 | ||
HOLDER,TACHOMETER2.3T | 13091 | 13091-1008 | 1 | ||
HOLDER,TACHOMETR,3.2T | 13091A | 13091-1009 | 1 | ||
HOLDER,CARBURETOR | 16065 | 16065-1014 | 4 | ||
GEAR,TACHOMETER,10T | 41060 | 13223-011 | 1 | ||
GUIDE,VALVE | 49002 | 49002-1005 | 8 | ||
BOLT,FLANGED,6X38 | 92001 | 92001-1105 | 16 | ||
STUD,6X27 | 92004 | 92004-066 | 8 | ||
NUT-8MM | 92015 | 92015-1143 | 12 | ||
CIRCLIP-VALVE | 92033 | 92036-023 | 8 | ||
CLAMP,CARBURETOR,40MM | 92037 | 92037-1129 | 4 | ||
PIN-DOWEL | 92043 | 92042-007 | 16 | ||
OIL SEAL | 92049 | 92050-075 | 1 | ||
PLUG,CAMSHAFT,11.35X1 | 92066 | 92066-1111 | 4 | ||
RUBBER PLUG | 92066A | 92068-006 | 2 | US | |
GUIDE,TACHOMETER GEAR | 92087 | 92087-010 | 1 | ||
BOLT,6X14 | 120 | 120P0614 | 1 | ||
BOLT-SOCKET,6X16,BLAC | 120A | 120S0616 | 8 | ||
"0" RING,10MM | 670 | 670D1510 | 1 |
