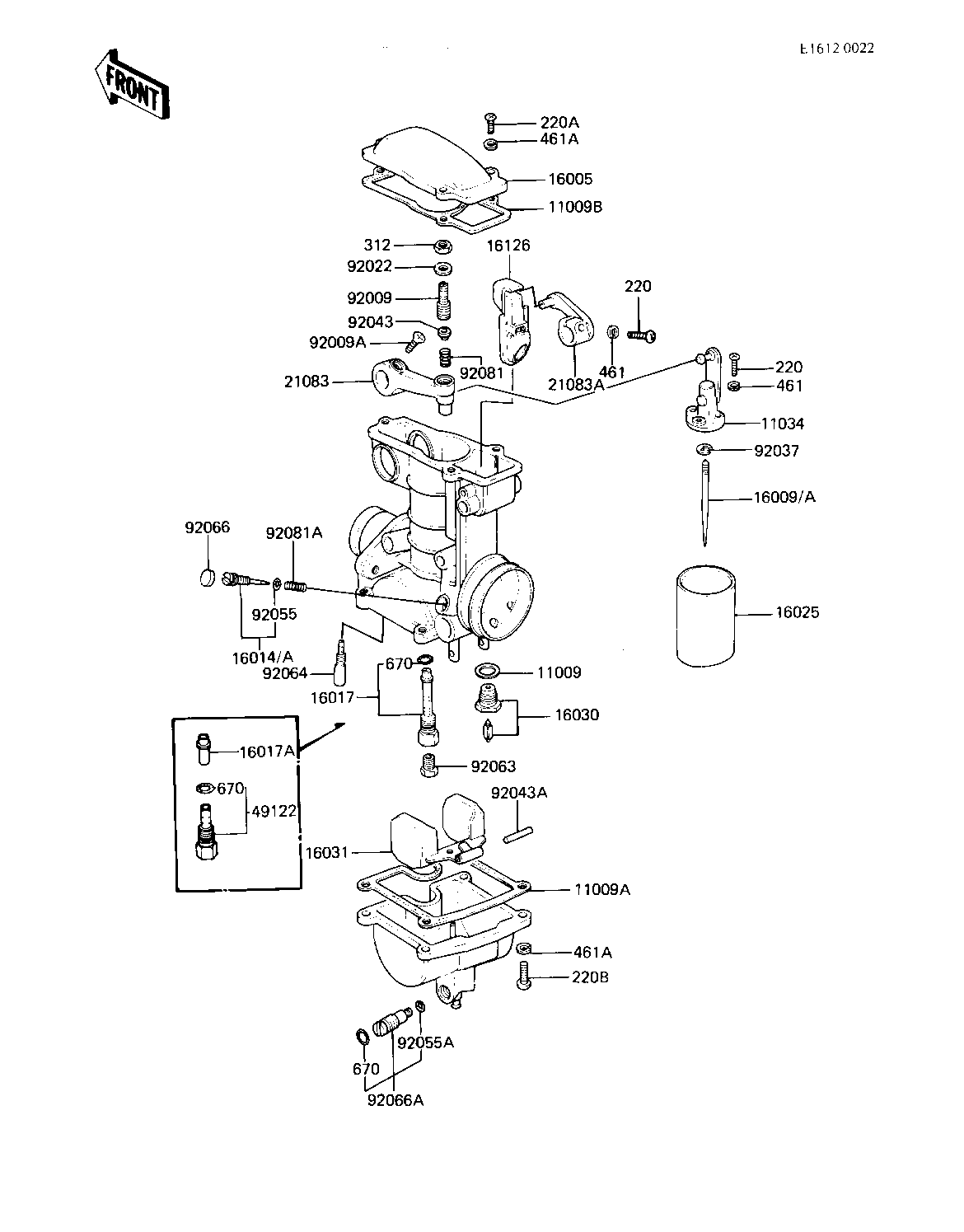

1982 KZ550-A3 - CARBURETOR PARTS (KZ550-A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT VALVE 11009 11009-1160 1
GASKET,FLOAT CHAMBER 11009A 11009-1161 1
GASKET,MIXING CHAMBER 11009B 11009-1162 1
BRACKET ASSY,THROTTLE 11034 11034-1587 1
TOP,MIXING CHAMBER 16005 16005-1008 1
JET NEEDLE,#4D92 16009 16009-1060 1 US
JET NEEDLE,#4D93 16009A 16009-1061 1 CN
SCREW,AIR ADJUSTING 16014 16014-1019 1 CN
USSCREW,AIR ADJUSTING 16014A 16014-1024 1
NEEDLE JET,#V95 16017 16017-1044 1 CN
NEEDLE JET,#V95 16017A 16017-1057 1 US
VALVE,THROTTLE,CA2.5 16025 16025-1038 1
FLOAT VALVE ASSY. 16030 16030-1009 1
FLOAT 16031 16031-1009 1
VALVE ASSY,CHOKE 16126 16126-1024 1
ARM,THROTTLE 21083 21083-1006 1
ARM,CHOKE 21083A 21083-1007 1
PIPE,BLEED 49122 49122-1010 1 US
SCREW,ADJUST,THROTTLE 92009 92009-1079 1
SCREW.CNTSNK HD,4X12 92009A 92009-1080 1
WASHER,PLAIN 92022 92022-1167 1
CIRCLIP,JET NEEDLE 92037 92037-1157 1
PIN,SPRING,THROTTLE 92043 92043-1065 1
PIN 92043A 92043-1066 1
"O" RING,AIR SCREW 92055 92055-1070 1
"O" RING,OVERFLOW 92055A 92055-1071 1
MAIN JET,#92 92063 92063-1055 1
PILOT JET #32 92064 92064-1028 1
PLUG,PILOT SCREW 92066 92066-1051 1 US
SCREW,DRAIN 92066A 92066-1065 1
SPRING,THROTTLE ARM 92081 92081-1189 1
SPRING,AIR SCREW 92081A 92081-1190 1
SCREW PAN HEAD 3X12 220 220B0312 3
SCREW-PAN-CROS 220A 220B0414 3
SCREW PAN HEAD 4X16 220B 220B0416 4
NUT 5MM 312 312B0500 1
WASHER SPRING 3MM 461 461F0300 3
WASHER SPRING 4MM 461A 461F0400 7
"O" RING,5MM 670 670B1505 1
