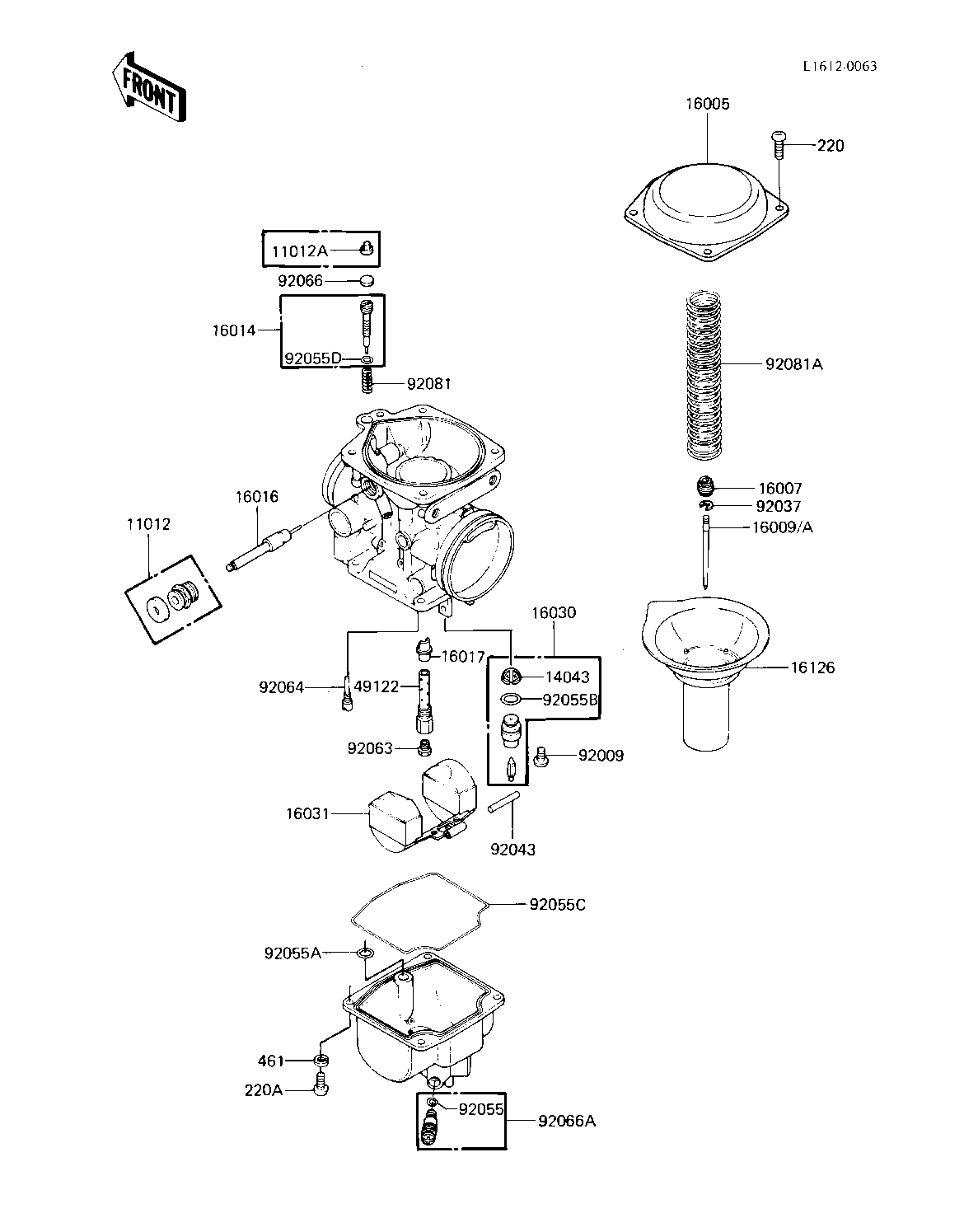

1983 KZ550-A4 - CARBURETOR PARTS (KZ550-A4)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1243 | 4 | ||
CAP (Canada) | 11012A | 11012-1265 | 4 | CN | |
FILTER,FLOAT VALVE | 14043 | 14043-1011 | 4 | ||
TOP-CHAMBER,CR PLATED | 16005 | 16005-1021 | 4 | ||
SEAT-SPRING | 16007 | 16007-1051 | 4 | ||
NEEDLE-JET,#4A02 | 16009 | 16009-1129 | 4 | US | |
NEEDLE-JET,#4A00 (Canada) | 16009A | 16009-1130 | 4 | CN | |
SCREW-PILOT AIR | 16014 | 16014-1032 | 4 | ||
PLUNGER | 16016 | 16016-1023 | 4 | ||
JET-NEEDLE | 16017 | 16017-1116 | 4 | ||
VALVE-FLOAT | 16030 | 16030-1024 | 4 | ||
FLOAT | 16031 | 16031-1018 | 4 | ||
VALVE | 16126 | 16126-1047 | 4 | ||
PIPE-BLEEDER | 49122 | 49122-1012 | 4 | ||
SCREW,FLOAT VALVE | 92009 | 92009-1168 | 4 | ||
CLAMP | 92037 | 92037-1303 | 4 | ||
PIN | 92043 | 92043-1112 | 4 | ||
"O" RING,OVERFLOW | 92055 | 92055-1071 | 4 | ||
RING-0 | 92055A | 92055-1126 | 4 | ||
RING-O | 92055B | 92055-1127 | 4 | ||
RING-0,FLOAT CHAMBER | 92055C | 92055-1128 | 4 | ||
RING-O | 92055D | 92055-1134 | 4 | ||
JET-MAIN,#110 | 92063 | 92063-1133 | 4 | ||
JET-PILOT | 92064 | 92064-1055 | 4 | ||
PLUG,PILOT SCREW | 92066 | 92066-1051 | 4 | US | |
SCREW,DRAIN | 92066A | 92066-1065 | 4 | ||
SPRING | 92081 | 92081-1441 | 4 | ||
SPRING | 92081A | 92081-1461 | 4 | ||
SCREW PAN HEAD 4X8 | 220 | 220B0408 | 14 | ||
SCREW-PAN-CRSOSS,4X12 | 220A | 220B0412 | 16 | ||
WASHER SPRING 4MM | 461 | 461F0400 | 16 |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP (Canada) | |
REF # | 11012A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | CN |
FILTER,FLOAT VALVE | |
REF # | 14043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TOP-CHAMBER,CR PLATED | |
REF # | 16005 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAT-SPRING | |
REF # | 16007 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NEEDLE-JET,#4A02 | |
REF # | 16009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | US |
NEEDLE-JET,#4A00 (Canada) | |
REF # | 16009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | CN |
SCREW-PILOT AIR | |
REF # | 16014 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUNGER | |
REF # | 16016 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-NEEDLE | |
REF # | 16017 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE-FLOAT | |
REF # | 16030 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FLOAT | |
REF # | 16031 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIPE-BLEEDER | |
REF # | 49122 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,FLOAT VALVE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
"O" RING,OVERFLOW | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-0 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-0,FLOAT CHAMBER | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-MAIN,#110 | |
REF # | 92063 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-PILOT | |
REF # | 92064 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG,PILOT SCREW | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | US |
SCREW,DRAIN | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 4X8 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SCREW-PAN-CRSOSS,4X12 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
WASHER SPRING 4MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
