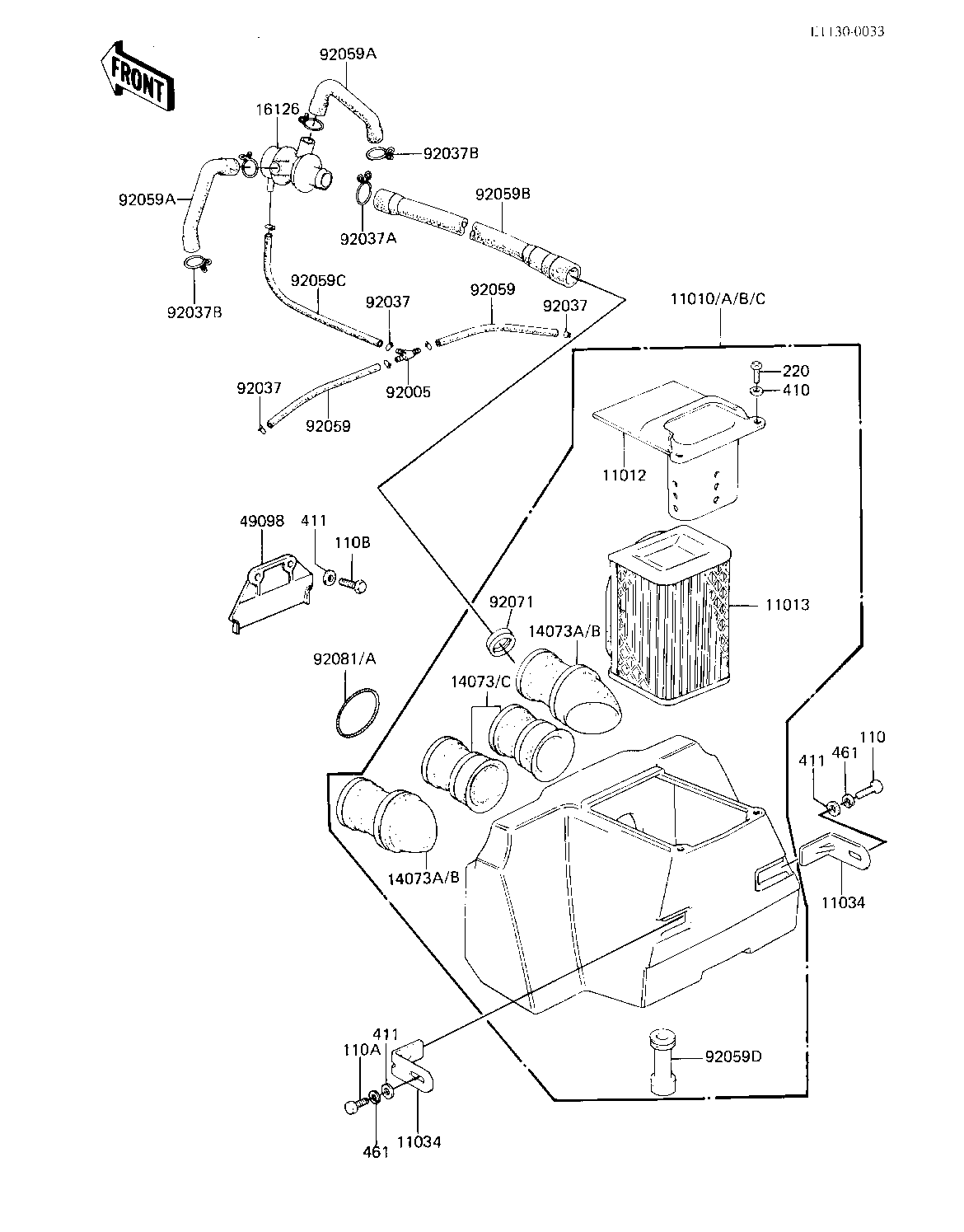

1982 KZ550-A3 - AIR CLEANER ('82-'83 A3/A4)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-ASSY-AIR | 11010 | 11010-1103 | 1 | US | |
FILTER-ASSY-AIR (Canada) | 11010A | 11010-1104 | 1 | CN | |
FILTER-ASSY-AIR,AP | 11010B | 11010-1160 | 1 | US | |
ELEMENT, AIR FILTER | 11013 | 11013-1013 | 1 | ||
BRACKET,AIR CLEANER | 11034 | 32070-038 | 2 | ||
INLET DUCT,#2,3 | 14073 | 11015-057 | 1 | ||
INLET PIPE,#1.4 | 14073A | 11015-063 | 2 | ||
VALVE ASSY,AIR SWITCH | 16126 | 16126-1017 | 1 | US | |
BAFFLE PLT,AIR CLEANE | 49098 | 11019-003 | 1 | ||
FITTING,TUBE | 92005 | 92005-1017 | 1 | US | |
CLAMP-PIPE | 92037 | 92037-072 | 6 | US | |
CLAMP | 92037A | 92037-1076 | 1 | US | |
CLAMP,BREATHER TUBE | 92037B | 92037-213 | 4 | US | |
TUBE | 92059A | 92059-1034 | 2 | US | |
TUBE,19X21X340L | 92059B | 92059-1039 | 1 | US | |
TUBE,4X9X220L | 920590 | 92059-1040 | 1 | US | |
TUBE,BREATHER,10X63L | 92059D | 92059-1200 | 1 | ||
GROMMET,AIR CLEANER | 92071 | 92071-1013 | 1 | US | |
SPRING COIL | 92081 | 92081-047 | 4 | ||
BOLT-UPSET,6X12 | 110 | 112G0612 | 1 | ||
BOLT-UPSET 6X14 | 110A | 112B0614 | 1 | ||
BOLT-UPSET | 110B | 112G0618 | 2 | ||
SCREW PAN HEAD 6X12 | 220 | 220B0612 | 2 | ||
WASHER PLAIN 6MM | 410 | 410B0600 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 2 |
