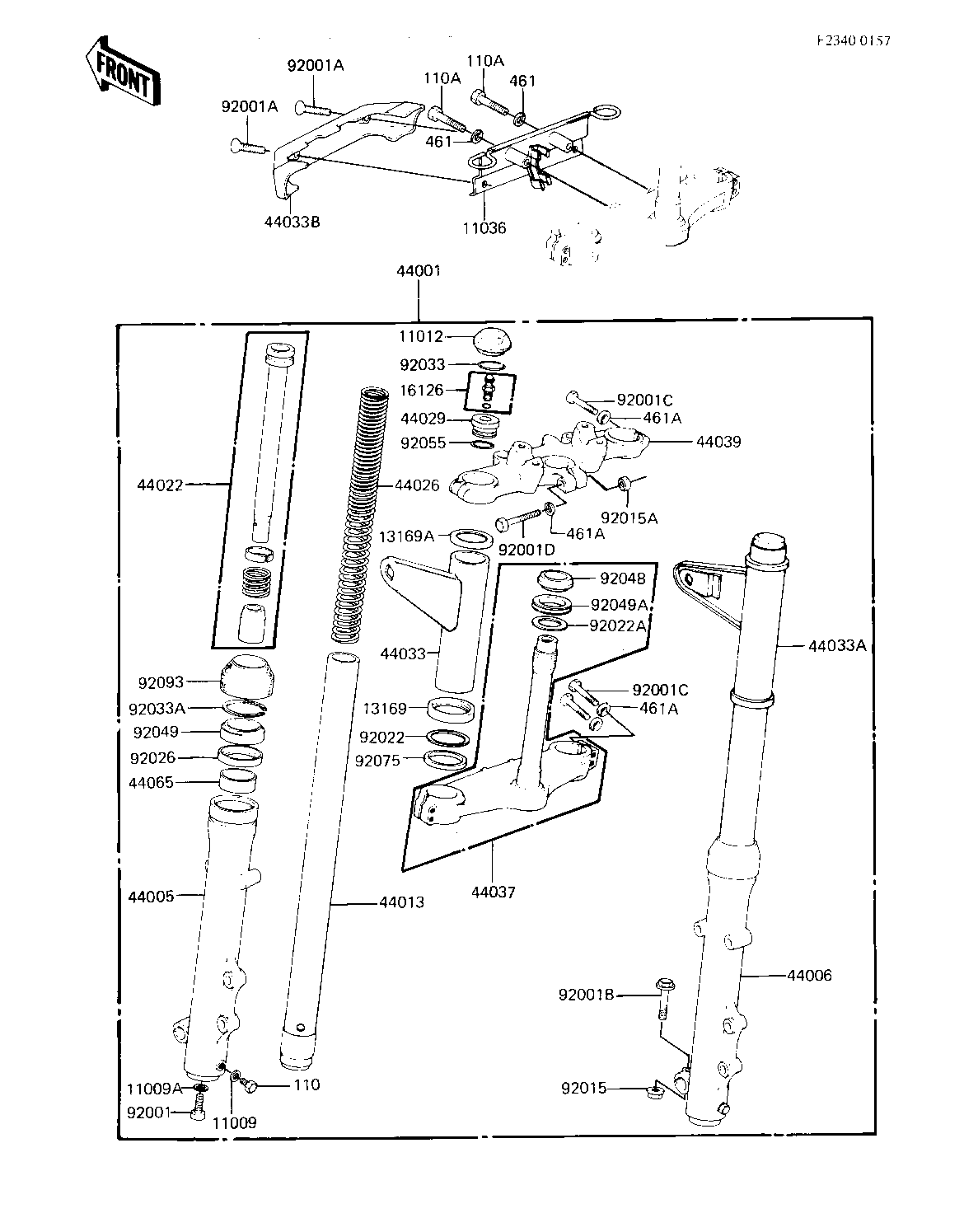

1983 KZ550-A4 - FRONT FORK (KZ550-A4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN PLUG 11009 44045-047 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP, FORK TOP 11012 11012-1151 2
BRACKET-A 11036 11036-1210 1
GUIDE,FORK COVER,LOW 13169 13169-1134 2
GUIDE,FORK COVER,UPPE 13169A 13169-1135 1
VALVE ASSY,AIR 16126 16126-1025 2
FORK-FRONT 44001 44001-1428 1
PIPE-LEFT FORK OUTER 44005 44005-1119 1
PIPE-RIGHT FORK OUTER 44006 44006-1119 1
PIPE-FORK INNER 44013 44013-1044 2
CYLINDER-FORK 44022 44022-1051 2
SPRING,FORK INNER 44026 44026-1077 2
SEAT,FORK SPRING 44029 44029-1019 2
COVER-FORK,LH,BLACK 44033 44033-1058 1
COVER-FORK,RH,BLACK 44033A 44033-1059 1
COVER-FORK 44033B 44033-1073 1
STEM,STEERING 44037 44037-1013 1
HEAD,STEERING STEM 44039 44039-1011 1
BUSHING-FRONT FORK 44065 44065-1021 2
BOLT,FORK CYLINDER 92001 44041-078 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
BOLT,FLANGED,8X45 92001B 92001-1579 1
BOLT,8X40 92001C 92001-1739 6
BOLT,8X55 92001D 92001-1740 1
NUT-8MM 92015 92015-1022 1
NUT,8MM 92015A 92015-1235 1
WASHER,FORK COVER 92022 92022-1111 2
WASHER,PLAIN 92022A 92022-231 1
SPACER,FORK 92026 92026-1038 2
CIRCLIP,FORK TOP 92033 92033-1023 2
RING,SNAP 92033A 92033-1055 2
CONE,STEERING STEM 92048 92047-012 1
SEAL-OIL,FORK 92049 92049-1063 2
OIL SEAL,STEERING STM 92049A 92056-003 1
"0" RING 92055 92055-1034 2
DAMPER RUBBER,FORK 92075 92075-1137 2
SEAL,DUST 92093 92093-1047 2
BOLT HEX HEAD 6X8 110 110B0608 2
BOLT,6X40 110A 110C0640 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 7
