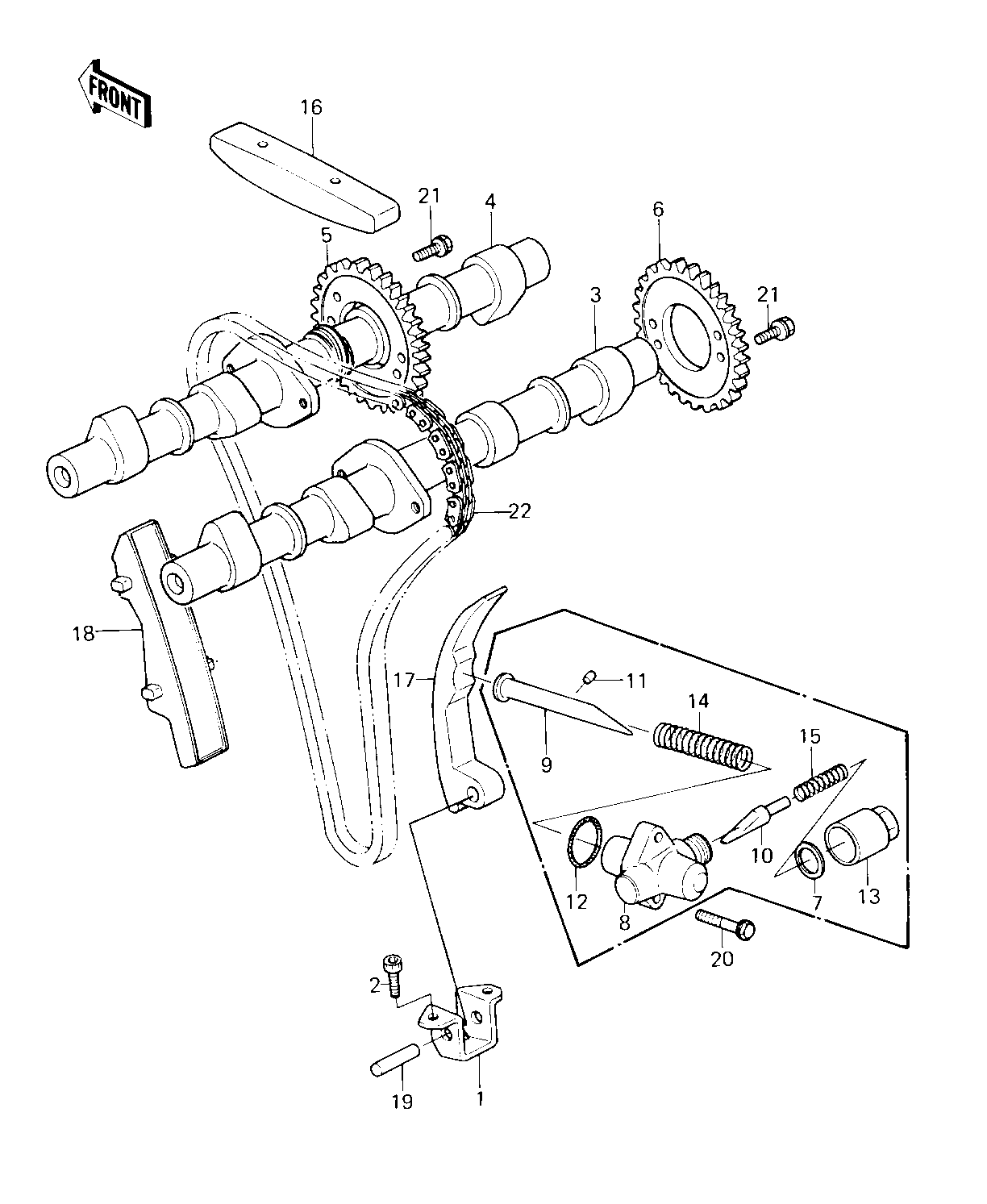

1981 LTD - CAMSHAFTS/CHAIN/TENSIONER ('80-'81 C1/C2
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CHAIN GUIDE | 1 | 11034-1240 | 1 | ||
| BOLT,ALLEN,6X18 | 2 | 120P0618 | 2 | ||
| CAM SHAFT,INLET | 3 | 12044-1003 | 1 | ||
| CAM SHAFT,EXHAUST | 4 | 12044-1004 | 1 | ||
| SPROCKET,CAM,42T | 5 | 12046-1019 | 1 | ||
| SPROCKET,CAM,42T | 6 | 12046-1019 | 1 | ||
| WASHER,18.3X24X1.4T | 7 | 92022-1175 | 1 | ||
| TENSIONER,CAM CHAIN | 8 | 12049-1009 | 1 | ||
| ROD,PUSH,CAM CHAIN | 9 | 13116-1020 | 1 | ||
| ROD,PUSH,CAM CHAIN | 10 | 13116-1012 | 1 | ||
| PIN DOWEL 4X8 | 11 | 610A0408 | 1 | ||
| "O" RING,22M/M | 12 | 670E2022 | 1 | ||
| CAP,TENSIONER,18M/M | 13 | 92015-1100 | 1 | ||
| SPRING,TENSIONER | 14 | 92081-1075 | 1 | ||
| SPRING,TENSIONER | 15 | 92081-1302 | 1 | ||
| GUIDE,CAM CHAIN,HEAD | 16 | 12053-1018 | 1 | ||
| GUIDE-CHAIN,CAM,RR | 17 | 12053-1113 | 1 | ||
| GUIDE,CAM CHAIN,FRONT | 18 | 12053-1022 | 1 | ||
| PIN,DOWEL,8X25 | 19 | 551A0825 | 1 | ||
| BOLT,FLANGED,6X25 | 20 | 130G0625 | 2 | ||
| BOLT,SPROCKET FITTING | 21 | 92003-208 | 4 | ||
| CHAIN,CAM,82RH2015-14 | 22 | 92057-1290 | 1 |
