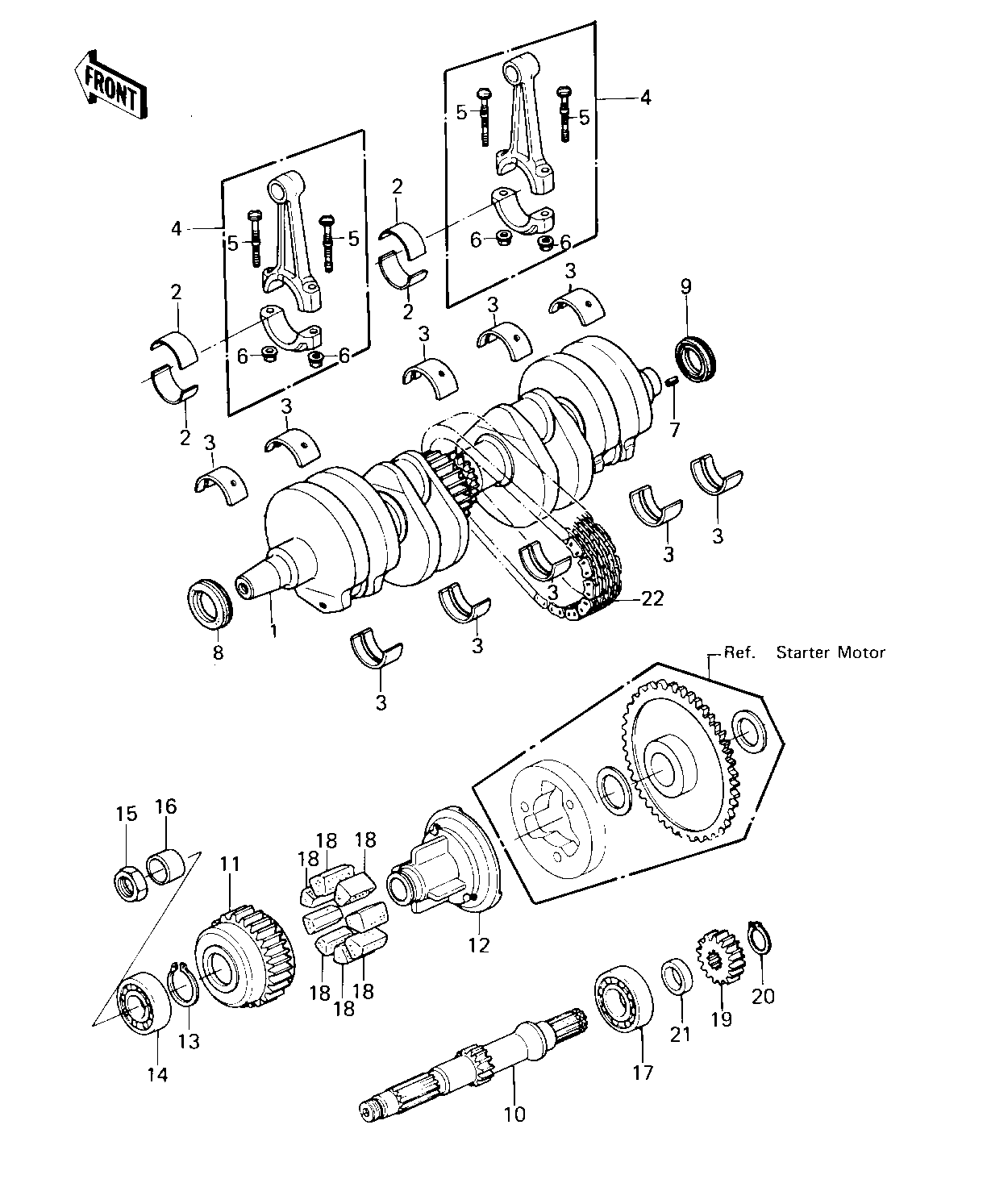

1981 LTD - CRANKSHAFT/SECONDARY SHAFT ('80-'81 C1/C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANK SHAFT ASSY | 1 | 13031-1014 | 1 | ||
| BUSHING,CONNECTING RO | 2 | 13034-1067 | AR | "BLUE MARK" | |
| BUSHING,CONNECTING RO | 2 | 13034-1068 | AR | "BLACK MARK" | |
| BUSHING,CONNECTING RO | 2 | 13034-1069 | AR | "BROWN MARK" | |
| METAL,BRG,"BROWN"MARK | 3 | 13034-1016 | AR | "BROWN MARK" | |
| METAL,BRG"BLACK"MARK | 3 | 13034-1017 | AR | "BLACK MARK" | |
| METAL,BRG,"BLUE"MARK | 3 | 13034-1018 | AR | "BLUE MARK" | |
| ROD-ASSY-CONNECTING | 4 | 13251-1004-JJ | 4 | "E" MARK | |
| ROD-ASSY-CONNECTING | 4 | 13251-1004-JJ | 4 | "G" MARK | |
| BOLT,CONNECTING ROD | 5 | 92001-1793 | 8 | ||
| NUT,CONNECTING ROD | 6 | 92016-060 | 8 | ||
| PIN-SPRING,4X8 | 7 | 555A0408 | 1 | ||
| OIL SEAL,HSCY 25X36X7 | 8 | 92049-1013 | 1 | ||
| OIL SEAL,HSCY25397 | 9 | 92050-081 | 1 | ||
| SHAFT,SECONDARY | 10 | 13127-1007 | 1 | ||
| COUPLING,OUTER | 11 | 42034-1004 | 1 | ||
| COUPLING,INNER | 12 | 42034-1005 | 1 | ||
| CIRCLIP 28MM | 13 | 480J2800 | 1 | ||
| BEARING BALL #6205 | 14 | 601B6205 | 1 | #6205 | |
| NUT 18MM | 15 | 92015-019 | 1 | ||
| BUSHING,SECONDARY | 16 | 92028-1037 | 1 | ||
| BEARING,BALL,#63/22X | 17 | 92045-1017 | 1 | #63/22X | |
| DAMPER RUBBER,COUPLNG | 18 | 92075-1070 | 8 | ||
| GEAR,PRIMARY,26T | 19 | 13097-1008 | 1 | ||
| CIRCLIP,22MM | 20 | 480J2200 | 1 | ||
| COLLAR | 21 | 92027-1438 | 1 | ||
| CHAIN,#63-139X50L | 22 | 92057-1011 | 1 |
