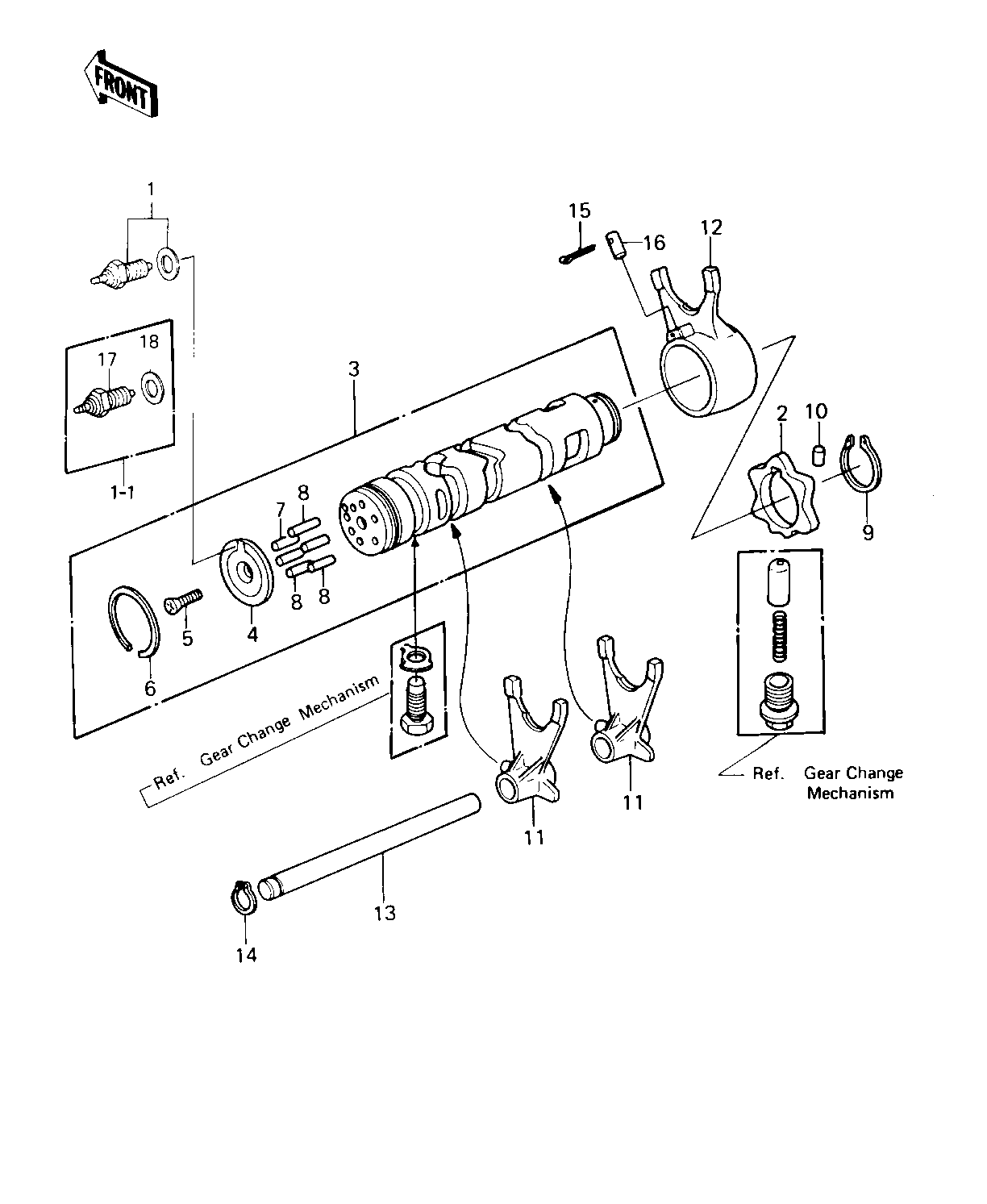

1981 LTD - GEAR CHANGE DRUM & FORKS ('80-'81 C1/C2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH,NEUTRAL | 1 | 13151-5002 | 1 | ||
SWITCH,NEUTRAL | 1-1 | 13151-5002 | 1 | ||
CAM-CHANGE DRUM | 2 | 13145-1058 | 1 | ||
DRUM-ASSY-CHANGE | 3 | 13239-1119 | 1 | ||
HOLDER,CHANGE DRUM PI | 4 | 13091-1104 | 1 | ||
HOLDER,CHANGE DRUM PI | 4 | 13091-1104 | 1 | ||
SCREW CNTSNK HD 6X20 | 5 | 221B0620 | 1 | ||
CIRCLIP,37MM | 6 | 92033-035 | 1 | ||
PIN GEAR CHANGE DRUM | 7 | 92042-014 | 1 | ||
PIN,GEAR CHNGE DRUM | 8 | 92042-030 | 5 | ||
CIRCLIP,30MM | 9 | 480J3000 | 1 | ||
PIN-DOWEL,4X6 | 10 | 610A0406 | 1 | ||
FORK-SHIFT,OUTPUT | 11 | 13140-1062 | 2 | ||
SHIFT FORK,GEAR SHIFT | 12 | 13140-1016 | 1 | ||
ROD-SHIFT | 13 | 49047-5003 | 1 | ||
CIRCLIP 12MM | 14 | 480J1200 | 1 | ||
PIN COTTER 3.0X20 | 15 | 550D3020 | 1 | ||
DOWEL PIN,8X18 | 16 | 92042-021 | 1 | ||
SWITCH,NEUTRAL | 17 | 13151-1007 | 1 | ||
GASKET CHECK VALVE | 18 | 92065-058 | 1 |
