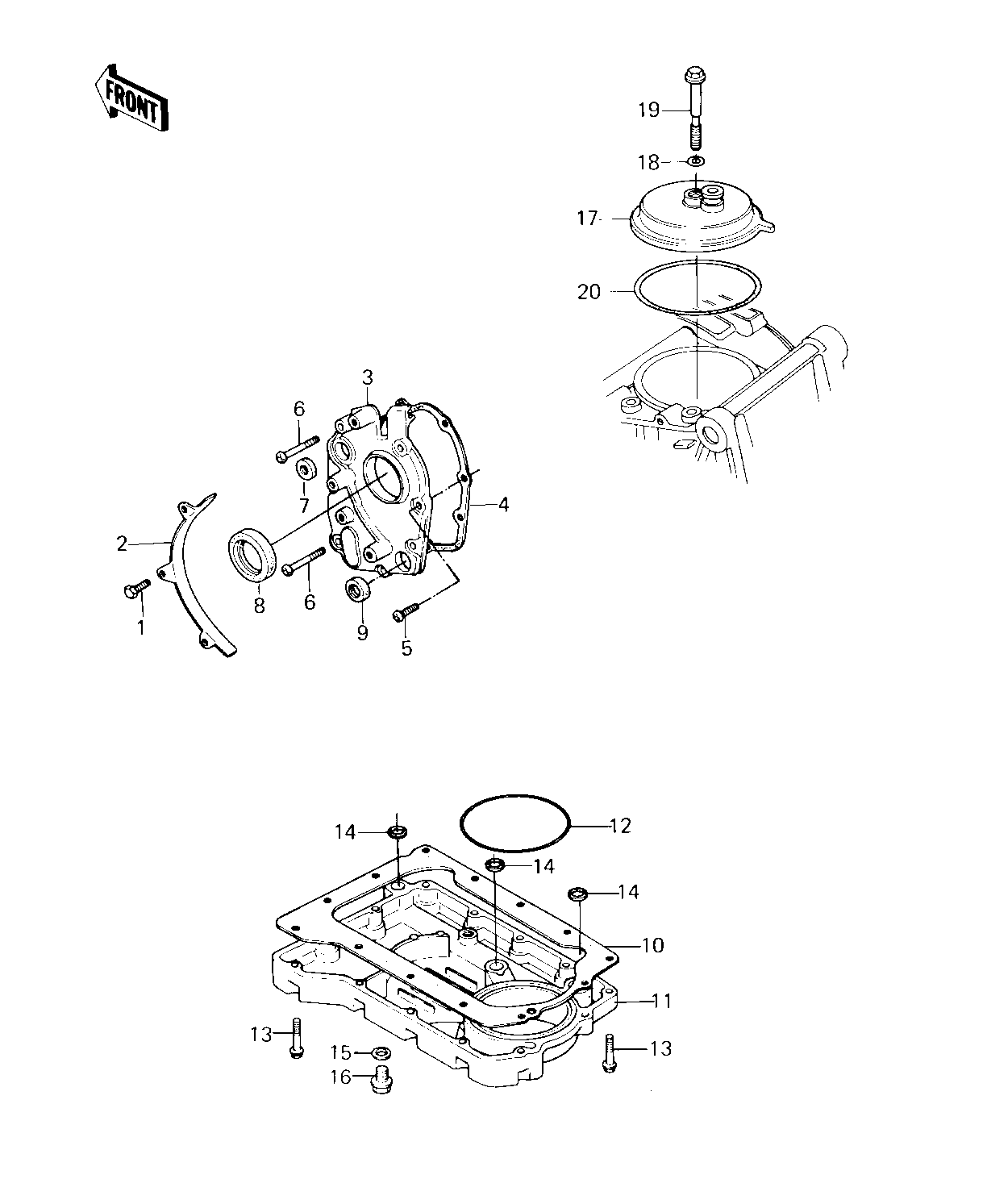

1981 LTD - BREATHER COVER/OIL PAN ('80-'81 C1/C2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET 6X14 | 1 | 112B0614 | 3 | ||
GUIDE,CHAIN | 2 | 12053-1006 | 1 | ||
COVER,MISSION | 3 | 14024-011 | 1 | ||
GASKET,TRANSMISSION C | 4 | 11060-1056 | 1 | ||
SCREW PAN HEAD 6X20 | 5 | 220B0620 | 5 | ||
SCREW PAN HEAD 6X40 | 6 | 220B0640 | 2 | ||
OIL SEAL,SD-8187 | 7 | 92049-1017 | 1 | ||
OIL SEAL SC325210 | 8 | 92050-024 | 1 | ||
OIL SEAL,TB13225.5 | 9 | 92051-005 | 1 | ||
GASKET,OIL PAN | 10 | 11060-1057 | 1 | ||
PAN,OIL | 11 | 49034-1002 | 1 | ||
"0" RING,90MM | 1 | 671B2590 | 1 | ||
BOLT,FLANGED,6X25 | 13 | 130G0625 | 13 | ||
"O" RING | 14 | 92055-077 | 3 | ||
GASKET,DRIN PLUG | 15 | 92065-097 | 1 | ||
PLUG,OIL DRAIN,12X15 | 16 | 92066-1174 | 1 | ||
BODY-BREATHER | 17 | 14070-1008 | 1 | ||
"O" RING,8MM | 18 | 670B1508 | 1 | ||
BOLT,HEX HEAD,8X72 | 19 | 92003-107 | 1 | ||
"O" RING,91MM | 20 | 92055-052 | 1 |
