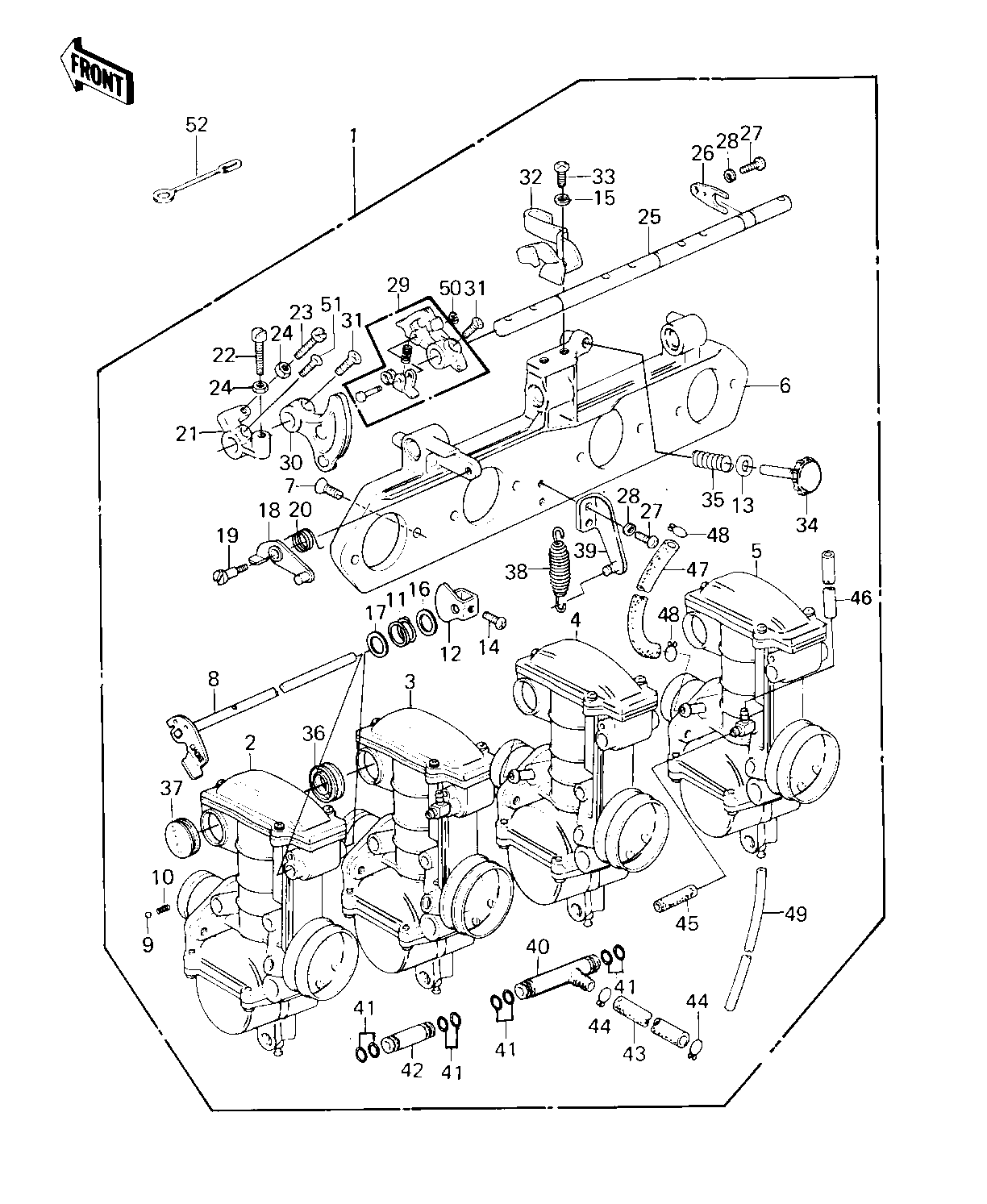

1981 LTD - CARBURETOR ASSY ('80-'81 C1/C2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY, 1 16001-1210 1
CARBURETOR ASSY, (Canada) 1 16001-1285 1 USE FOR CANADA MARKET
CARBURETOR,L.H,OUTSID 2 16001-1255 1 USE FOR 16001-1210
CARBURETOR,L.H,OUTSID (Canada) 2 16001-1305 1 USE FOR 16001-1285
CARBURETOR,L.H,INSIDE 3 16001-1254 1 USE FOR 16001-1210
CARBURETOR,L.H,INSIDE (Canada) 3 16001-1306 1 USE FOR 16001-1285
CARBURETOR,R.H,INSIDE 4 16001-1253 1 USE FOR 16001-1210
CARBURETOR,R.H,INSIDE (Canada) 4 16001-1307 1 USE FOR 16001-1285
CARBURETOR,R.H,OUTSID 5 16001-1252 1 USE FOR 16001-1210
CARBURETOR,R.H,OUTSID (Canada) 5 16001-1308 1 USE FOR 16001-1285
BRACKET,CARBURETOR 6 11034-1588 1
SCREW CNTSNK HD 6X16 7 221B0616 8
SHAFT,CHOKE LEVER 8 16041-1021 1
BALL STEEL 5/32' 9 600A0500 1
SPRING, CHOKE LEVER 10 92081-1195 1
SPRING,CHOKE LEVER 11 92081-1191 1
CAM,CHOKE 12 49060-1002 1
WASHER PLAIN 6MM 13 411B0600 1
SCREW PAN HEAD 4X8 14 220B0408 1
WASHER SPRING 6MM 15 461F0600 2
WASHER,CHOKE LEVER 16 92022-1168 1
WASHER,CHOKE LEVER 17 92022-1169 1
LEVER ASSY,TIMING 18 13168-1053 1
SCREW,TIMING LEVER 19 92009-1081 1
SPRING,TIMING LEVER 20 92081-1192 1
BRACKET,THROTTLE STOP 21 11034-1590 1
SCREW,TIMING LEVER 22 92009-1082 1
SCREW,THROTTLE STOP 23 92009-1083 1
NUT 5MM 24 312B0500 2
SHAFT,THROTTLE 25 16041-1012 1
PLATE,THROTTLE SHAFT 26 11034-1591 1
SCREW-PAN-CROS 27 220B0514 3
WASHER SPRING 5MM 28 461F0500 3
LEVER ASSY,THROTTLE 29 13168-1054 1
LEVER,ASSY,THROTTLE 30 13168-1055 1
SCREW,CNTSNK HD,5X14 31 221B0514A 2
BRACKET,THROTTLE CABL 32 11034-1592 1
SCREW PAN HEAD 6X14 33 220B0614 2
SCREW,THROTTLE STOP 34 16021-1017 1
SPRING,ADJUST SCREW 35 92081-1193 1
DUST SEAL,THROTTLE 36 92093-1033 6
CAP,THROTTLE SHAFT 37 92093-1034 2
SPRING,THROTTLE RETRN 38 92081-1381 1
BRACKET,THROTTLE RETN 39 11034-1593 1
"T"JOINT,FUEL 40 92005-1020 1
"O" RING,7MM 41 670B1507 12
JOINT,FUEL 42 92005-1021 2
HOSE,FUEL,7X12X180 43 92059-1098 1
CLAMP,FUEL HOSE 44 92037-1158 2
HOSE,AIR VENT,4.5X30 45 92059-1099 2
HOSE,AIR VENT,4.5X300 46 92059-1100 2
HOSE,NEGATIVE PRESSUR 47 92059-1101 1
CLAMP,NEGATIVE PRESSU 48 92037-1159 2
HOSE,OVERFLOW,3.5X550 49 92059-1102 4
CIRCLIP,3M/M 50 482J3000 1
SCREW.CNTSNK HD,4X12 51 92009-1080 1
CLAMP,OVER FLOW PIPE 52 92037-134 1
