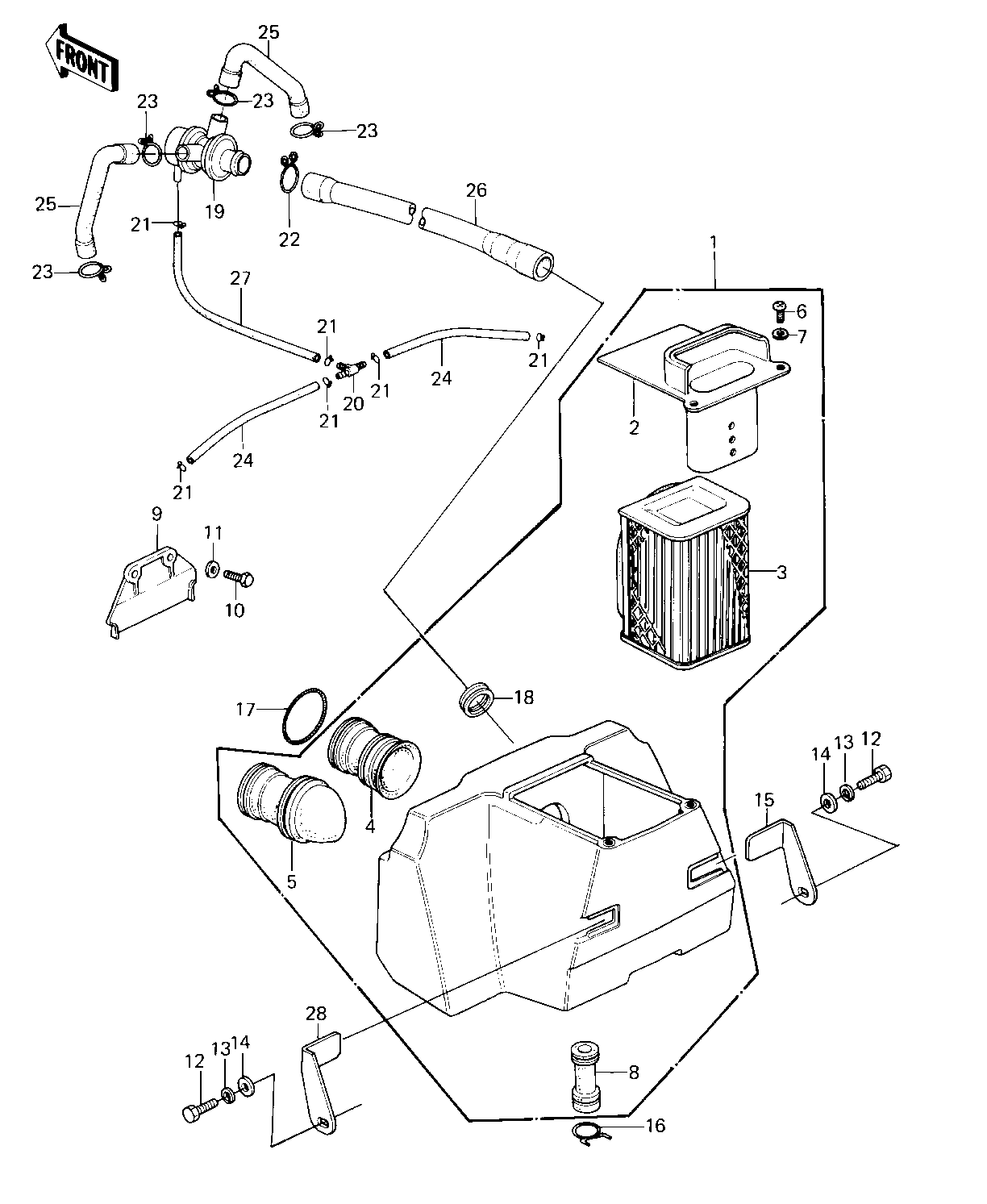

1981 LTD - AIR CLEANER ('80-'81 C1/C2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 1 11010-1103 1
11010-1104 (Canada) 1 11010-1054 1 USE FOR CANADA
CAP,AIR FILTER 2 11012-1183 1
ELEMENT,AIR CLNR 3 11013-1013 1
INLET DUCT,#2,3 4 11015-057 2
INLET PIPE,#1.4 5 11015-063 2
SCREW PAN HEAD 6X12 6 220B0612 2
WASHER PLAIN 6MM 7 410B0600 2
TUBE,BREATHER,10X63L 8 92059-1200 1
BAFFLE PLT,AIR CLEANE 9 11019-003 1
BOLT-UPSET 10 112G0618 2
WASHER PLAIN 6MM 11 411B0600 2
BOLT-UPSET,6X12 12 112G0612 2
WASHER SPRING 6MM 13 461F0600 2
WASHER PLAIN 6MM 14 411B0600 2
BRACKET,AIR CLEANER,R 15 11034-1783 1
CLAMP BREATHER PIPE 16 92037-028 1
SPRING COIL 17 92081-047 4
GROMMET,AIR CLEANER 18 92071-1013 1 USE FOR 11010-1022
VALVE ASSY,AIR SWITCH 19 16126-1017 1 USE FOR U.S.A.
FITTING,TUBE 20 92005-1017 1 USE FOR U.S.A.
CLAMP-PIPE 21 92037-072 6 USE FOR U.S.A.
CLAMP 22 92037-1076 1 USE FOR U.S.A.
CLAMP,BREATHER TUBE 23 92037-213 4 USE FOR U.S.A.
TUBE,VACUUM,LONG 24 92059-1162 2 USE FOR U.S.A.
TUBE 24 92059-1034 2 USE FOR U.S.A.
TUBE,19X21X340L 26 92059-1039 1 USE FOR U.S.A.
TUBE,4X9X220L 27 92059-1040 1 USE FOR U.S.A.
BRACKET,AIR CLEANER,L 28 11034-1782 1
