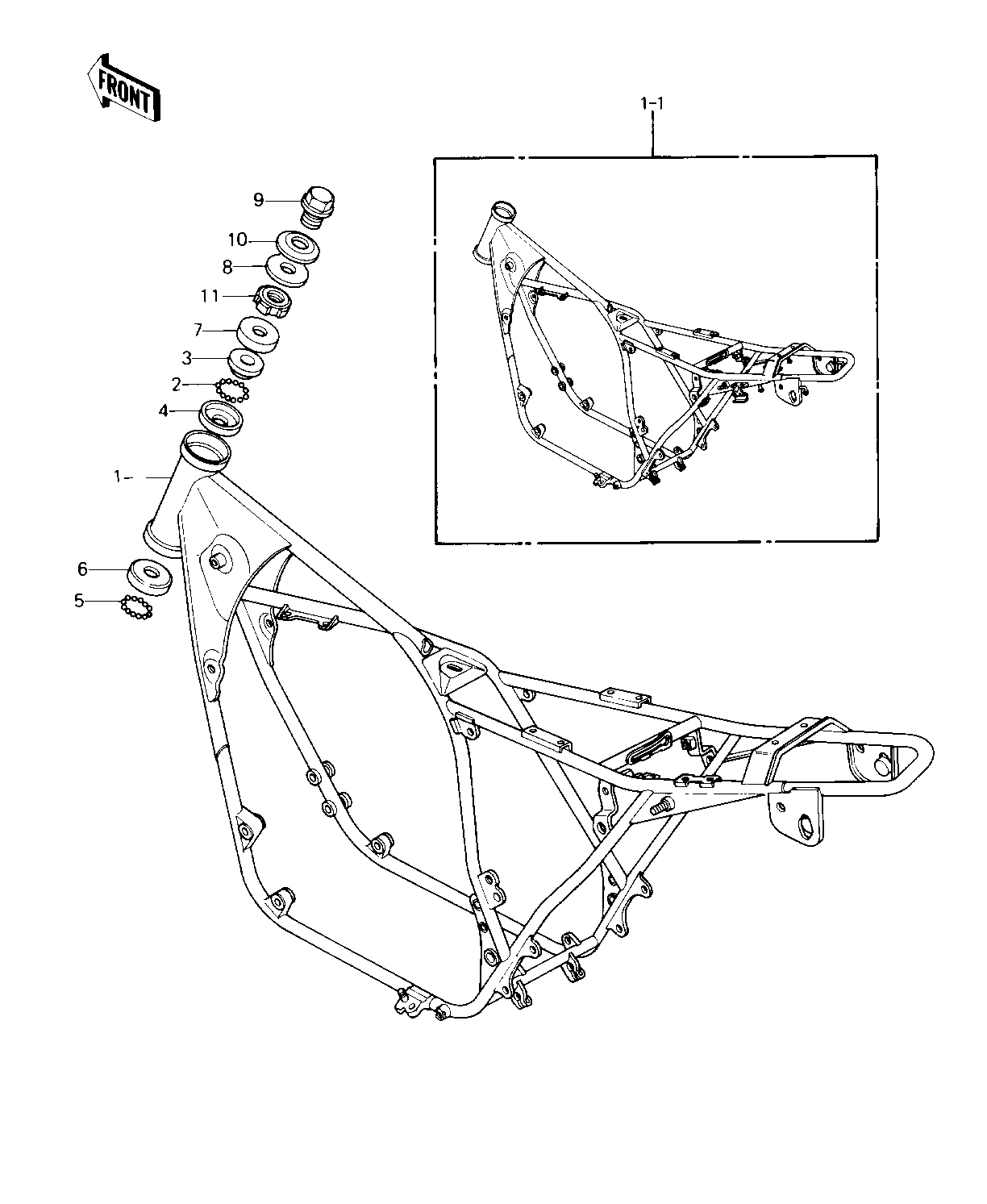

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP 1 32002-1215 1 KZ550-C1
FRAME-COMP 1-1 32002-1215 1 KZ550-C2
BALL STEEL 1/4' 2 600A0800 19
CONE,STRNG STM BRNG 3 92047-011 1
RACE STRNG STEM BERNG 4 92048-006 1
BALL STEEL 1/4' 5 600A0800 20
RACE,STRNG STM BRNG 6 92048-008 1
CAP, STEERING STEM 7 46098-016 1
WASHER,WAVE 8 46100-003 1
BOLT,STEERG STEM HEAD 9 92007-031 1
WASHER,STEERG STM HD 10 92022-230 1
NUT STEERING STEM LCK 11 92090-007 1
