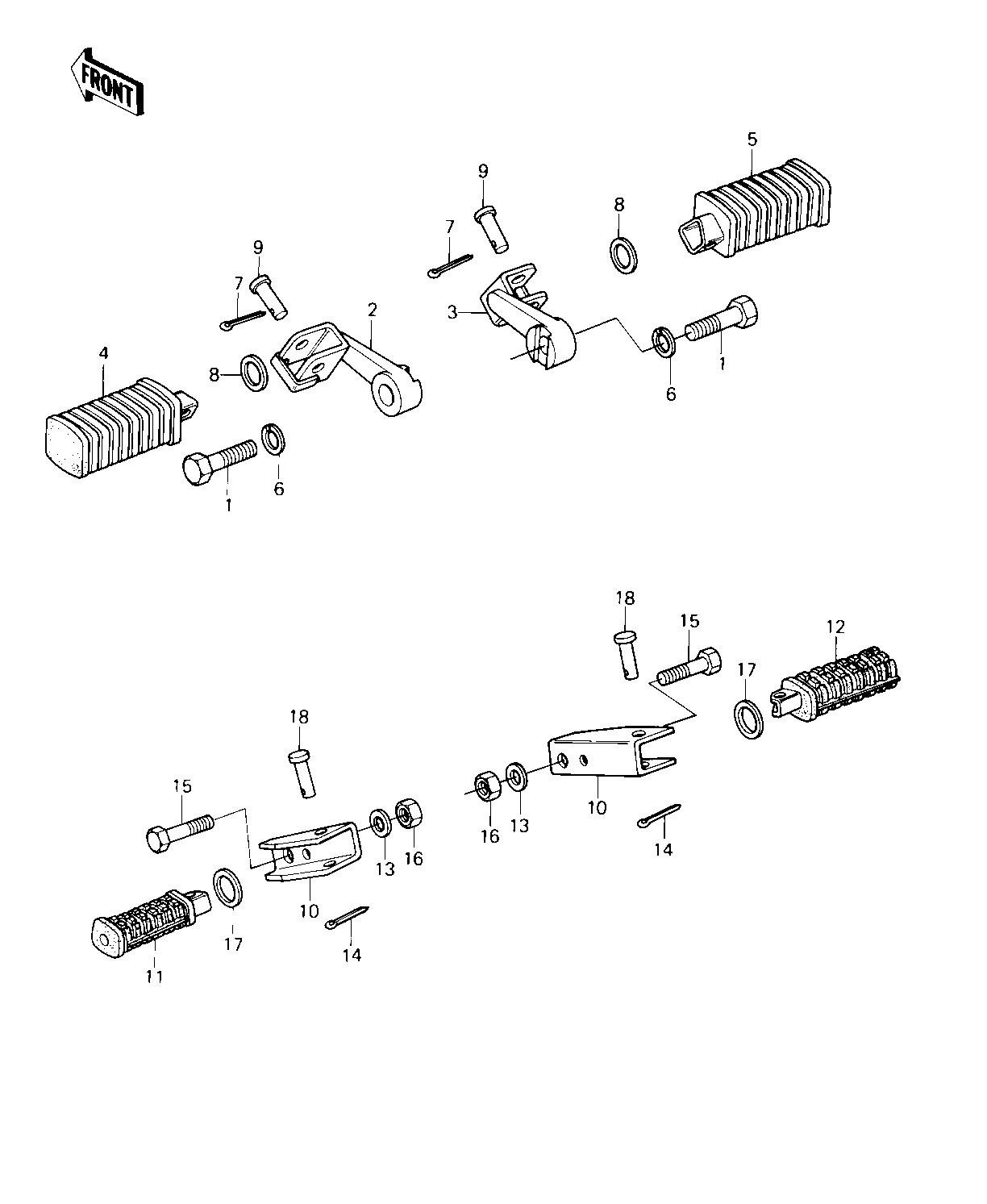

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,12X25 1 113G1225A 2
HOLDER-STEP,FR,LH 2 34003-1115 1
HOLDER-STEP,FR,RH 3 34003-1116 1
STEP-ASSY,FR,RH 4 34028-1018 1
STEP-ASSY,FR,RH 5 34028-1018 1
WASHER SPRING 12MM 6 461F1200 2
PIN COTTER 2.5X16 7 550D2516 2
WASHER,PLAIN 8 92022-250 2
PIN,FOOTREST BAR FIT 9 92043-115 2
HOLDER,REAR FOOTREST 10 34003-1025 2
STEP,FOOTREST,REAR,LH 11 34028-1009 1
STEP,FOOTREST,REAR,RH 12 34028-1010 1
WASHER PLAIN 10MM 13 411B1000 2
PIN,COTTER,2.0X12 14 550D2012 2
BOLT,HEX HEAD 10X35 15 92001-1252 2
NUT,LOCK,10MM 16 92019-021 2
WASHER-PLAIN 17 92022-181 2
PIN 18 92043-1464 2
