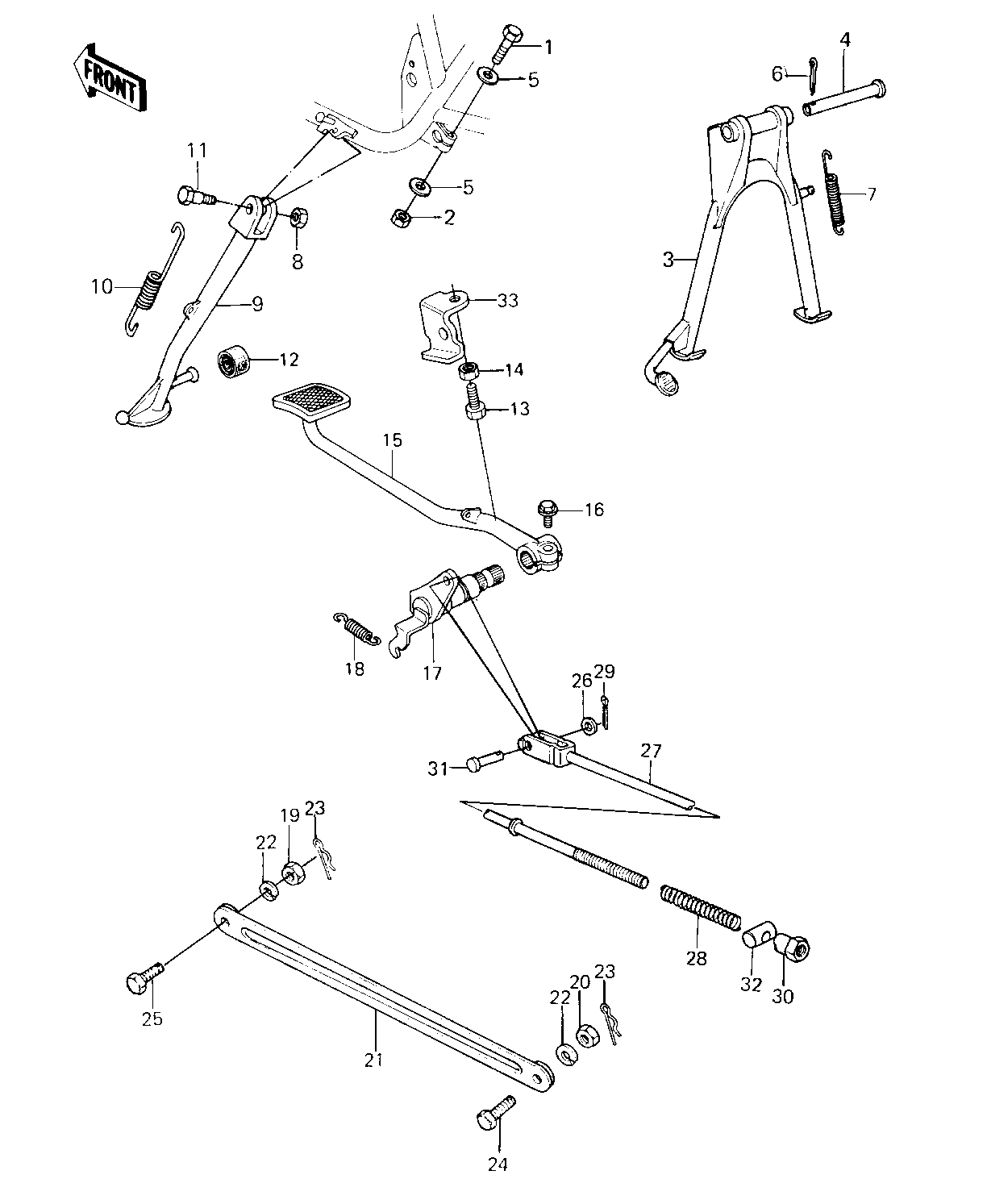

1981 LTD - STANDS/BRAKE PEDAL ('80-'81 C1/C2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,8X40 1 114G0840 2
NUT,8M/M 2 317B0800 2
STAND-MAIN 3 34011-1026 1
SHAFT,MAIN STAND 4 34019-016 1
WASHER PLAIN 8MM 5 410B0800 4
PIN COTTER 3.0X30 6 550D3030 1
SPRING,MAIN STAND 7 92081-1265 1
NUT 10MM 8 315B1000 1
STAND-SIDE 9 34024-1047 1
SPRING,SIDE STAND 10 34025-005 1
BOLT-SIDE STAND 11 92003-079 1
DAMPER,STAND STOPPER 12 92075-1205 1
BOLT HEX HEAD 13 110B0620 1
NUT 6MM 14 311B0600 1
PEDAL,BRAKE 15 43001-1048 1
BOLT,HEX HEAD,8X25 16 92001-1172 1
SHAFT,BRAKE 17 43004-1013 1
SPRING,BRAKE PEDAL 18 92081-1147 1
NUT,10MM 19 314B1000 1
NUT 10MM 20 315B1000 1
TORQUE LINK-REAR BRK 21 43007-027 1
WASHER SPRING 10MM 22 461F1000 2
PIN,SNAP 23 554A0800 2
BOLT HEX HEAD 10MM 24 92003-034 1
BOLT 25 92003-096 1
WASHER PLAIN 6MM 26 410B0600 1
ROD,BRAKE 27 43011-1014 1
SPRING,BRAKE ROD 28 43012-001 1
PIN COTTER 2.0X15 29 550D2015 1
NUT-BRAKE ROD ADJUST 30 92015-042 1
PIN-BRAKE ROD FITTING 31 92043-064 1
PIN-BRAKE ROD 32 92043-065 1
BRACKET,BRAKE PEDAL 33 11034-1824 1
