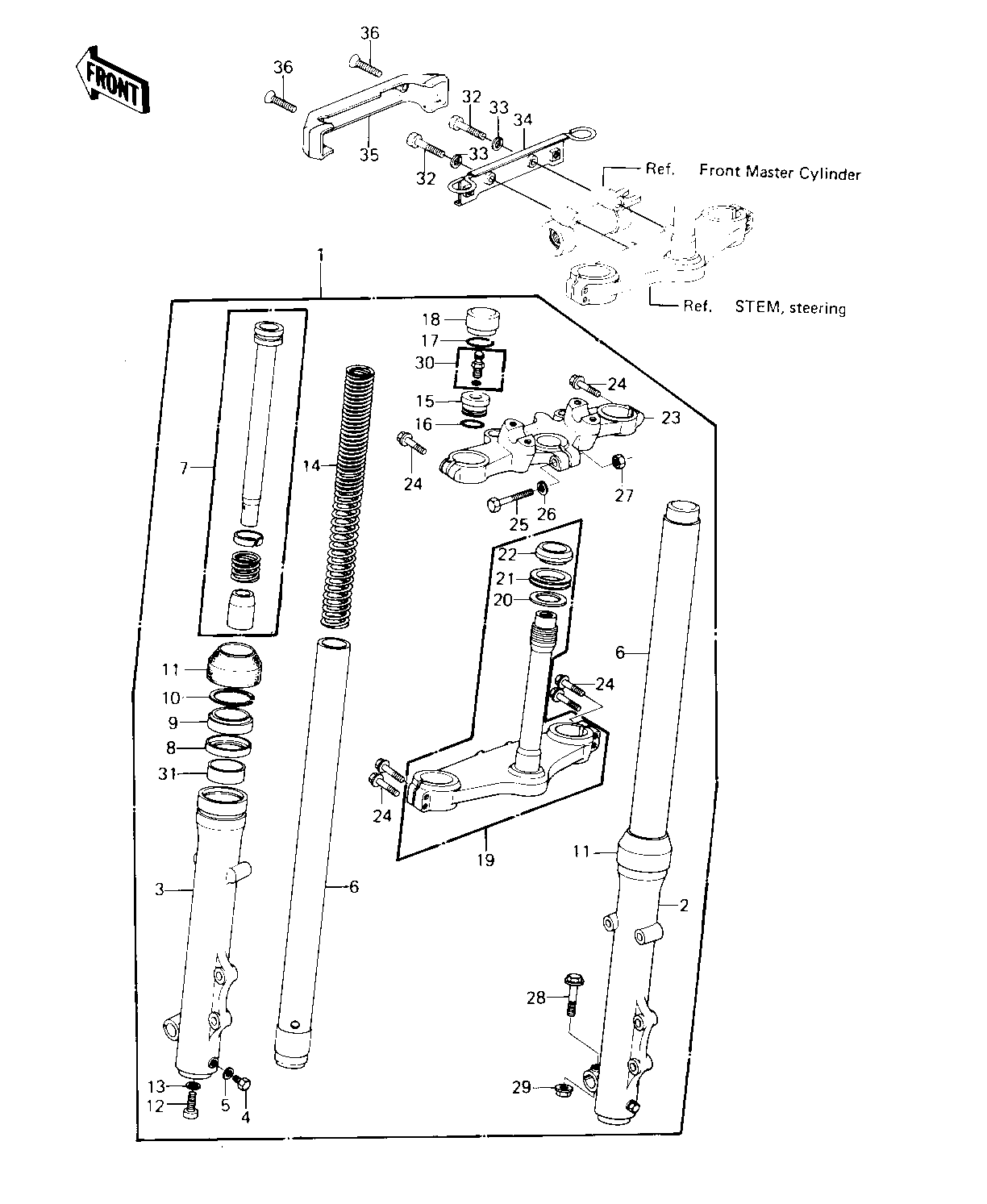

1981 LTD - FRONT FORK ('80-'81 C1/C2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1152 1
TUBE,RH,FORK OUTER 2 44006-1051 1
TUBE,LH,FORK OUTER 3 44005-1050 1
BOLT HEX HEAD 6X8 4 110B0608 2
GASKET,DRAIN PLUG 5 44045-047 2
TUBE,FORK INNER 6 44013-1043 2
CYLINDER-FORK 7 44022-1024 2
SPACER,FORK 8 92026-1038 2
SEAL-OIL,FORK 9 92049-1063 2 KZ550-C1
SEAL-OIL,FORK 9 92049-1063 2 KZ550-C2
RING,SNAP 10 92033-1055 2
SEAL,DUST 11 92093-1047 2 KZ550-C1
SEAL,DUST 11 92093-1047 2 KZ550-C2
BOLT,FORK CYLINDER 12 44041-078 2
GASKET,FORK CYL BOLT 13 44045-051 2
SPRING,FORK INNER 14 44026-1060 2
SEAT,FORK SPRING 15 44029-1019 2
"0" RING 16 92055-1034 2
CIRCLIP,FORK TOP 17 92033-1023 2
CAP,FORK TOP 18 11012-1136 2
STEM,STEERING 19 44037-1013 1
WASHER,PLAIN 20 92022-231 1
OIL SEAL,STEERING STM 21 92056-003 1
CONE,STEERING STEM 22 92047-012 1
HEAD,STEERING STEM 23 44039-1011 1
BOLT,8X40 24 92001-1149 6
BOLT,HEX HEAD,8X55 25 92001-1064 1
WASHER SPRING 8MM 26 461F0800 1
NUT,LOCK,8MM 27 92015-1124 1
BOLT,HEX HEAD,8X45 28 92001-1136 1
NUT,8MM 29 92015-1055 1
VALVE ASSY,AIR 30 16126-1025 2
BUSHING, FORK 31 44065-1011 2
BOLT-UPSET,6X40 32 112G0640 2
WASHER SPRING 6MM 33 461F0600 2
BRACKET,FR FORK COVER 34 11034-1765 1
COVER,FORK 35 44033-1053 1 KZ550-C1
COVER,FORK 35 44033-1054 1 KZ550-C2
SCREW-CSK-RD-CROS 36 222C0518 2
