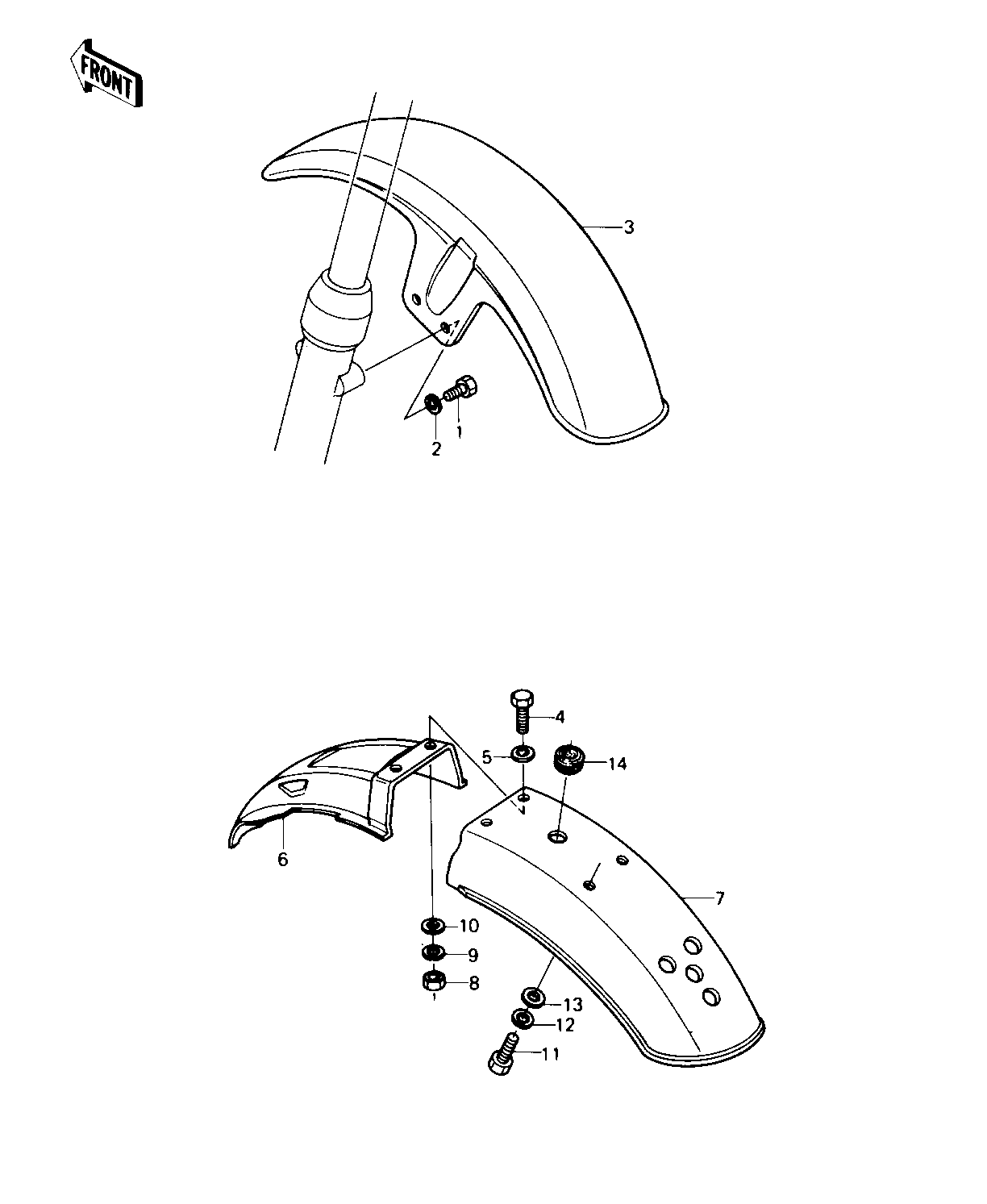

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X16 1 115G0816 4
WASHER SPRING 8MM 2 461F0800 4
FENDER-FR 3 35004-1047 1
BOLT-UPSET 4 112G0618 2
WASHER PLAIN 6MM 5 411B0600 2
FENDER-RR 6 35023-1027 1
FENDER-RR 7 35022-1062 1
NUT 6MM 8 312B0600 2
WASHER SPRING 6MM 9 461F0600 2
WASHER 6.5X20X1.6T 10 92022-125 2
BOLT-UPSET,6X12 11 112G0612 2
WASHER SPRING 6MM 12 461F0600 1
WASHER PLAIN 6MM 13 411B0600 2
GROMMET HARNESS 10MM 14 92071-019 1
