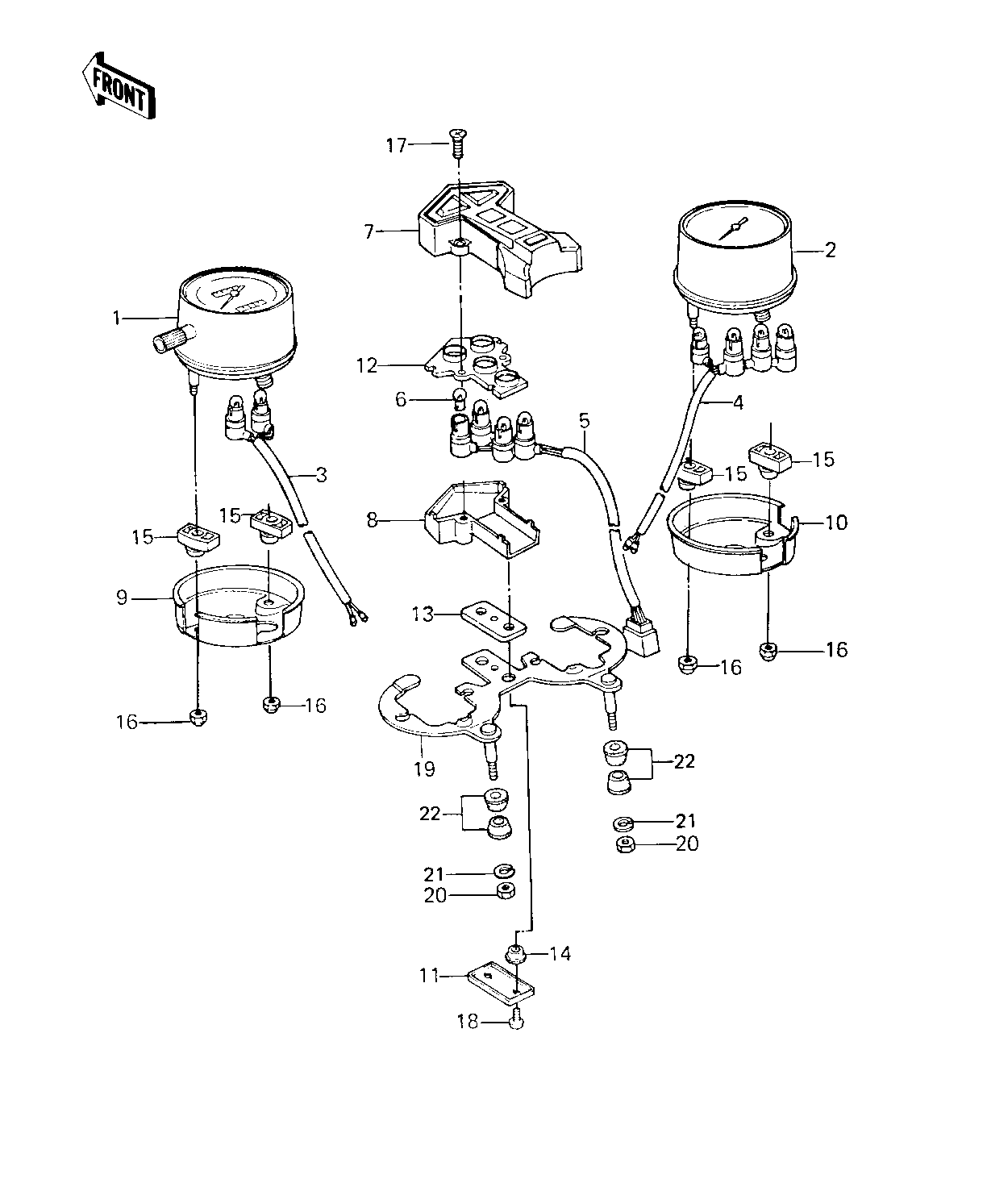

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPEEDOMETER,MPH & KPH | 1 | 25005-1066 | 1 | KZ550-C1 | |
| SPEEDOMETER,MPH | 1 | 25005-1091 | 1 | KZ550-C2 | |
| SPEEDOMETER,KPH (Canada) | 1 | 25005-1036 | 1 | KZ550-C1 | |
| SPEEDOMETER,KPH (Canada) | 1 | 25005-1096 | 1 | KZ550-C2 | |
| TACHOMETER,(X1000RPM) | 2 | 25015-1031 | 1 | KZ550-C1 | |
| TACHOMETER,(X1000RPM) | 2 | 25015-1076 | 1 | KZ550-C2 | |
| SOCKET,ASSY,SPEEDOMET | 3 | 23008-1028 | 1 | KZ550-C1 | |
| SOCKET ASSY,SPEEDOMET | 3 | 23008-1067 | 1 | KZ550-C2 | |
| SOCKET ASSY,TACHOMETR | 4 | 23008-1029 | 1 | KZ550-C1 | |
| SOCKET ASSY,TACHOMETE | 4 | 23008-1066 | 1 | KZ550-C2 | |
| SOCKET ASSY,PILOT BOX | 5 | 23008-1030 | 1 | ||
| BULB 12V 3W | 6 | 92069-018 | 10 | KZ550-C1 | |
| BULB 12V 3W | 6 | 92069-018 | 11 | KZ550-C2 | |
| COVER,PILOT BOX,UPPER | 7 | 25023-1007 | 1 | ||
| COVER,PILOT BOX,LOWER | 8 | 14025-1067 | 1 | ||
| COVER,SPEEDOMETER | 9 | 14025-1218 | 1 | ||
| COVER,TACHOMETER | 10 | 14025-1219 | 1 | ||
| COVER,PILOT BOX DAMPR | 11 | 14025-1070 | 1 | ||
| PLATE,SOCKET | 12 | 13169-1120 | 1 | ||
| SHOCK DAMPER,PILOT | 13 | 92075-1100 | 1 | ||
| DAMPER RUBBER,MET FIT | 14 | 25019-023 | 2 | ||
| SHOCK DAMPER,METER | 15 | 92075-1101 | 4 | ||
| NUT-CAP,5MM | 16 | 322N0500 | 4 | ||
| SCREW,4X10 | 17 | 92009-1039 | 2 | ||
| SCREW,TAPPING,4X10 | 18 | 92009-1040 | 2 | ||
| BRACKET,METER | 19 | 25008-1011 | 1 | ||
| NUT,8M/M | 20 | 317B0800 | 2 | ||
| WASHER SPRING 8MM | 21 | 461F0800 | 2 | ||
| DAMPER RUBBER | 22 | 92075-080 | 4 |
