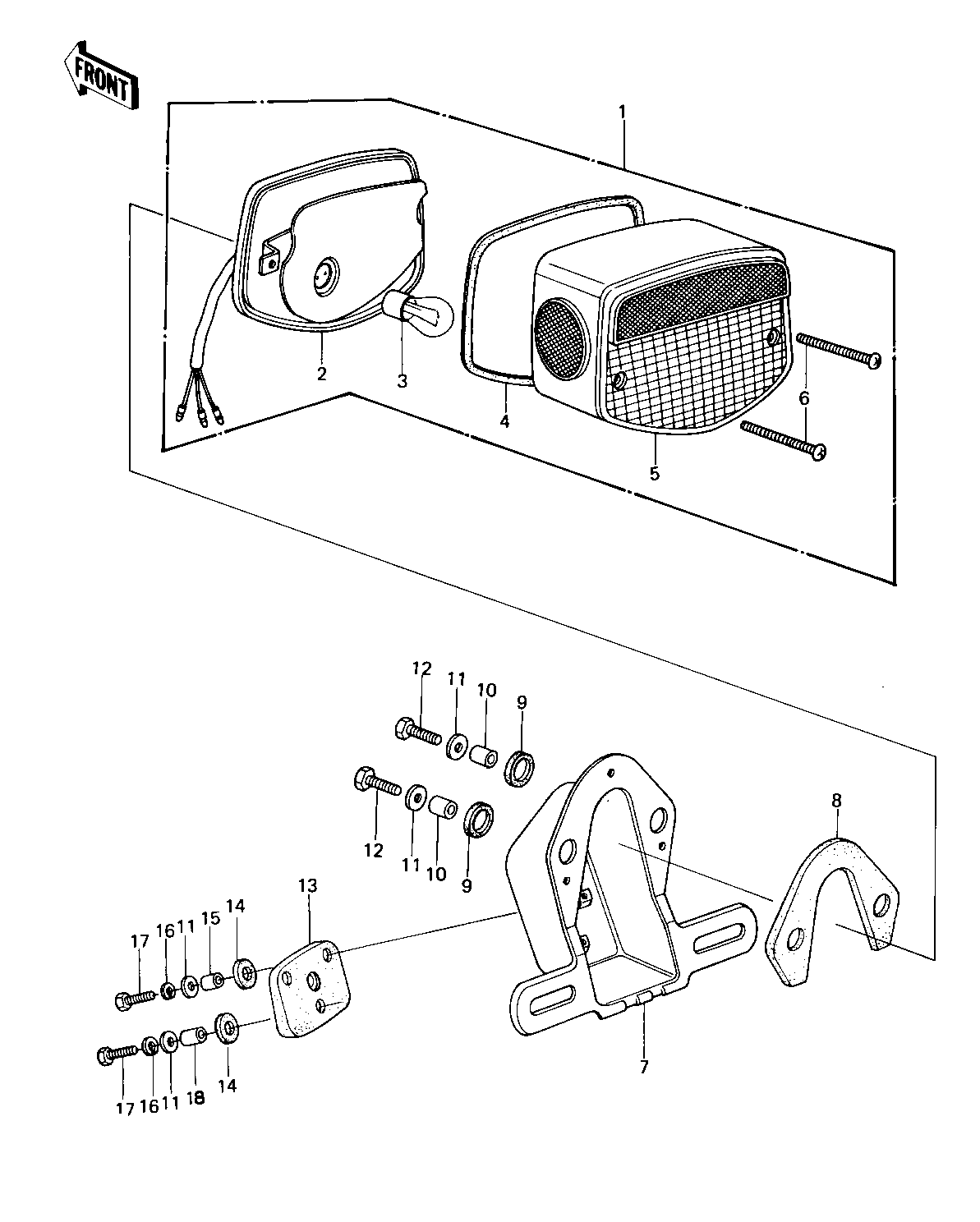

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TAIL LAMP UNIT 1 23025-064 1
.CASE,TAIL LIGHT 2 23027-041 1
.BULB,12V 32/3CP 3 92069-059 1
.GASKET,TAIL LENS 4 23028-021 1
.LENS,TAIL LAMP 5 23026-034 1
.SCREW-PAN-CROS 6 220R0460 2
BRACKET,LICENSE PLATE 7 23036-1028 1
DAMPER RUBBER 8 23066-023 1
DAMPER RUBBER 9 23066-020 2
COLLAR,6.8X10X8.5 10 92027-129 2
WASHER 6.5X20X1.6T 11 92022-125 5
BOLT-UPSET 12 112G0618 2
DAMPER,TAIL LAMP 13 92075-1055 1
DAMPER RUBBER,RR FEND 14 92075-121 3
COLLAR 6.8X10X14.5 15 92027-156 2
WASHER SPRING 6MM 16 461F0600 3
BOLT-UPSET 17 112G0625 3
COLLAR 18 92027-169 1
