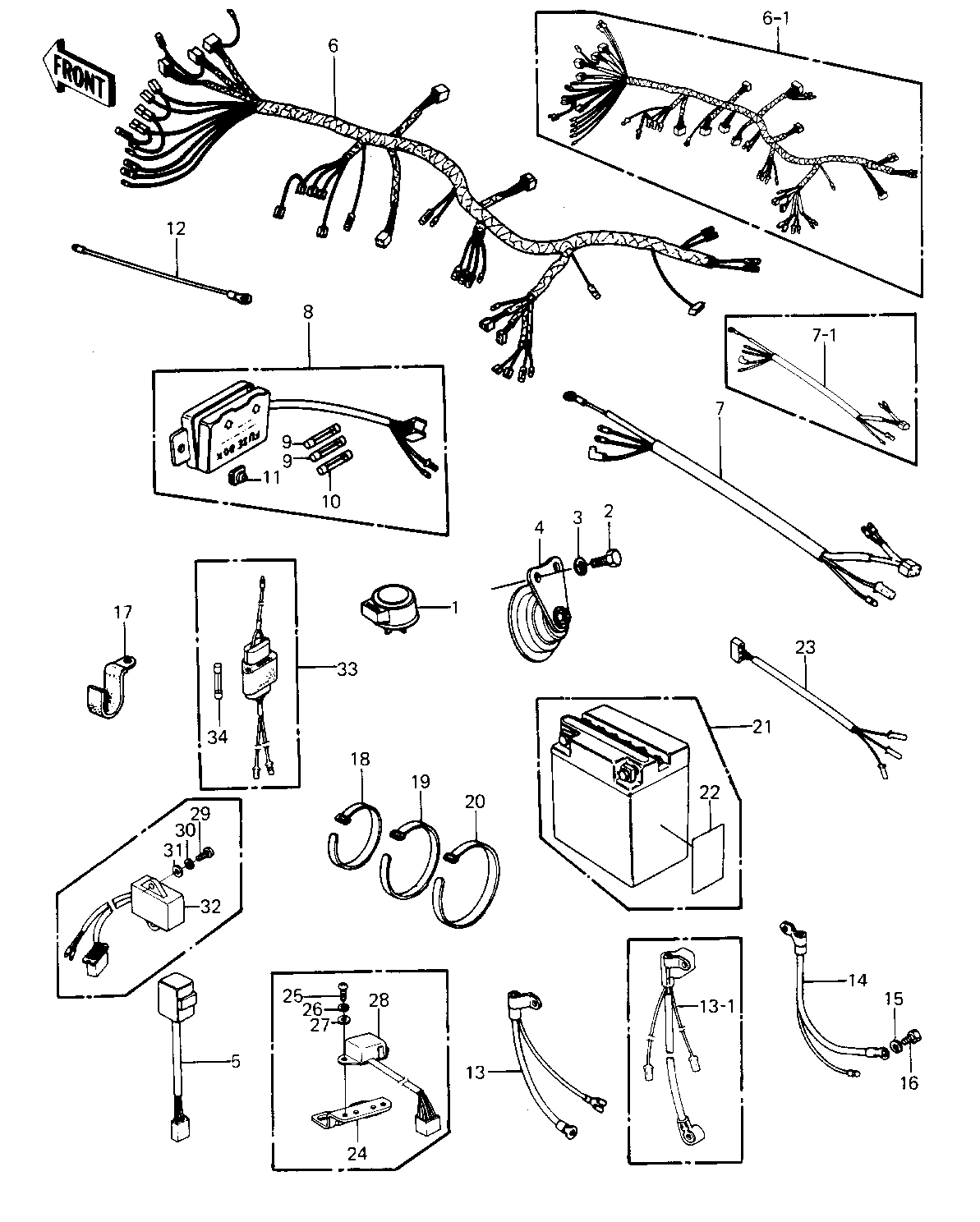

1981 LTD - CHASSIS ELECTRICAL EQUIPMENT ('80-'81 C1
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
RELAY-TURN SIGNAL | 1 | 27002-011 | 1 | ||
BOLT-SMALL-UPSET,8X16 | 2 | 115G0816 | 2 | ||
WASHER SPRING 8MM | 3 | 461F0800 | 2 | ||
HORN | 4 | 27003-1014 | 1 | ||
SWITCH,OUTAGE,INDICTR | 5 | 28019-001 | 1 | ||
WIRING HARNESS,MAIN | 6 | 26001-1162 | 1 | KZ550-C1 | |
HARNESS,MAIN | 6-1 | 26001-1175 | 1 | KZ550-C2 | |
WIRING HARNESS,SUB | 7 | 26001-1051 | 1 | KZ550-C1 | |
HARNESS,SUB | 7-1 | 26001-1202 | 1 | KZ550-C2 | |
FUSE ASSY | 8 | 26004-1002 | 1 | ||
FUSE 10A | 9 | 26006-003 | 3 | USE FOR 26004-1002 | |
FUSE-20A | 10 | 26006-005 | 2 | USE FOR 26004-1002 | |
DAMPER RUBBER,FUSE | 11 | 92075-279 | 1 | ||
WIRE,LEAD | 12 | 26011-095 | 2 | ||
WIRE-LEAD,BATTERY(T) | 13 | 26011-1155 | 1 | KZ550-C1 | |
WIRE-LEAD,BATTERY | 13-1 | 26011-1156 | 1 | KZ550-C2 | |
WIRE,LEAD,BATTERY(-) | 14 | 26011-1032 | 1 | ||
WASHER SPRING 6MM | 15 | 461F0600 | 1 | ||
BOLT,HEX HEAD,6MM | 16 | 92001-137 | 1 | ||
CLAMP,WIRING HARNESS | 17 | 92037-1069 | 3 | ||
BAND,SHORT | 18 | 92072-030 | 4 | ||
BAND,MIDDLE | 19 | 92072-031 | 3 | ||
BAND,LONG | 20 | 92072-032 | 2 | ||
FB BAT FB12A-A | 21 | 26012-1004 | 1 | ||
LABEL-WARNING,BATTERY | 22 | 56040-1036 | 1 | ||
WIRING HARNESS,TL LMP | 23 | 26002-046 | 1 | ||
BRACKET,RESERVE LIGHT | 24 | 11034-1850 | 1 | KZ550-C2 | |
SCREW PAN HEAD 6X20 | 25 | 220B0620 | 2 | KZ550-C2 | |
WASHER SPRING 6MM | 26 | 461F0600 | 2 | KZ550-C2 | |
WASHER PLAIN 6MM | 27 | 410B0600 | 2 | KZ550-C2 | |
SWITCH,RESERVE LIGHTI | 28 | 27010-1024 | 1 | KZ550-C2 | |
SCREW PAN HEAD 6X25 | 29 | 220B0625 | 2 | KZ550-C2 | |
WASHER SPRING 6MM | 30 | 461F0600 | 2 | KZ550-C2 | |
WASHER PLAIN 6MM | 31 | 410B0600 | 2 | KZ550-C2 | |
SWITCH,TURN SIGNAL OP | 32 | 27010-1016 | 1 | KZ550-C2 | |
FUSE-ASSY,ACCESSORY | 33 | 26004-1014 | 1 | KZ550-C2 | |
FUSE,10A,L=30M/M | 34 | 26006-1002 | 3 | USE FOR 26004-1014 |
RELAY-TURN SIGNAL | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X16 | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HORN | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,OUTAGE,INDICTR | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRING HARNESS,MAIN | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C1 |
HARNESS,MAIN | |
REF # | 6-1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
WIRING HARNESS,SUB | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C1 |
HARNESS,SUB | |
REF # | 7-1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
FUSE ASSY | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUSE 10A | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS | USE FOR 26004-1002 |
FUSE-20A | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | USE FOR 26004-1002 |
DAMPER RUBBER,FUSE | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE,LEAD | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(T) | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C1 |
WIRE-LEAD,BATTERY | |
REF # | 13-1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
WIRE,LEAD,BATTERY(-) | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,6MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BAND,SHORT | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BAND,MIDDLE | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BAND,LONG | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FB BAT FB12A-A | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,BATTERY | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRING HARNESS,TL LMP | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,RESERVE LIGHT | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
SCREW PAN HEAD 6X20 | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KZ550-C2 |
WASHER SPRING 6MM | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KZ550-C2 |
WASHER PLAIN 6MM | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KZ550-C2 |
SWITCH,RESERVE LIGHTI | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
SCREW PAN HEAD 6X25 | |
REF # | 29 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KZ550-C2 |
WASHER SPRING 6MM | |
REF # | 30 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KZ550-C2 |
WASHER PLAIN 6MM | |
REF # | 31 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KZ550-C2 |
SWITCH,TURN SIGNAL OP | |
REF # | 32 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
FUSE-ASSY,ACCESSORY | |
REF # | 33 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ550-C2 |
FUSE,10A,L=30M/M | |
REF # | 34 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS | USE FOR 26004-1014 |
