Parts Diagrams |

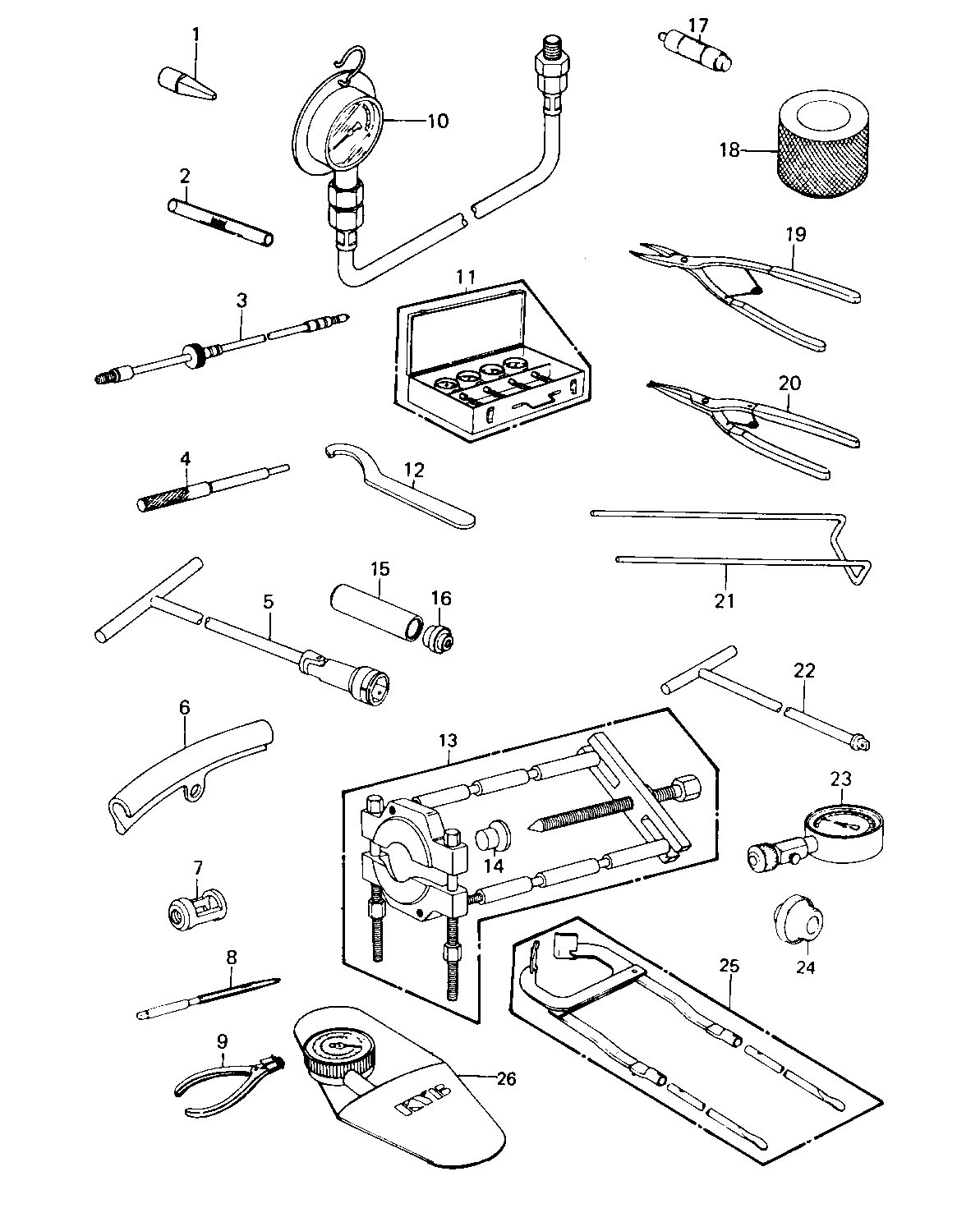

1981 LTD - SPECIAL SERVICE TOOLS "A" ('80-'81 C1/C2
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ADAPTER,FORK CYL HLDR | 1 | 57001-1011 | 1 | ||
GAUGE-FUEL LEVEL | 2 | 57001-1017 | 1 | ||
GAUGE-CMP ADPTR 12MM | 3 | 57001-1018 | 1 | ||
ARBOR,VALVE GUIDE | 4 | 57001-1021 | 1 | ||
WRENCH,SPARK PLUG | 5 | 57001-1024 | 1 | ||
PROTECTOR-BEAD | 6 | 57001-1063 | 1 | ||
ADAPTER,VALVE SPRING | 7 | 57001-1078 | 1 | ||
REAMER-VALVE GUIDE | 8 | 57001-1079 | 1 | ||
PLIERS-PISTON RING | 9 | 57001-115 | 1 | ||
*** N.L.A.*** (Canada) | 10 | 57001-125 | 1 | ||
*** N.L.A.*** (Canada) | 11 | 57001-127 | 1 | ||
57001-1100 (Canada) | 12 | 57001-134 | 1 | ||
PULLER,STEM BEARING | 13 | 57001-135 | 1 | ||
ADAPTER,STEM BEARING | 14 | 57001-136 | 1 | ||
DRIVER,STEM BEARING | 15 | 57001-137 | 1 | ||
57001-1129 (Canada) | 16 | 57001-138 | 1 | ||
*** N.L.A.*** (Canada) | 17 | 57001-139 | 1 | ||
*** N.L.A.*** (Canada) | 18 | 57001-141 | 1 | ||
PLIERS,CIRCLIP,INSIDE | 19 | 57001-143 | 1 | ||
PLIERS,CIRCLIP,OUTSID | 20 | 57001-144 | 1 | ||
57001-1336 (Canada) | 21 | 57001-149 | 1 | ||
HANDLE,FORK CLY HOLDR | 22 | 57001-183 | 1 | ||
GAUGE COMPRESSION | 23 | 57001-221 | 1 | ||
*** N.L.A.*** (Canada) | 24 | 57001-296 | 1 | ||
BREAKER-BEAD,ASSY | 25 | 57001-1072 | 1 | ||
GAUGE,AIR | 26 | 52005-1003 | 1 |
