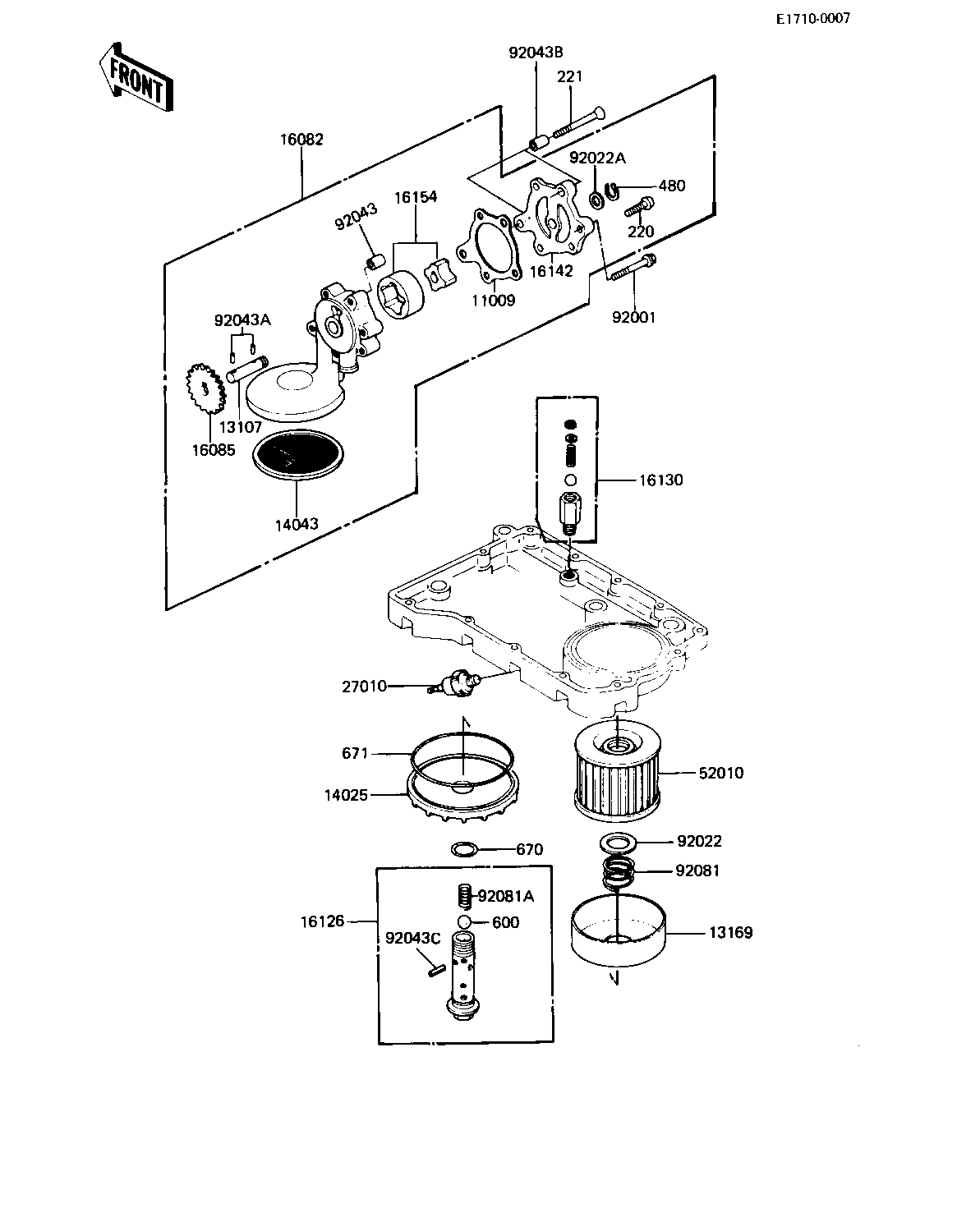

1983 LTD - OIL PUMP/OIL FILTER ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PUMP COVER | 11009 | 16145-004 | 1 | ||
| SHAFT,OIL PUMP | 13107 | 16086-004 | 1 | ||
| PLATE,OIL FILTER | 13169 | 13169-1110 | 1 | ||
| COVER,OIL FILTER | 14025 | 16101-004 | 1 | ||
| STRAINER,OIL PUMP | 14043 | 16111-004 | 1 | ||
| OIL PUMP ASSY | 16082 | 16082-064 | 1 | ||
| GEAR,OIL PUMP,57T | 16085 | 16085-025 | 1 | ||
| VALVE,OIL FILTER | 16126 | 16126-1108 | 1 | ||
| RELEAF VALVE ASSY | 16130 | 16130-1001 | 1 | ||
| COVER,OIL PUMP | 16142 | 16142-005 | 1 | ||
| ROTOR ASSY,OIL PUMP | 16154 | 16154-003 | 1 | ||
| SWITCH,OIL PRESSURE | 27010 | 27010-1155 | 1 | ||
| FILTER,OIL | 52010 | 16099-003 | 1 | ||
| BOLT,HEX HEAD,6X45 | 92001 | 92001-165 | 1 | ||
| WASHER,20.5X30X1.0 | 92022 | 92022-1012 | 1 | ||
| WASHER,PLAIN | 92022A | 92022-311 | 1 | ||
| PIN,DOWEL,8X10 | 92043 | 92043-1302 | 1 | ||
| PIN,DOWEL | 92043A | 92042-041 | 2 | ||
| PIN,DOWEL,6.2X8X28 | 92043B | 92042-050 | 2 | ||
| SPRING PIN | 92043C | 92043-111 | 1 | ||
| SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
| SPRING | 92081A | 92081-109 | 1 | ||
| SCREW PAN HEAD 6X22 | 220 | 220B0622 | 3 | ||
| SCREW,CNTSNK HD,6X55 | 221 | 221B0655 | 2 | ||
| CIRCLIP,11MM | 480 | 480J1100 | 1 | ||
| BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
| "0" RING,16MM | 670 | 670B2016 | 1 | ||
| "0" RING,90MM | 671 | 671B2590 | 1 |
| GASKET,OIL PUMP COVER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OIL PUMP | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,OIL FILTER | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,OIL FILTER | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRAINER,OIL PUMP | |
| REF # | 14043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL PUMP ASSY | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OIL PUMP,57T | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,OIL FILTER | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEAF VALVE ASSY | |
| REF # | 16130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,OIL PUMP | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR ASSY,OIL PUMP | |
| REF # | 16154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,OIL PRESSURE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER,OIL | |
| REF # | 52010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X45 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.5X30X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,8X10 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6.2X8X28 | |
| REF # | 92043B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING PIN | |
| REF # | 92043C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,OIL FILTER | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X22 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,CNTSNK HD,6X55 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,11MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/8' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,16MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,90MM | |
| REF # | 671 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
