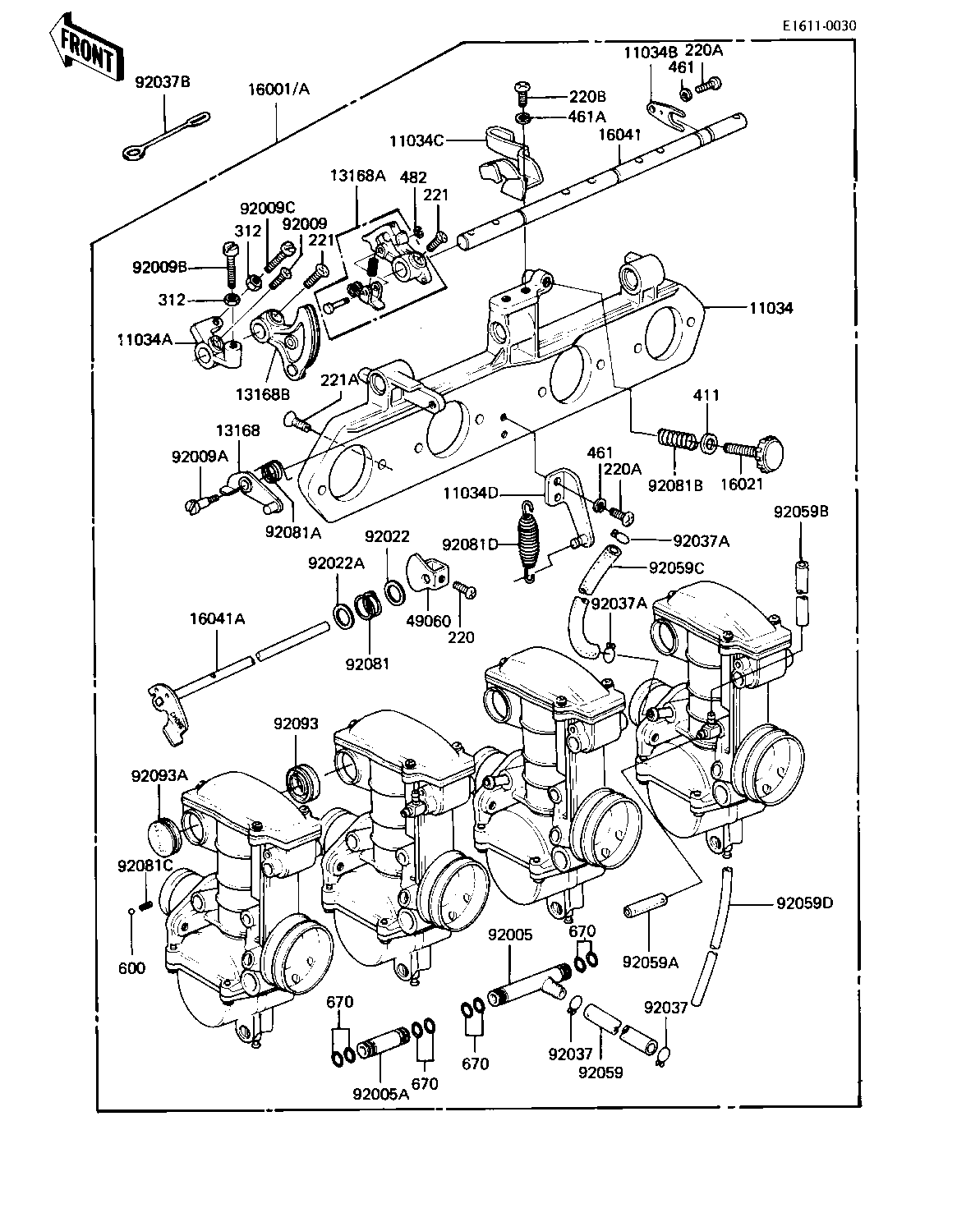

1983 LTD - CARBURETOR ASSY ('82-'83 C3/C4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CARBURETOR 11034 11034-1588 1
BRACKET,THROTTLE STOP 11034A 11034-1590 1
PLATE,THROTTLE SHAFT 11034B 11034-1591 1
BRACKET,THROTTLE CABL 11034C 11034-1592 1
BRACKET,THROTTLE RETN 11034D 11034-1593 1
LEVER ASSY,TIMING 13168 13168-1053 1
LEVER,ASSY,THROTTLE 13168A 13168-1054 1
LEVER,ASSY,THROTTLE 13168B 13168-1055 1
CARBURETOR ASSY, 16001 16001-1210 1 US
SCREW,THROTTLE STOP 16021 16021-1017 1
SHAFT,THROTTLE 16041 16041-1012 1
SHAFT,CHOKE LEVER 16041A 16041-1021 1
CAM,CHOKE 49060 49060-1002 1
"T"JOINT,FUEL 92005 92005-1020 1
JOINT,FUEL 92005A 92005-1021 2
SCREW.CNTSNK HD,4X12 92009 92009-1080 1
SCREW,TIMING LEVER 92009A 92009-1081 1
SCREW,TIMING LEVER 92009B 92009-1082 1
SCREW,THROTTLE STOP 92009C 92009-1083 1
WASHER,CHOKE LEVER 92022 92022-1168 1
WASHER,CHOKE LEVER 92022A 92022-1169 1
CLAMP,FUEL HOSE 92037 92037-1158 2
CLAMP,NEGATIVE PRESSU 92037A 92037-1159 2
CLAMP,OVER FLOW PIPE 92037B 92037-134 1
HOSE,FUEL,7X12X180 92059 92059-1098 1
HOSE,AIR VENT,4.5X30 92059A 92059-1099 2
HOSE,AIR VENT,4.5X300 92059B 92059-1100 2
HOSE,NEGATIVE PRESSUR 92059C 92059-1101 1
HOSE,OVERFLOW,3.5X550 92059D 92059-1102 4
SPRING,CHOKE LEVER 92081 92081-1191 1
SPRING,TIMING LEVER 92081A 92081-1192 1
SPRING,ADJUST SCREW 92081B 92081-1193 1
SPRING, CHOKE LEVER 92081C 92081-1195 1
SPRING,THROTTLE RETRN 92081D 92081-1381 1
DUST SEAL,THROTTLE 92093 92093-1033 6
CAP,THROTTLE SHAFT 92093A 92093-1034 2
SCREW PAN HEAD 4X8 220 220B0408 1
SCREW-PAN-CROS 220A 220B0514 3
SCREW PAN HEAD 6X14 220B 220B0614 2
SCREW,CNTSNK HD,5X14 221 221B0514A 2
SCREW CNTSNK HD 6X16 221A 221B0616 8
NUT 5MM 312 312B0500 2
WASHER PLAIN 6MM 411 411B0600 1
WASHER SPRING 5MM 461 461F0500 3
WASHER SPRING 6MM 461A 461F0600 2
CIRCLIP,3M/M 482 482J3000 1
BALL STEEL 5/32' 600 600A0500 1
"O" RING,7MM 670 670B1507 12
