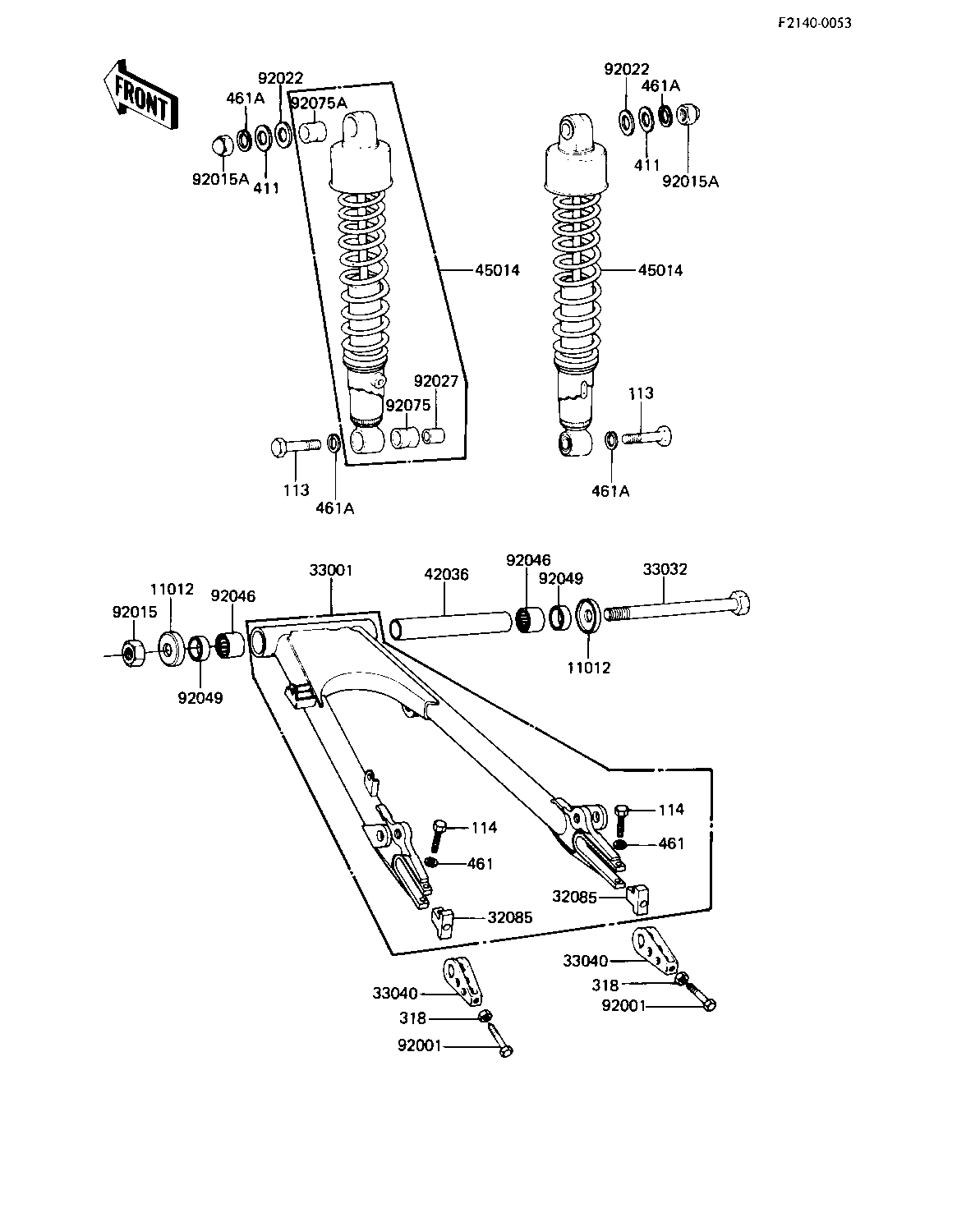

1983 LTD - SWING ARM/SHOCK ABSORBERS ('82-'83 C3/C4

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1029 2
STOPPER,CHAIN ADJUST 32085 33044-002 2
ARM-COMP-SWING 33001 33001-1097 1
SHAFT,SWING ARM 33032 33032-1004 1
ADJUSTER,CHAIN 33040 33040-056 2
SLEEVE,SWING ARM 42036 42036-1018 1
SHOCK ABSBR RR 45014 45014-1147 2
BOLT,8X50 92001 92001-1399 2
NUT-LOCK,14MM 92015 92019-011 1
NUT SHOCK ABSORBER 92015A 92020-003 2
WASHER-PLN,10X22X3.2 92022 92022-176 2
BUSHING,SHOCK ABSORB 92027 45016-008 2
BEARING-NEEDLE,HK2216 92046 92046-1115 2
OIL SEAL,MHA22284 92049 92049-1059 2
BUSHING, SHCK ABS RUB 92075 45017-012 2
BUSHING,SHCK ABS RUB 92075A 45017-015 2
BOLT HEX HEAD 10X35 113 113N1035 2
BOLT,SMALL UPSET 114 115G0835 2
NUT 8MM 318 318B0800 2
WASHER PLAIN 10MM 411 411B1000 2
WASHER SPRING 8MM 461 461F0800 2
WASHER SPRING 10MM 461A 461F1000 4
