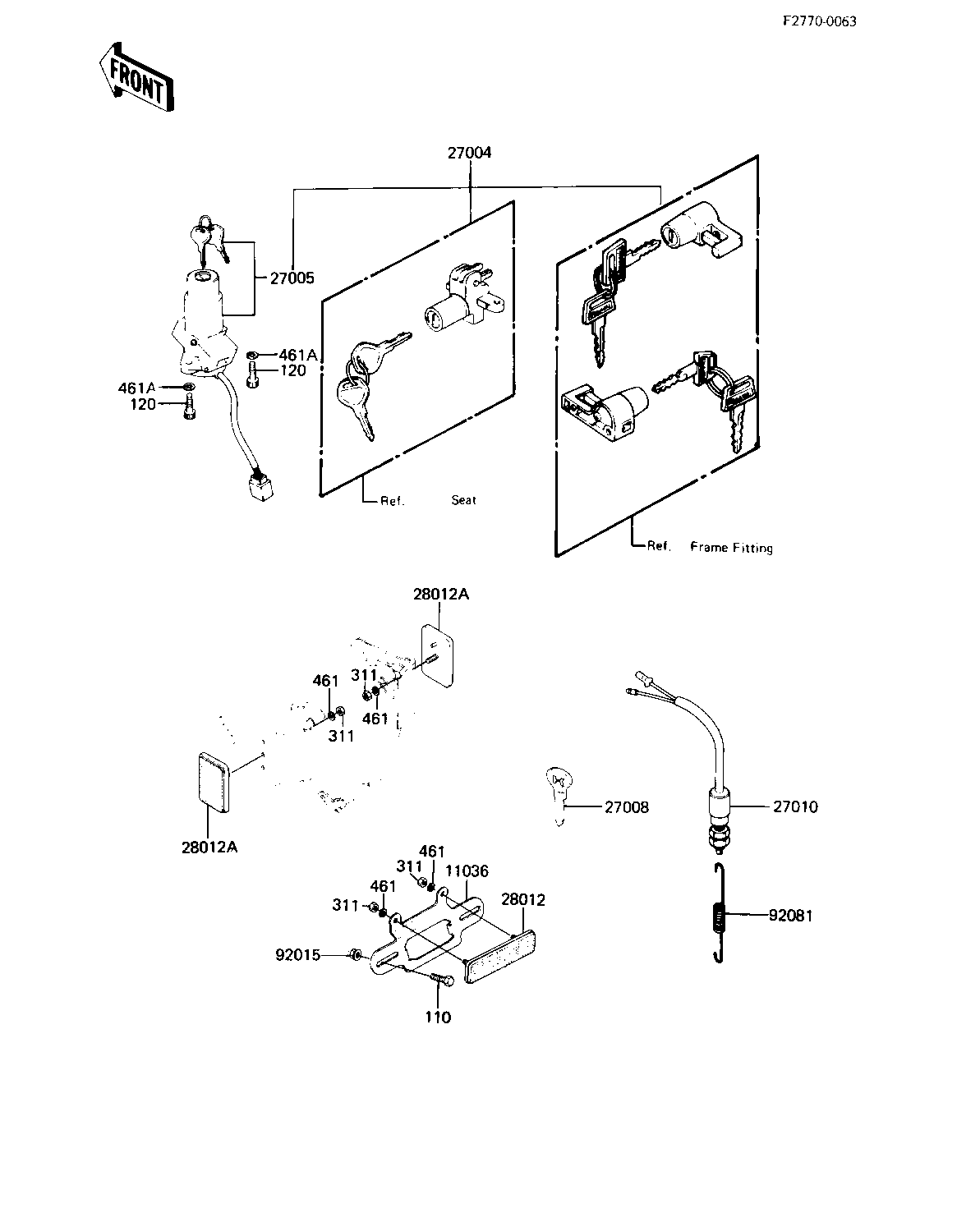

1983 LTD - IGNITION SWITCH/LOCKS/REFLECTORS ('82-'8

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,RR 11036 11036-1150 1
SWITCH-ASSY 27004 27004-5150 1
SWITCH-ASSY-IGNITION 27005 27005-5024 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
SWITCH-BRAKE LAMP 27010 27010-017 1
REFLECTOR,REAR REFLEX 28012 28012-1005 1
REFLECTOR-REFLEX 28012A 28012-1009 2
NUT-6MM 92015 92015-1078 2
SPRING,BRAKE LAMP SN 92081 27011-017 1
BOLT-UPSET,6X12 110 112G0612 2
BOLT-SOCKET,6X16,BLAC 120 120S0616 2
NUT,5MM 311 311B0500 4
WASHER SPRING 5MM 461 461F0500 4
WASHER SPRING 6MM 461A 461F0600 2
