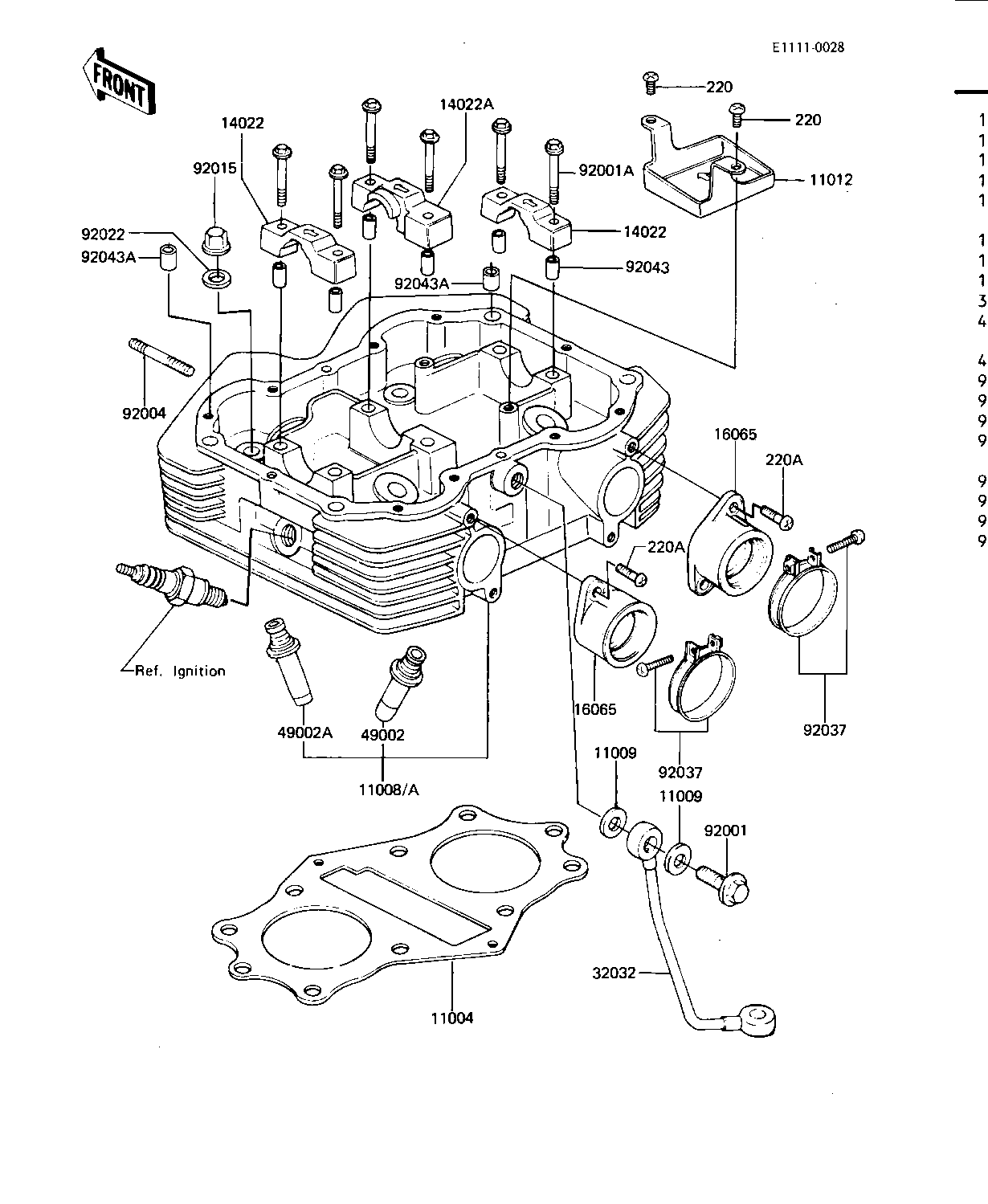

1982 LTD Belt - CYLINDER HEAD (KZ440-D2/D3/D4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER HEAD | 11004 | 11004-1020 | 1 | ||
| HEAD-COMP-CYLINDER,SI | 11008A | 11008-1034 | 1 | ||
| GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 2 | ||
| CAP,CYLINDER HEAD OIL | 11012 | 11012-1027 | 1 | ||
| CAP,BRG,HEAD,L.H&R.H | 14022 | 14022-1002 | 2 | ||
| CAP,BRG.HEAD,CENTER | 14022A | 14022-1003 | 1 | ||
| HOLDER,CARBURETOR | 16065 | 16065-1027 | 2 | ||
| PIPE,OIL | 32032 | 32032-1084 | 1 | ||
| GUIDE,INLET VALVE | 49002 | 12013-003 | 2 | ||
| GUIDE,EXHAUST VALVE | 49002A | 49002-1010 | 2 | ||
| BOLT,BANJO,10X25 | 92001 | 92001-1017 | 1 | ||
| BOLT,FLANGED,6X38 | 92001A | 92001-1105 | 6 | ||
| STUD,6X46 | 92004 | 92004-049 | 4 | ||
| NUT,CYLINDER HEAD | 92015 | 92015-076 | 8 | ||
| WASHER,10.5X22X1.6 | 92022 | 92022-1005 | 8 | ||
| CLAMP,53M/M | 92037 | 92037-201 | 2 | ||
| PIN-DOWEL | 92043 | 92042-007 | 6 | ||
| PIN,DOWEL,10X8.2X14 | 92043A | 92043-1037 | 2 | ||
| SCREW PAN HEAD 6X10 | 220 | 220B0610 | 2 | ||
| SCREW PAN HEAD 6X16 | 220A | 220B0616 | 4 |
