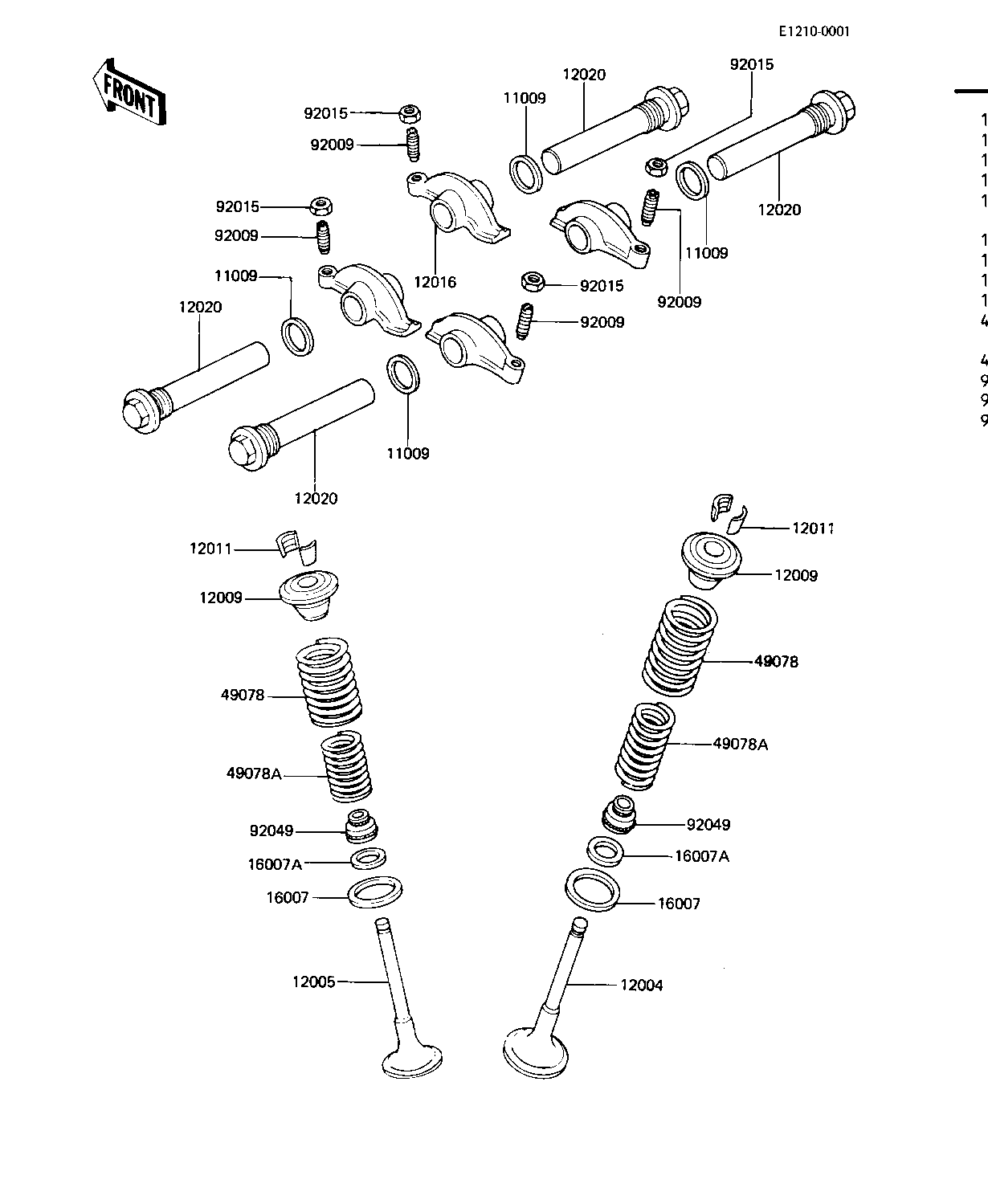

1982 LTD Belt - ROCKER ARMS/VALVES (KZ440-D2/D3/D4)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,16X19.7X1.5 11009 11009-1106 4
VALVE,INTAKE 12004 12004-1008 2
VALVE,EXHAUST 12005 12005-1007 2
RETAINER,VALVE SPRING 12009 12009-006 4
SPLIT KEEPER 12011 12011-004 8
ARM,ROCKER 12016 12016-1001 4
SHAFT,ROCKER 12020 12020-1001 4
SEAT,VLV OUTER SPRING 16007 12010-005 4
SEAT,VLV INNER SPRING 16007A 12010-006 4
SPRING,OUTER VALVE 49078 12007-013 4
SPRING,INNER VALVE 49078A 12007-014 4
SCREW,ADJUSTING 92009 92009-1032 4
NUT,ROCKER ARM FITTNG 92015 92016-061 4
OIL SEAL,RV37129.5 92049 92049-016 4
