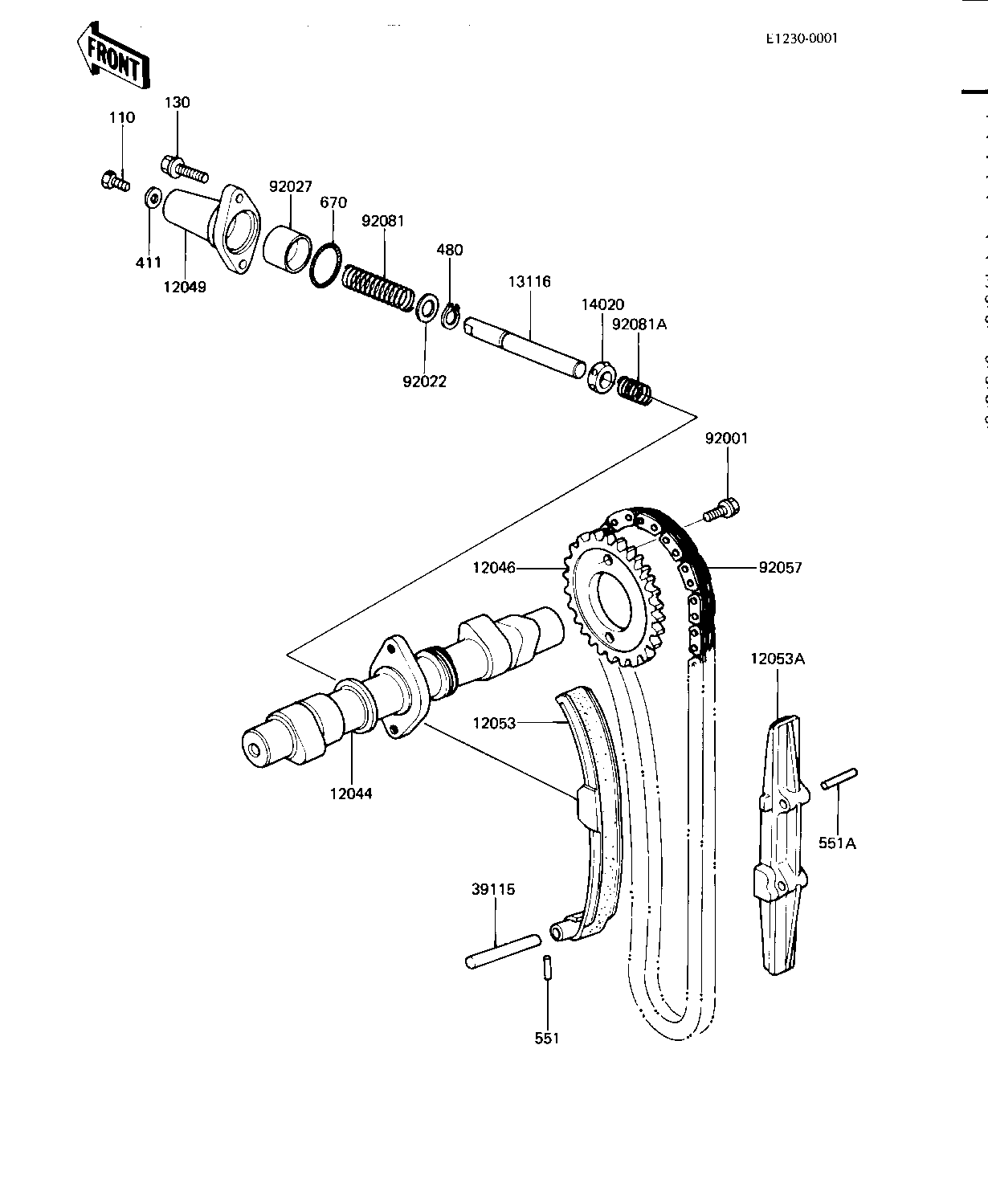

1982 LTD Belt - CAMSHAFT/CHAIN/TENSIONER ('81-'83 D2/D3
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT,VALVE | 12044 | 12044-5001 | 1 | ||
SPROCKET,CAM,46T | 12046 | 12046-1022 | 1 | ||
BRACKET,TENSIONER | 12049 | 12049-1010 | 1 | ||
GUIDE,CHAIN,FRONT | 12053 | 12053-1041 | 1 | ||
GUIDE,CHAIN,REAR | 12053A | 12053-1042 | 1 | ||
ROD,PUSH,TENSIONER | 13116 | 13116-1022 | 1 | ||
RETAINER | 14020 | 14020-1002 | 1 | ||
SHAFT,CHAIN GUIDE | 39115 | 39115-1001 | 1 | ||
BOLT,SPROCKET FITTING | 92001 | 92003-208 | 2 | ||
WASHER,10X14.5X1.0 | 92022 | 92022-1181 | 1 | ||
COLLAR,TENSIONER | 92027 | 92027-1240 | 1 | ||
CHAIN,CAMSHAFT,114L | 92057 | 92057-1038 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1206 | 1 | ||
SPRING,TENSIONER | 92081A | 92081-1207 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 1 | ||
BOLT,FLANGED,6X20 | 130 | 130G0620 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
CIRCLIP,10M/M | 480 | 480J1000 | 1 | ||
PIN,DOWEL,3X25 | 551 | 551A0325 | 1 | ||
PIN,DOWEL,5X32 | 511A | 551A0532 | 2 | ||
"0" RING,21MM | 670 | 670B2021 | 1 |
