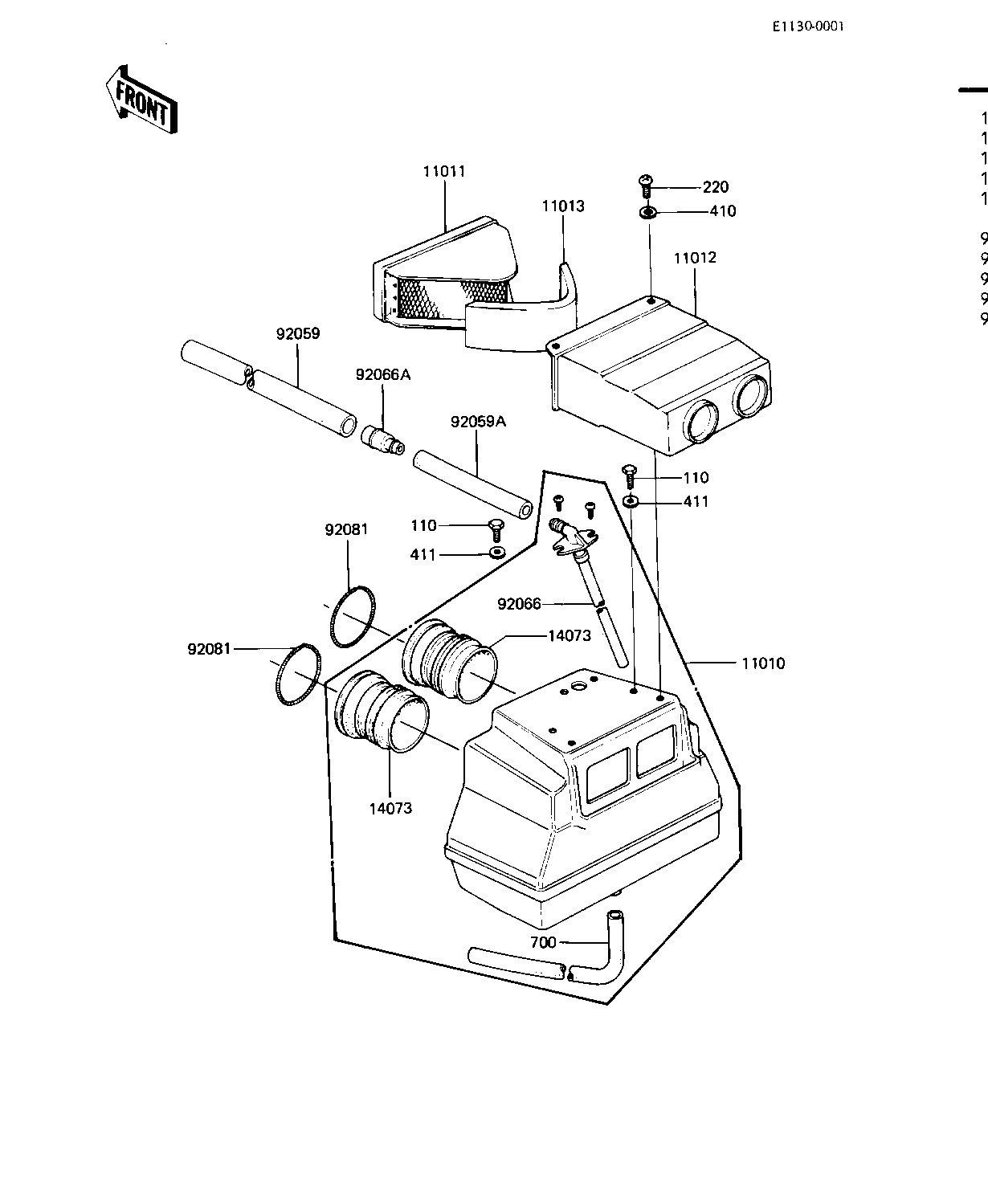

1982 LTD Belt - AIR CLEANER ('81-'83 D2/D3/D4/D5)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-5042 1
CASE,ELEMENT 11011 11011-1043 1
CAP,AIR CLEANER 11012 11012-1086 1
ELEMENT,AIR CLNR 11013 11013-1027 1
DUCT,AIR CLEANER 14073 14073-1034 2
TUBE,14X20X135,BRETHR 92059 92059-1094 1
TUBE,7.5X12.5X155,RBR 92059A 92059-1097 1
PLUG,BREATHER 92066 92066-1046 1
PLUG,TUBE FITTING 92066A 92066-1047 1
SPRING 92081 92081-1177 2
BOLT-UPSET,6X12 110 112G0612 2
SCREW PAN HEAD 6X16 220 220B0616 2
WASHER PLAIN 6MM 410 410B0600 2
WASHER PLAIN 6MM 411 411B0600 2
TUBE-PVC,6X250 700 700Q06250 1
