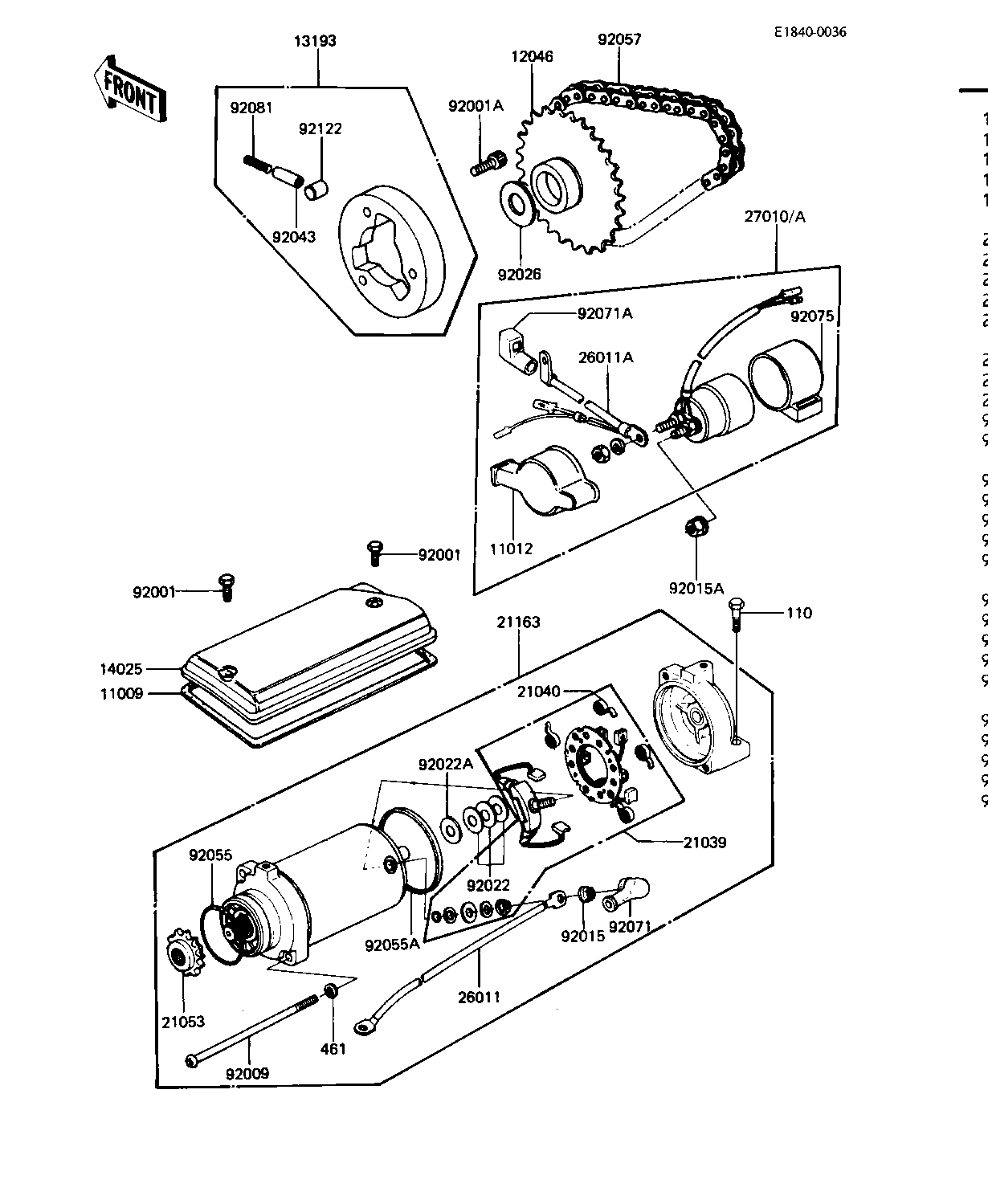

1983 LTD Belt - STARTER MOTOR/STARTER CLUTCH ('81-'83 D2

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,STARTER COVER 11009 11009-1006 1
COVER MAGNETIC SWITCH 11012 21141-004 1
SPROCKET,ONWAY CLUTCH 12046 12046-1030 1
CLUTCH ASSY,STARTER 13193 13193-1001 1
COVER,STARTER 14025 14025-1284 1
BRUSH SET,CARBON 21039 21039-1005 1
SPRING,CARBON BRUSH 21040 21040-1002 4
SPROCKET STARTNG MOT 21053 21053-002 1
MOTOR ASSY,STARTER 21163 21163-1011 1
WIRE STRTER MOT LEAD 26011 26010-035 1
WIRE LEAD MAG SWITCH 26011A 26011-1107 1
SWITCH,MAGNETIC 27010A 27010-1078 1
BOLT,6X10 92001 92001-1151 2
BOLT 92001A 120P0816 3
SCREW,PAN HEAD,6X119 92009 92009-1097 2
NUT-6MM 92015 92015-1078 2
NUT,LOCK 6MM 92015A 92017-014 1
WASHER,THRUST,0.2T 92022 21025-011 4
WASHER,THRUST,0.8T 92022A 92022-1132 1
SPACER,25X40X1 92026 92026-1004 1
PIN 92043 92043-087 3
"0" RING,42.8MM 92055 21027-005 1
"0" RING,STARTER MOTR 92055A 92055-1086 1
CHAIN,DYNAMO 92057 92057-1009 1
CAP,STARTING MOTOR 92071 21017-020 1
CAP,MAG SWTCH TERMNL 92071A 21017-021 1
DAMPER MAG SWITCH SHK 92075 21064-002 1
SPRING 92081 92081-110 3
ROLLER 92122 92122-004 3
BOLT-UPSET 110 112G0625 2
WASHER SPRING 6MM 461 461F0600 2
