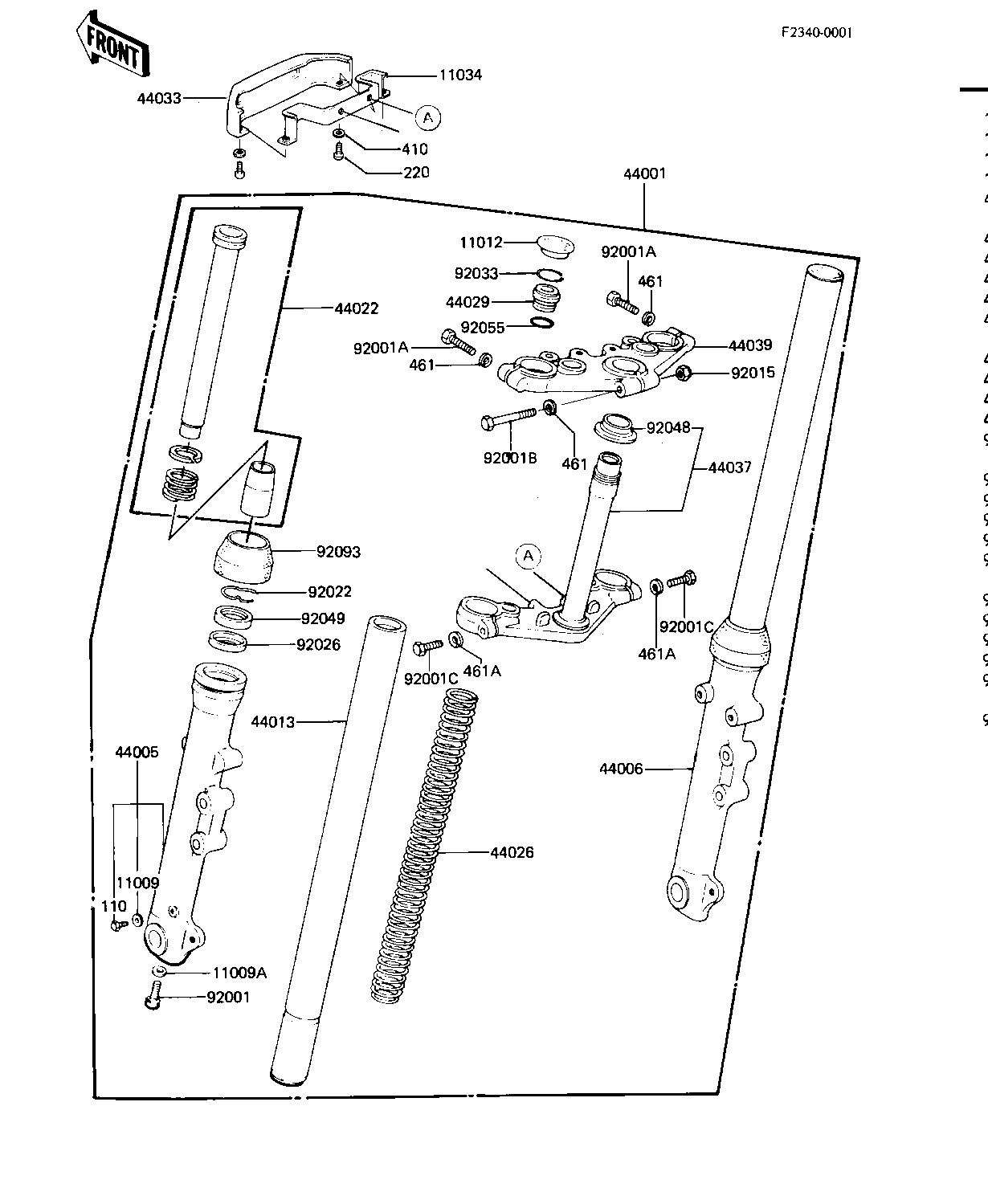

1982 LTD Belt - FRONT FORK (KZ440-D2/D3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,DRAIN PLUG | 11009 | 44045-047 | 2 | ||
GASKET,FORK CYL BOLT | 11009A | 44045-051 | 2 | ||
CAP,RUBBER,FORK TOP | 11012 | 11012-1021 | 2 | ||
BRACKET,FORK COVER | 11034 | 11034-1698 | 1 | ||
FORK-FRONT | 44001 | 44001-1214 | 1 | ||
TUBE,LH,FORK OUTER | 44005 | 44005-1029 | 1 | ||
TUBE,RH,FORK OUTER | 44006 | 44006-1029 | 1 | ||
TUBE,FORK INNER | 44013 | 44013-1025 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1028 | 2 | ||
SPRING,FORK INNER | 44026 | 44026-1037 | 2 | ||
GUIDE,SPRING | 44029 | 44029-022 | 2 | ||
COVER,FORK | 44033 | 44033-1042 | 1 | ||
STEM,STEERING | 44037 | 44037-1014 | 1 | ||
HEAD,STEERING STEM | 44039 | 44039-1023 | 1 | ||
BOLT,FORK CYLINDER | 92001 | 44041-078 | 2 | ||
BOLT,HEX HEAD,8X40 | 92001A | 92001-1063 | 2 | ||
BOLT,HEX HEAD,8X55 | 92001B | 92001-1064 | 1 | ||
BOLT,HEX HEAD 10X35 | 92001C | 92001-1252 | 2 | ||
NUT,LOCK,8MM | 92015 | 92015-1124 | 1 | ||
RING,OIL SEAL STOPER | 92022 | 44043-057 | 2 | ||
SPACER,FORK | 92026 | 92026-1005 | 2 | ||
CIRCLIP | 92033 | 44044-023 | 2 | ||
CONE STRNG STEM BERNG | 92048 | 92047-006 | 1 | ||
OIL SEAL,FORK | 92049 | 92049-1077 | 2 | ||
"O" RING | 92055 | 44046-025 | 2 | ||
DUST SHIELD,FORK | 92093 | 92093-1063 | 2 | ||
BOLT HEX HEAD 6X8 | 110 | 110B0608 | 2 | ||
SCREW PAN HEAD 4X10 | 220 | 220B0410 | 2 | ||
WASHER PLAIN 4MM | 410 | 410B0400 | 2 | ||
WASHER SPRING 8MM | 461 | 461F0800 | 3 | ||
WASHER SPRING 10MM | 461A | 461F1000 | 2 |
