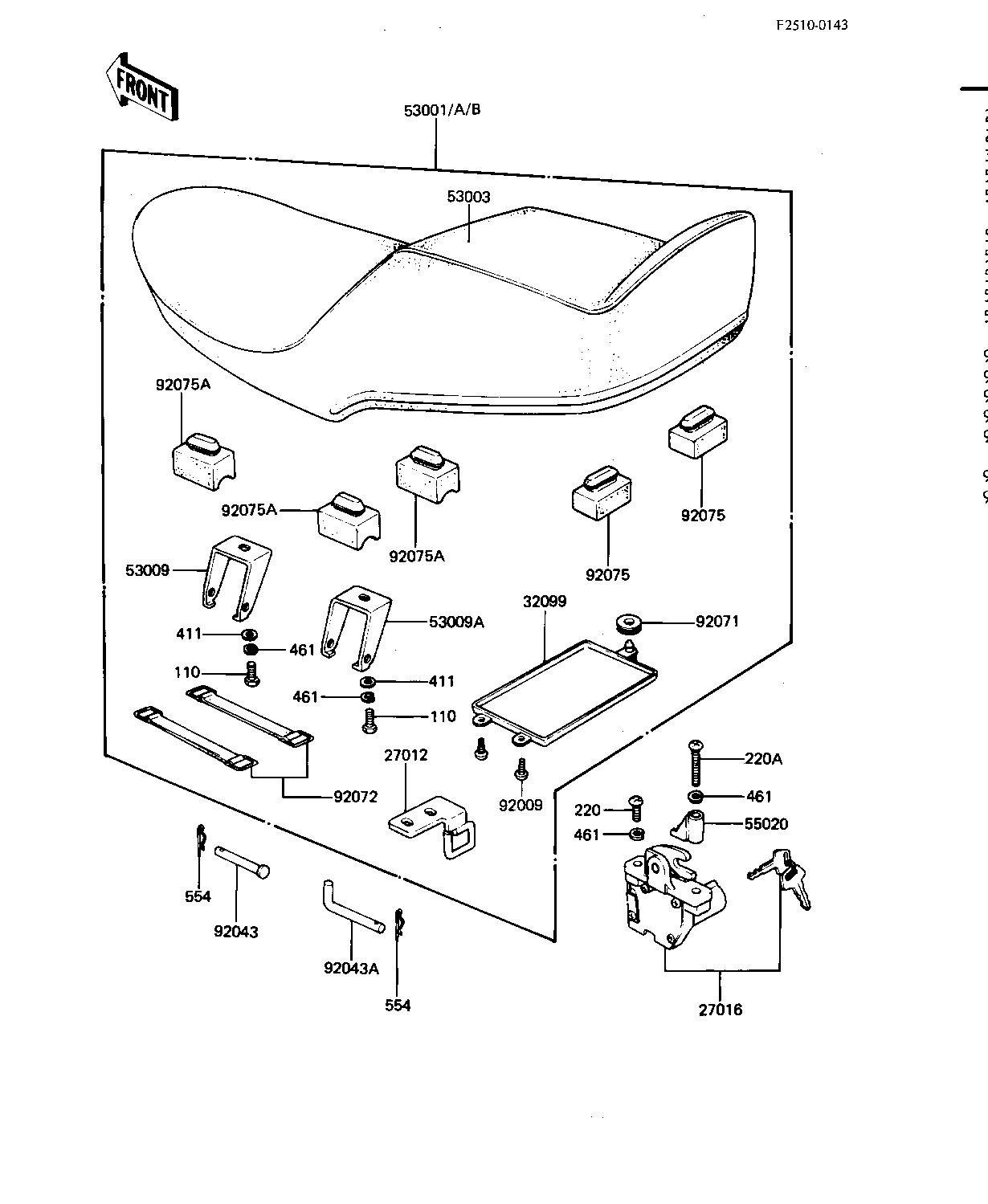

1981 LTD Belt - SEAT ('81-'83 D2/D3/D4/D5)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOOK,SEAT | 27012 | 27012-1011 | 1 | ||
LOCK ASSY,SEAT HELMET | 27016 | 27016-5028 | 1 | ||
CASE | 32099 | 32099-011 | 1 | ||
SEAT-ASSY,DUAL | 53001 | 53001-1124 | 1 | ||
HINGE, REAR | 53009 | 53009-026 | 1 | ||
HINGE,SEAT | 53009A | 53009-1017 | 1 | ||
GUARD,SEAT LOCK | 55020 | 55020-1031 | 1 | ||
SCREW | 92009 | 92009-1043 | 2 | ||
PIN, DUAL SEAT PIVOT | 92043 | 53011-006 | 1 | ||
PIN,SEAT PIVOT | 92043A | 92043-1064 | 1 | ||
GROMMET | 92071 | 92071-056 | 1 | ||
BAND | 92072 | 92072-1006 | 2 | ||
DAMPER RUBBER | 92075 | 92075-099 | 2 | ||
DAMPER RUBBER-SEAT | 92075A | 92075-156 | 3 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 4 | ||
SCREW PAN HEAD 6X12 | 220 | 220B0612 | 1 | ||
SCREW PAN HEAD 6X35 | 220A | 220B0635 | 1 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 6 | ||
PIN,SNAP | 554 | 554A0600 | 2 |
HOOK,SEAT | |
REF # | 27012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK ASSY,SEAT HELMET | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAT-ASSY,DUAL | |
REF # | 53001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HINGE, REAR | |
REF # | 53009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HINGE,SEAT | |
REF # | 53009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,SEAT LOCK | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN, DUAL SEAT PIVOT | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,SEAT PIVOT | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER-SEAT | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X35 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PIN,SNAP | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
